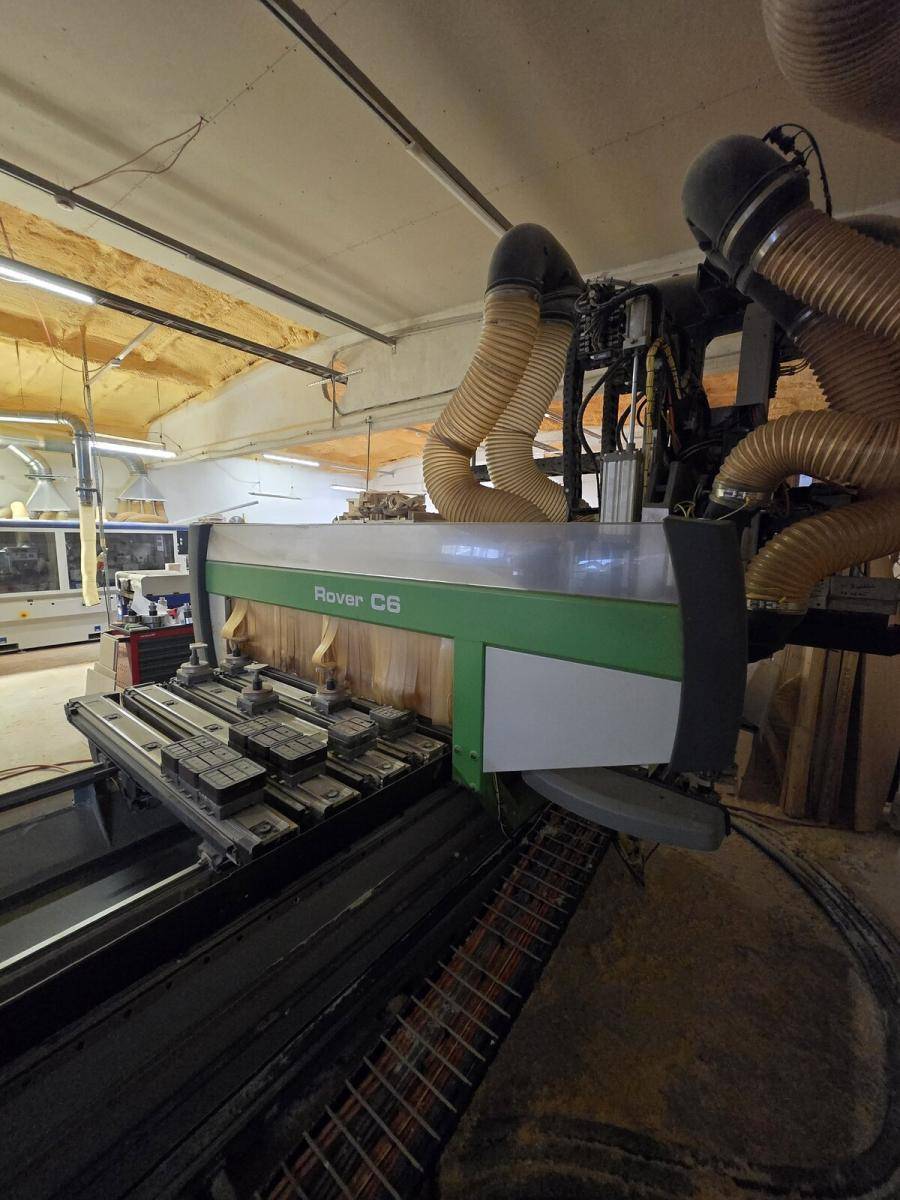

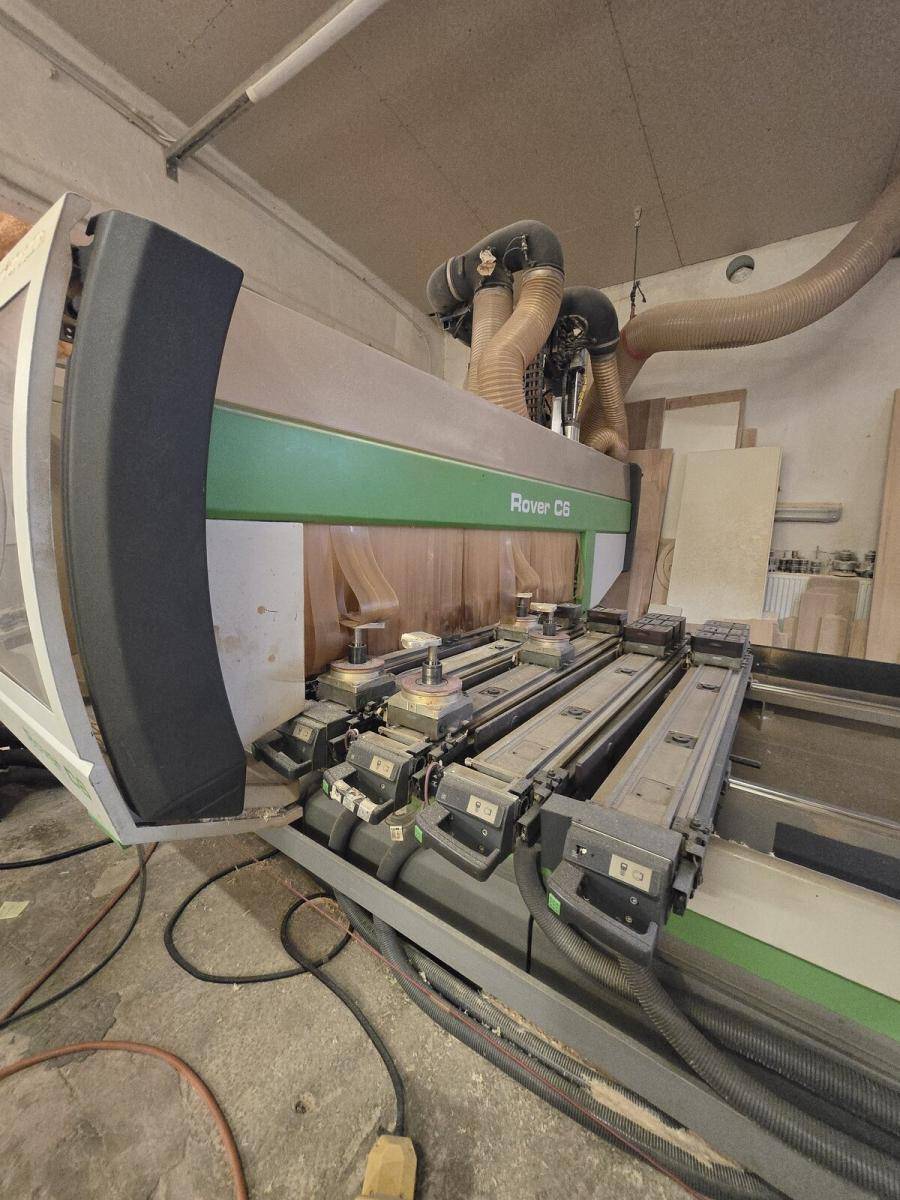

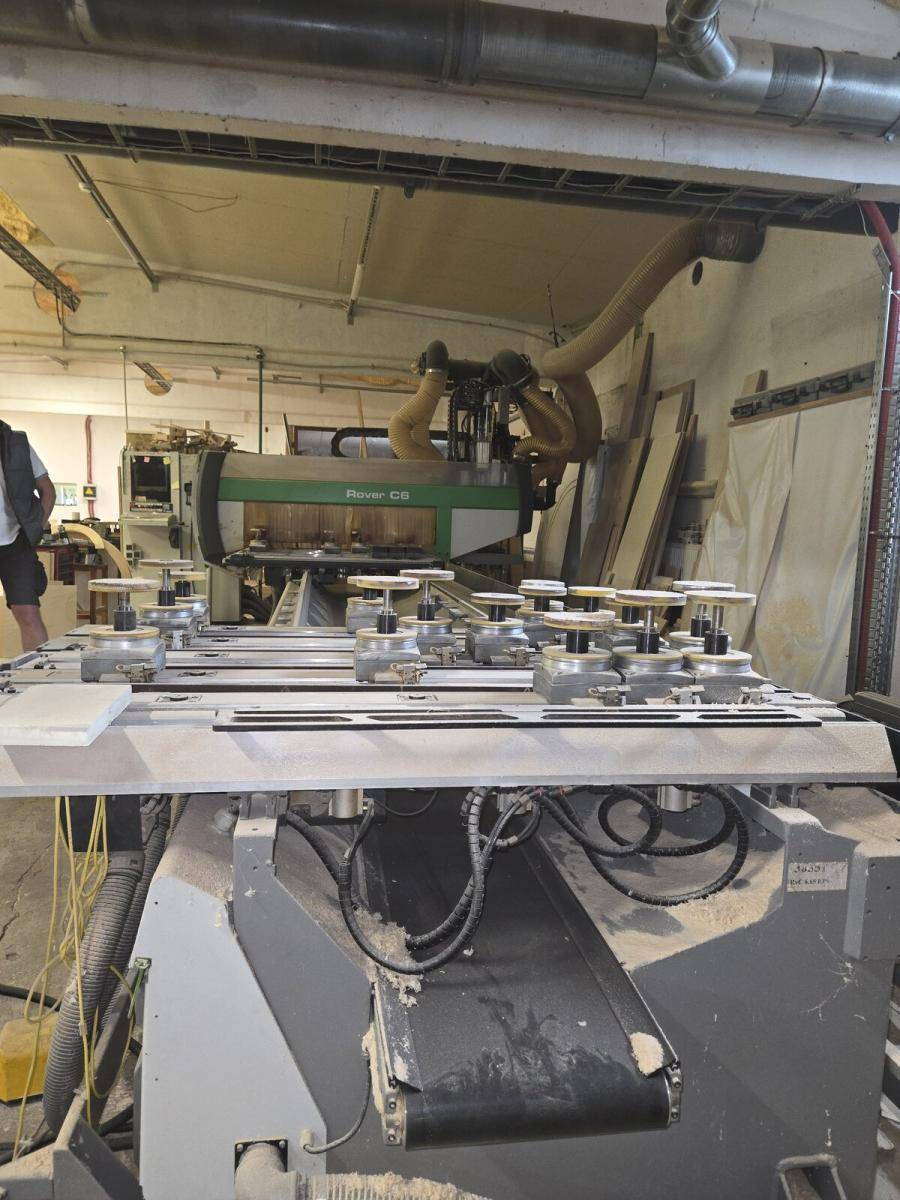

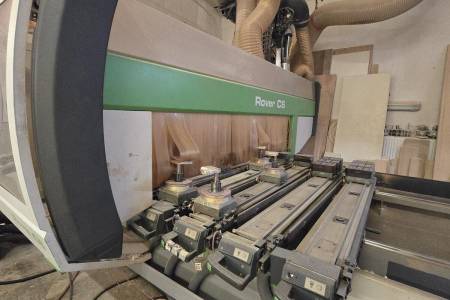

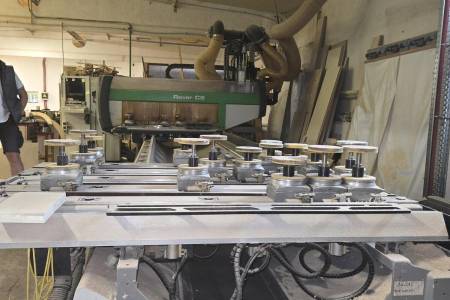

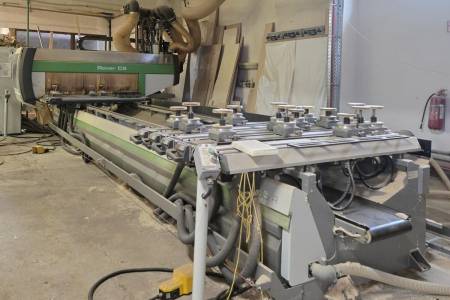

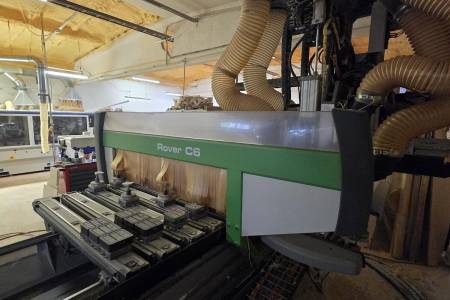

BIESSE ROVER C 6.65 CONF.2 BIESSE ROVER C 6.65 CONF.2

Technische Daten

Working dimension X

6.200 mm

Working dimension Y

1.535 mm

Working dimension Z

250 mm

Number of routing spindles

2

Main motor power

12 kW

Rotation speed max

24.000 rpm

Torque support

C-axis

Tool clamping system

HSK-F63

Tool changer positions

22

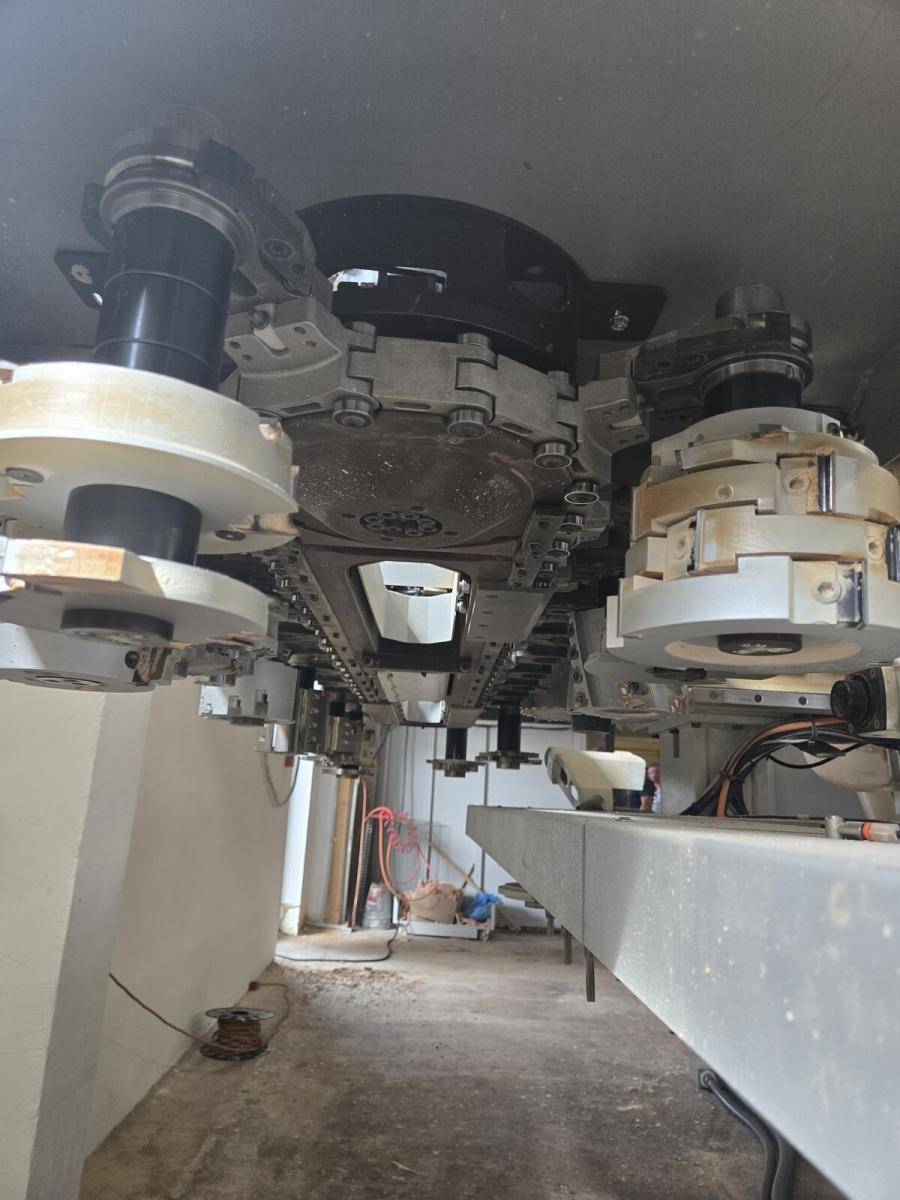

Chain changer

24

BIESSE Drilling aggregate BH 33 L

6

Horizontal drilling spindles in Y

4

Groove saw

in X-direction

Lock recess milling aggregate

Unit, changeable

Cantilever machine

Pod and rail table

Number of consoles

10

Self-adjusting machine table

1

Capacity vacuum pump

250 m³/h

Special workpiece clamping system

For windows

BIESSE Uniclamp

18

Safety device

Safety mat

Chip conveyor

8.770 kg
