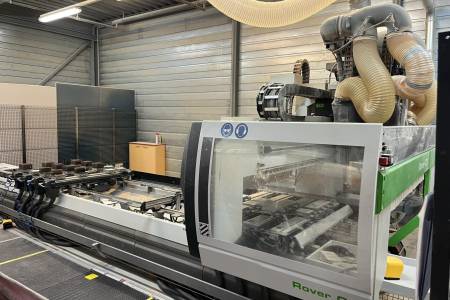

BIESSE ROVER C EDGE 6.50 CONF.2 BIESSE ROVER C EDGE 6.50 CONF.2

Technische Daten

Working dimension X

4.600 mm

Working dimension Y

1.535 mm

Working dimension Z

225 mm

Independent Z-axes

2

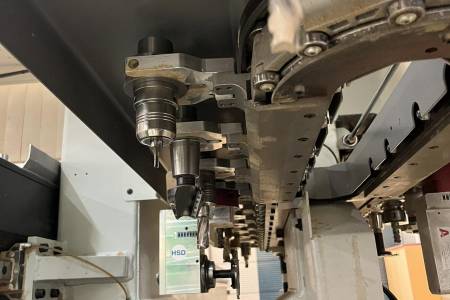

Number of milling spindles

2

Main motor power

12 kW

Rotation speed max

24.000 rpm

Torque support

C-axis

Tool clamping system

HSK-F63

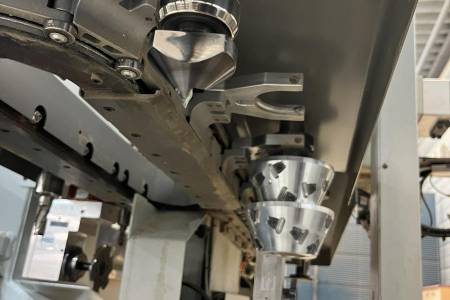

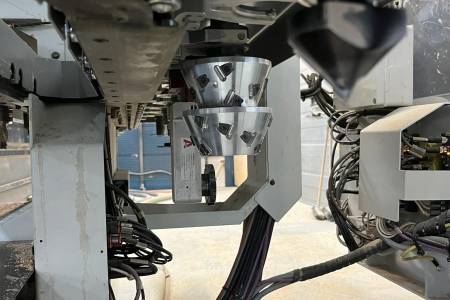

Tool changer positions

22

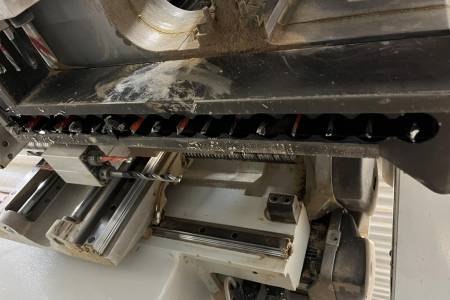

Chain changer 22 positions

29

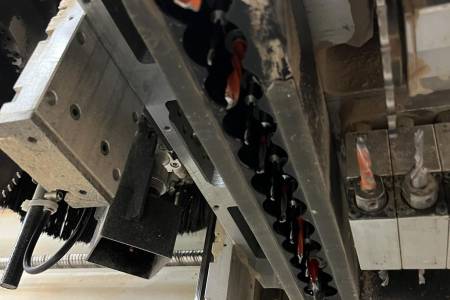

BIESSE Drilling aggregate BH 42 L

8

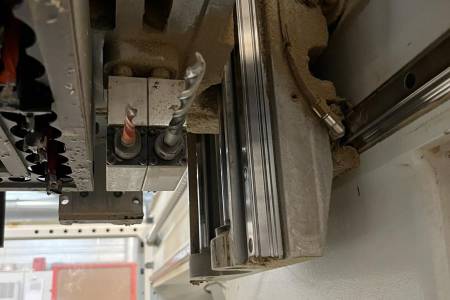

Horizontal drilling spindles in Y

4

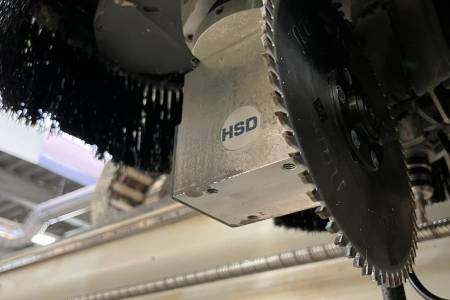

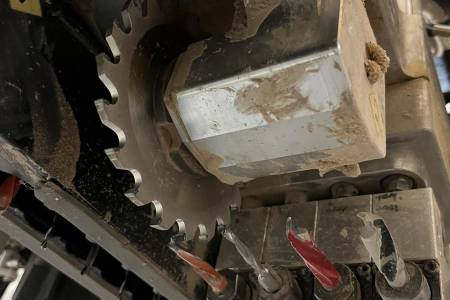

Groove saw

in X-direction

Lock recess milling aggregate

permanently attached

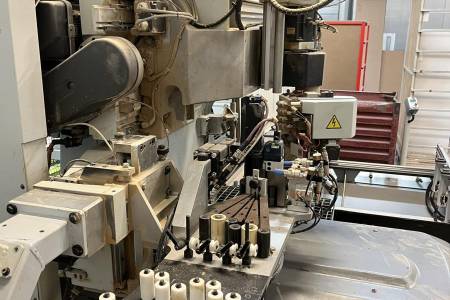

Edgebanding aggregate

Seperate Y-axis

Edgeband height max

64 mm

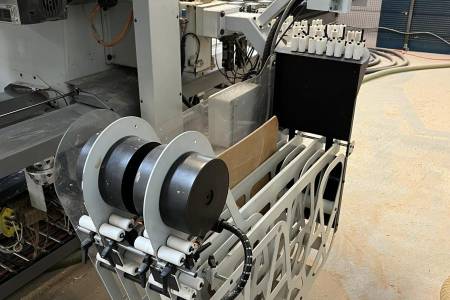

Places in coil magazine

4

Cantilever machine

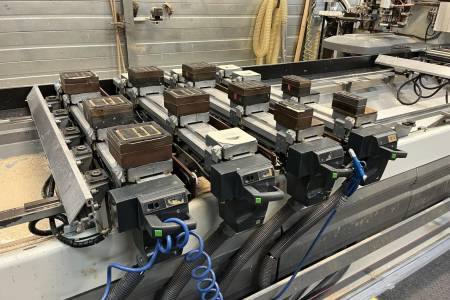

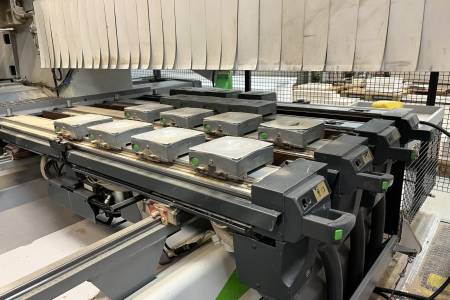

Pod and rail table

BIESSE Automatic machine table EPS

8

Self-adjusting machine table

1

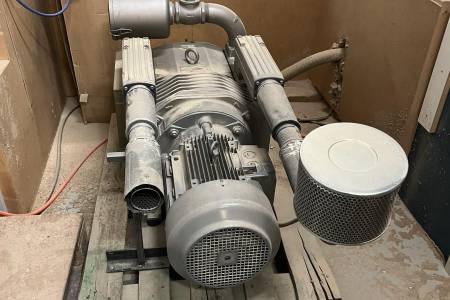

Capacity vacuum pump

250 m³/h

Workpiece probing

Safety mat

Interface for .dxf data

32,7 kW

Weight

7.100 kg
