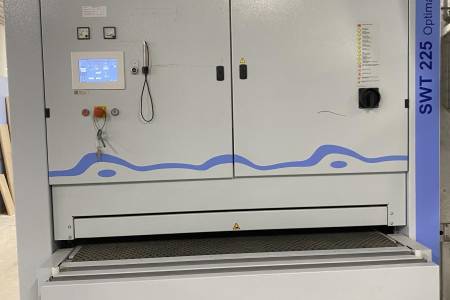

BÜTFERING SWT 225 BÜTFERING SWT 225

Technische Daten

Sanding width

1.350 mm

Workpiece thickness min

3 mm

Passage height max

200 mm

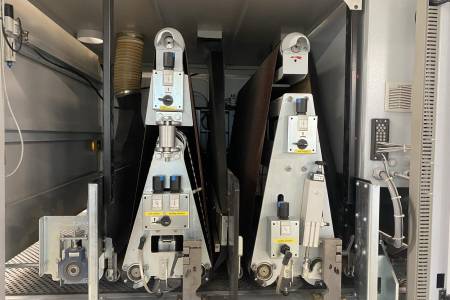

Sanding aggregates total

2

Sanding rollers

1

Steel roller

1

Sanding pads total

2

Segmental pressure pad

electronic

BÜTFERING Segmental pressure pad EPS

26 mm

Jump-in control

electropneumatically

Jump-in control

longitudinal

BÜTFERING Sanding pad aggregate H Super Finish aggregate

horsehair

Lacquer sanding

mechanical, Yes

Main motor power

15 kW

Sanding belt length

2.150 mm

Belt speed max

18 m/s

Adjustable sanding belt speed

continuously variable, Yes

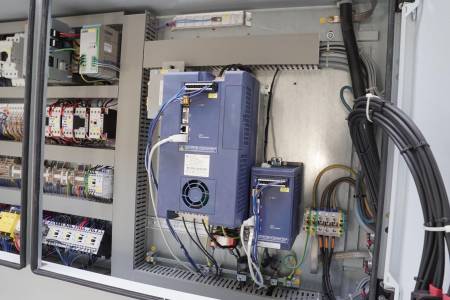

Aggregates with frequency inverters

2

Feed min

3 m/min

Feedrate max

15 m/min

Continuously variable feed

Sanding belt, Yes

Configuration of aggregates

k-s-b

Side of belt change

Left

Contact-free sanding belt oscillation

33 kW

Weight

3.400 kg

Space requirement Length

2,4 m

Space requirement Width

1,9 m

Space requirement Height

2,3 m
