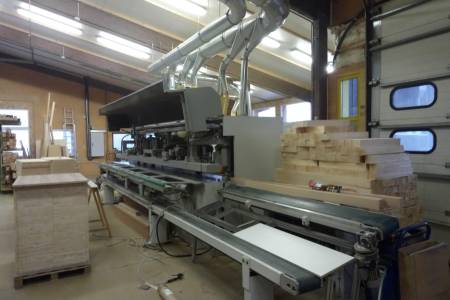

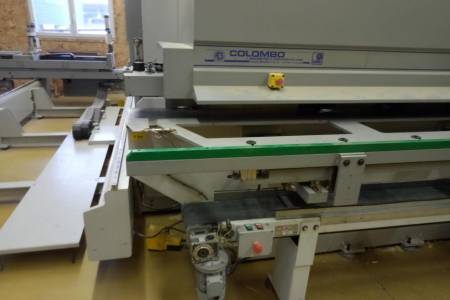

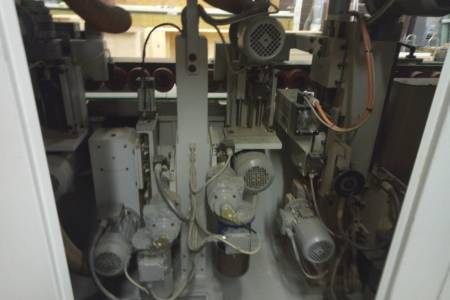

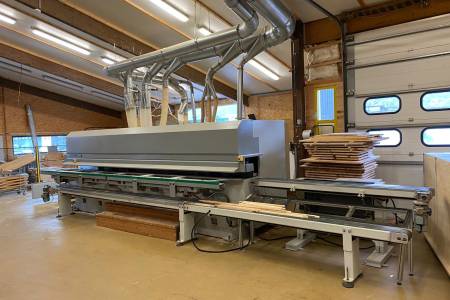

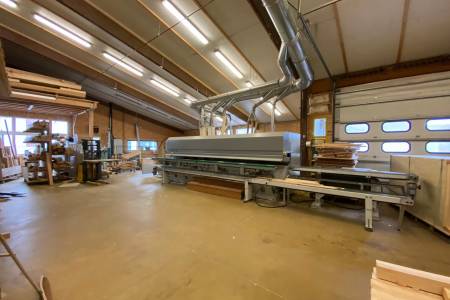

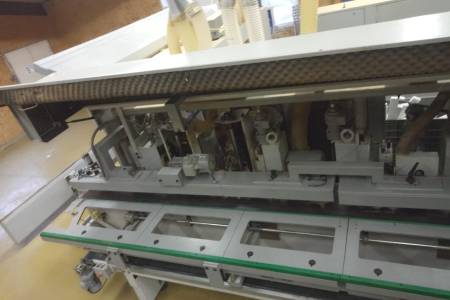

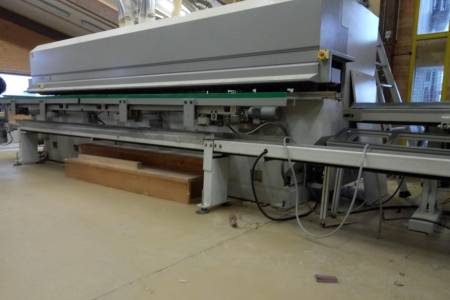

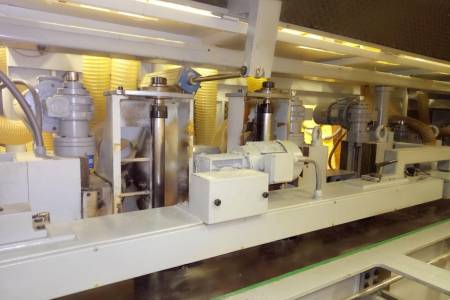

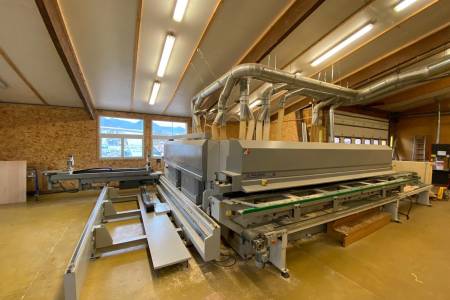

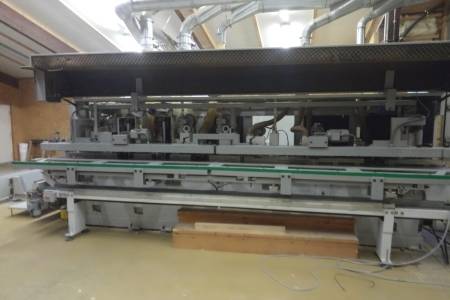

COLOMBO AM 60 COLOMBO AM 60

Technische Daten

Workpiece length max

4.200 mm

Workpiece thickness max

100 mm

Number of tenoning spindles

2

Number of moulding spindles

3

Spindles horizontal

3

Horizontal spindle timed

600 mm

Length of profiling spindle

600 mm

Length of downcut-milling spindle

600 mm

Length of fitting groove shaft

80 mm

Constant stroke

40 mm

Spindle stroke total

540 mm

Spindle diameter

50 mm

Cutting circle of profiling tools

220 mm

Cutting circle of tenoning tools mm

350 mm

Spindle stroke stepless

pneumatic

Controlled length stop

electronic

Atelier window

Down-cut spindle

Workpiece return

Longitudinal conveyor

Main motor power

11 kW

Feedrate max

90 m/min

Continuously variable feed

Programmable controller
