GRECON ULTRA 4 GRECON ULTRA 4

Technische Daten

Technical design

Package system

Horizontal joint

14.400

Number of milling units

1

Workpiece width max

205 mm

Workpiece thickness max

80 mm

Infeed length max

1.000 mm

Infeed length min

150 mm

Package width

600 mm

Pressing length

6.100 mm

Total pressure

12.000 kg

Capacity of router cycles/min

2,5

Transfer capacity parts/min

60

Capacity of press cycles/min

5

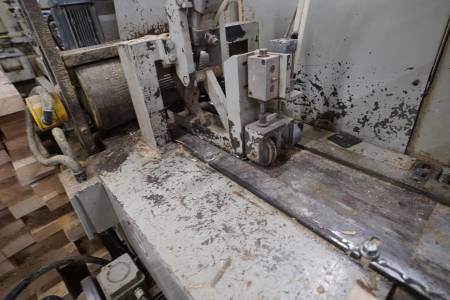

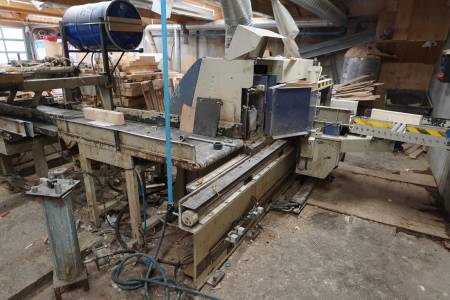

Milling machine

Single milling machine

Main motor power

22 kW

Scoring saw

2

Milling feed

Mobile table, fix aggregates

Gluing with profile nozzles

manually

Conveyor/ separator

Fully automatic

Einfädelstrecke

Chain

Bremswalzen

electro-motive

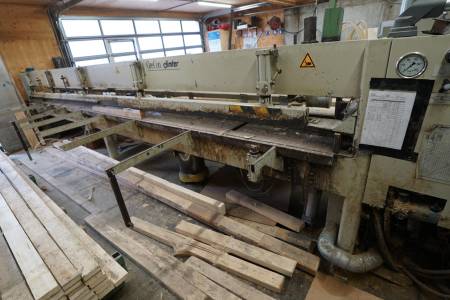

Press

End press

2 press channels

45 kW

Space requirement Length

14,5 m

Space requirement Width

5,1 m
