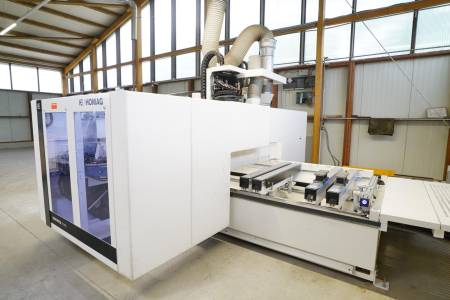

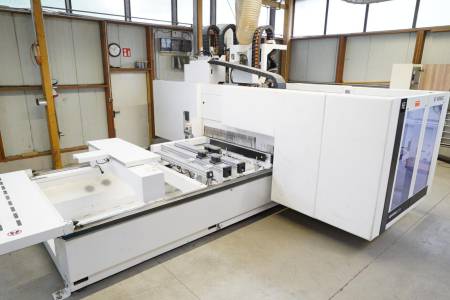

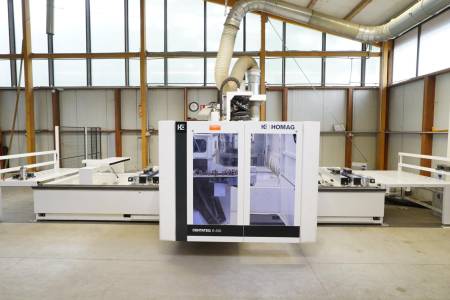

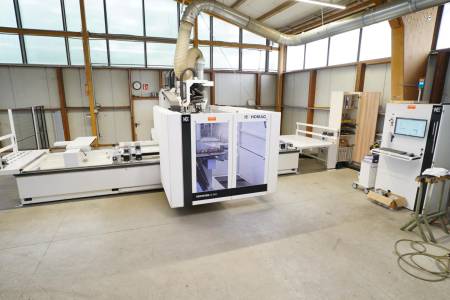

HOMAG CENTATEQ E-310 Venture BMG310/42/16/F/V/K HOMAG CENTATEQ E-310 Venture BMG310/42/16/F/V/K

Technische Daten

Working dimension X

4.375 mm

Working dimension Y

1.600 mm

Working dimension Z

300 mm

Independent Z-axes

2

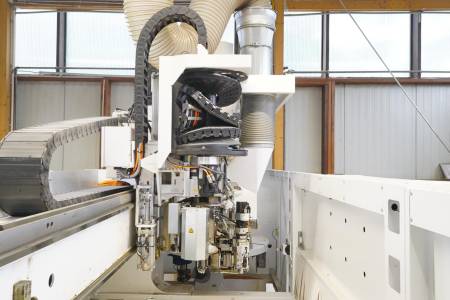

Number of milling spindles

1

HOMAG DRIVE 5 CS

12 kW

Rotation speed max

24.000 rpm

Torque support

Yes

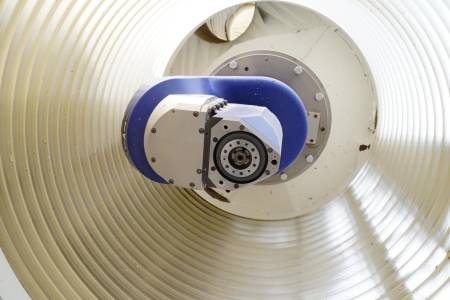

5th axis

HSK-F63

Tool changer positions

40

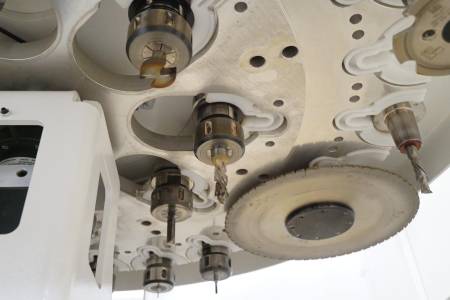

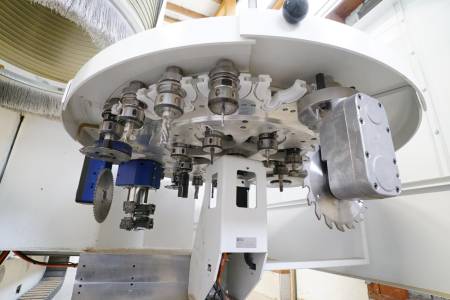

HOMAG 32-fold disc tool changer

4

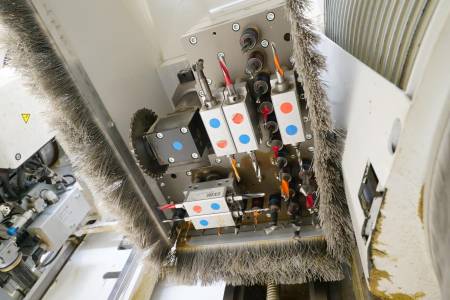

HOMAG FRÄSEN BOHREN 4-SPINDELN

21

Horizontal drilling spindles in X

6

Horizontal drilling spindles in Y

4

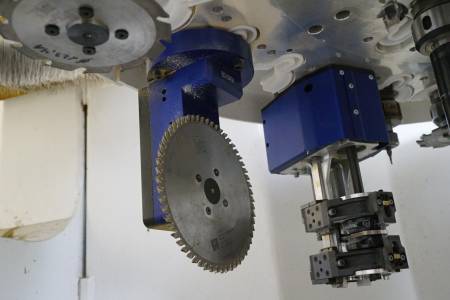

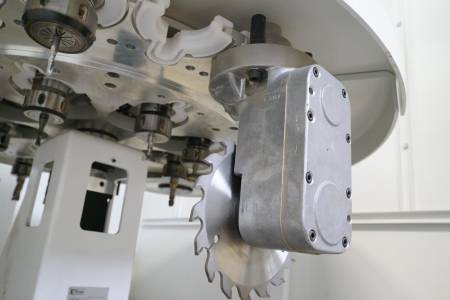

Groove saw

90° turnable

Edgebanding aggregate

Coupled slave axis

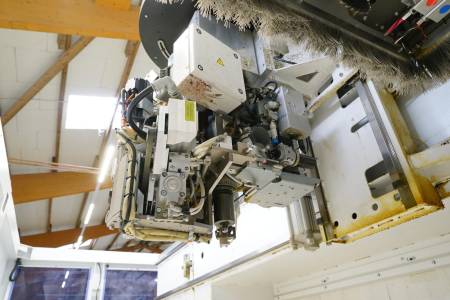

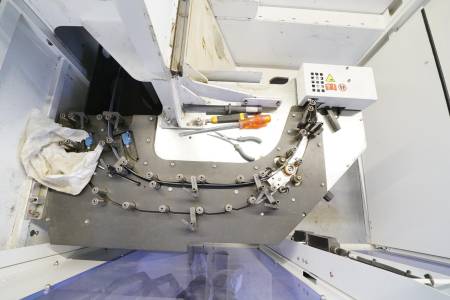

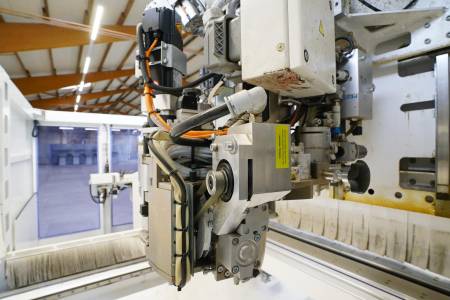

HOMAG Edgebanding aggregate POWEREDGE PRO

65 mm

Places in coil magazine

2

Gantry machine

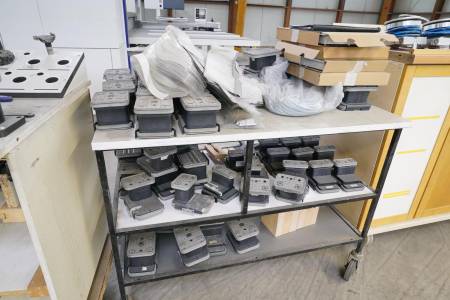

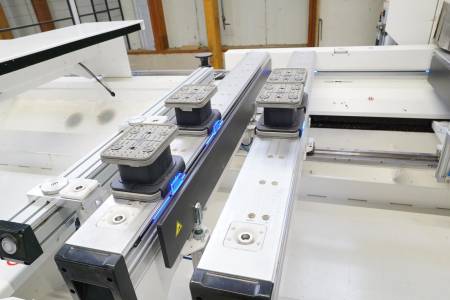

Pod and rail table

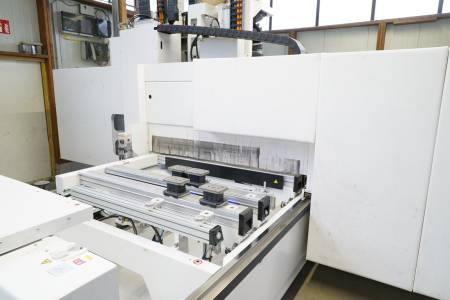

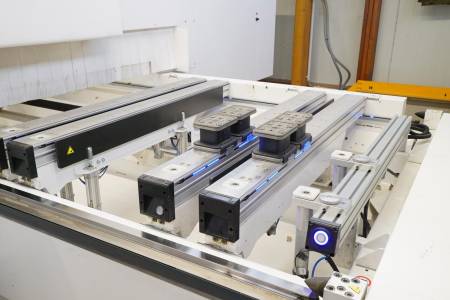

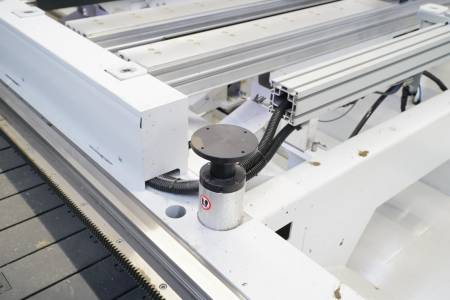

HOMAG K-table

8

Pneumatic pipe connectors

an den Konsolen

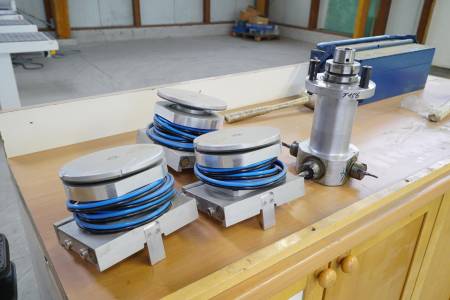

HOMAG Pneumatic connection for powerClamp

2

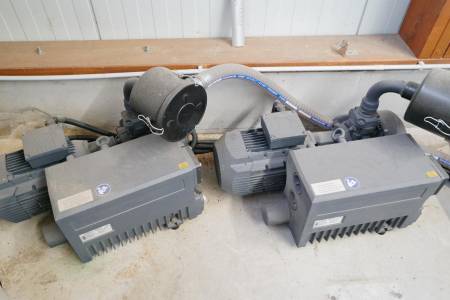

Capacity vacuum pump

126 m³/h

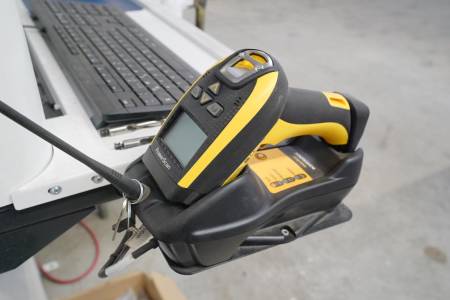

Barcode reader

Bumper

Interface for .dxf data

8,3 m

Space requirement Width

6 m

Space requirement Height

2,906 m
