HOMAG KL 78 /A20/S2 HOMAG KL 78 /A20/S2

Technische Daten

Edgeband thickness max

20 mm

Panel thickness max

60 mm

Thickness of coiled edgeband max

3 mm

Workpiece width min

55 mm

Feedrate max

24 m/min

Continuously variable feed

2

Glue system granulate

Premelting unit

Magazine for single strips

2 motors

Flush/radius/chamfer milling units

1

Corner rounding unit

2 motors

Tool changer positions

8

Scraper unit

Profile scraper, Flat scraper

Buffing unit

NC-axes

Edge sanding

1

Free spaces for aggregates

1

Type

left-side machine

Machine length

9.600 mm

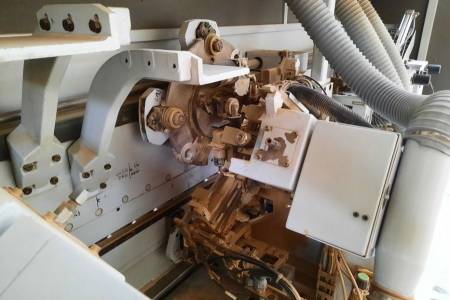

HOMAG Corner rounding unit FK 13

9,6 m

Space requirement Width

1,3 m

Space requirement Height

2 m
