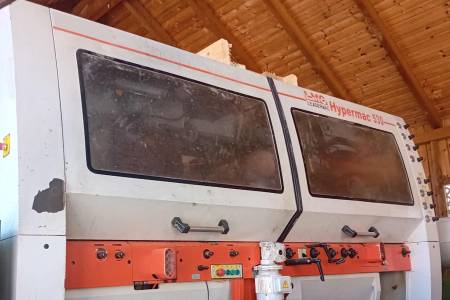

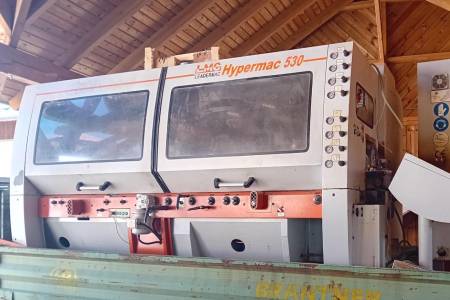

LEADERMAC LMC Hypermac 530 LEADERMAC LMC Hypermac 530

Technische Daten

Working width

300 mm

Planing height

200 mm

Number of spindles

5

Bottom spindles

2

Right spindles

1

Spindles left

1

Spindles top

1

Spindle configuration

b-r-l-t-b

Spindle rotation speed max 1/min

6.000 rpm

Spindle diameter

50 mm

Feedrate max

45 m/min

Continuously variable feed

11 kW

Main motor power

15 kW

Spindle(s) with counterbearing

Planing width, Planing height

Surface of the machine table

Chromed

Infeed table length

800 mm

Table rollers

driven

Lubrication pump

Yes

Pneumatic top pressure

Cardanic
