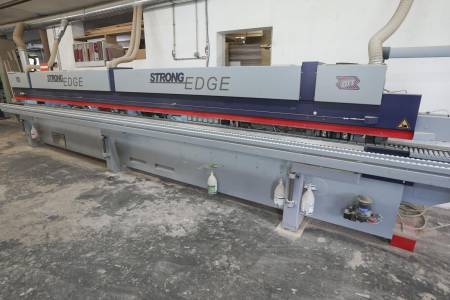

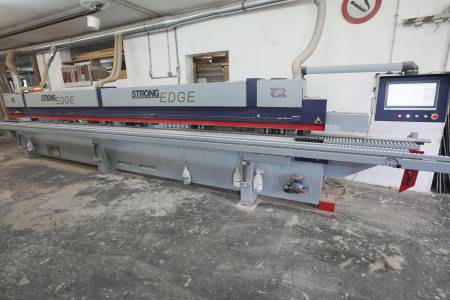

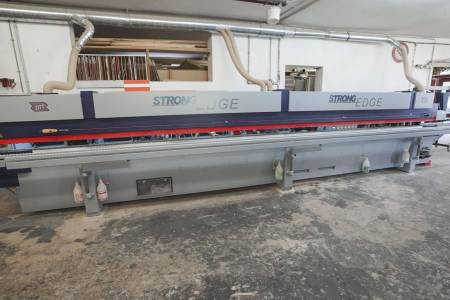

OTT STRONG EDGE OTT STRONG EDGE

Technische Daten

Edgeband thickness max

25 mm

Panel thickness max

80 mm

Thickness of coiled edgeband max

3 mm

Workpiece length min

150 mm

Workpiece width min

70 mm

Feed min

12 m/min

Feedrate max

20 m/min

Continuously variable feed

Premelting unit

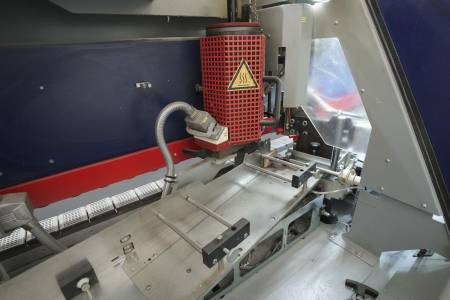

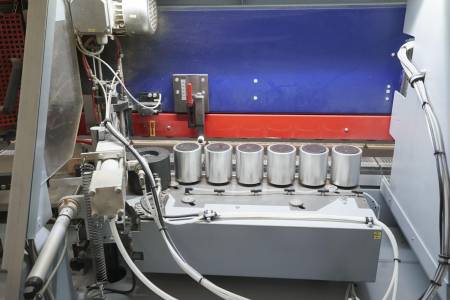

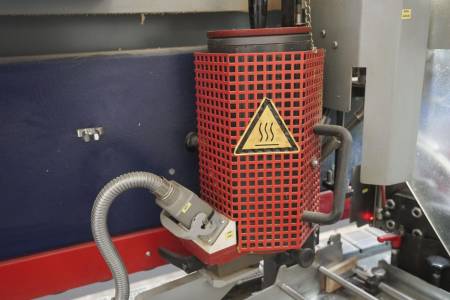

OTT Glue system WRT 125 Exchangeable funnel

2 motors

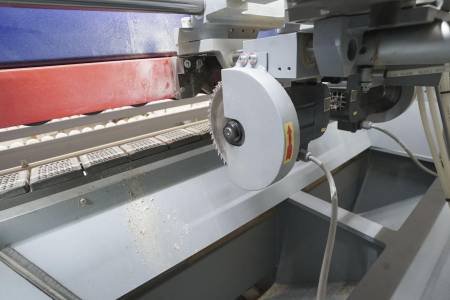

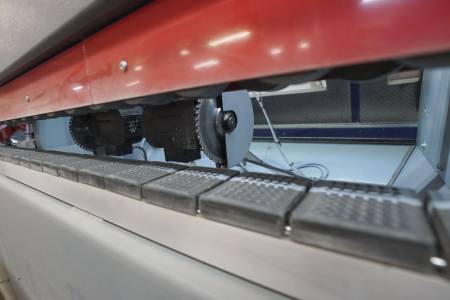

OTT Trimming saw K 13

2

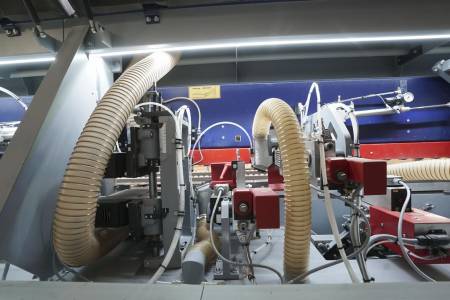

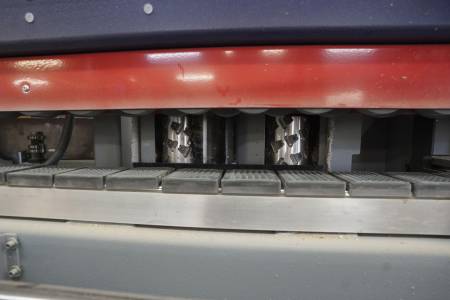

OTT Fine milling unit HFT

2 motors

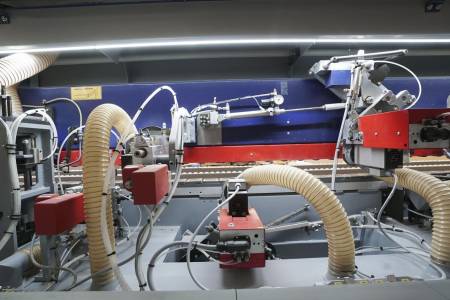

OTT Corner rounding unit AKF Automated contour copy milling

Profile scraper, Flat scraper

OTT Flat scraper unit ZKF Surface scraper unit

NC-axes

Type

Right-side machine

Machine length

8.700 mm

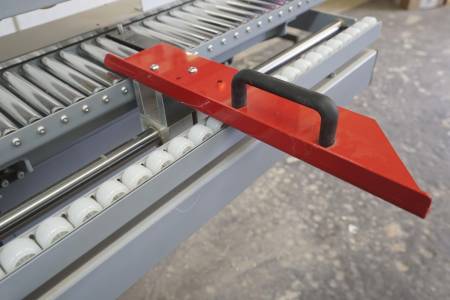

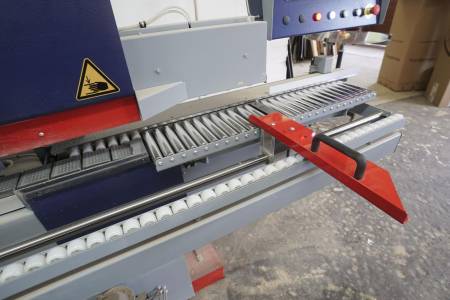

OTT Workpiece infeed WE Angle infeeding aid

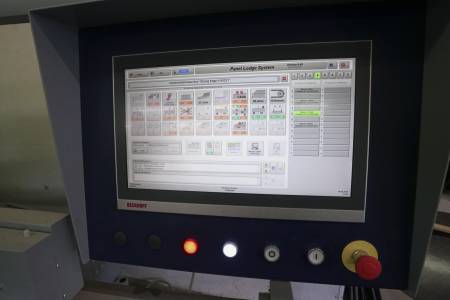

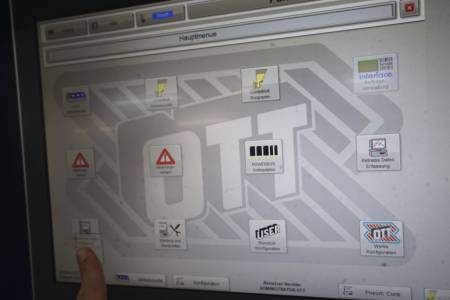

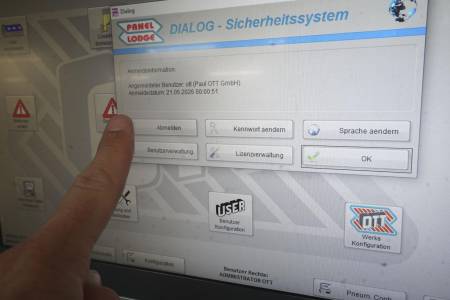

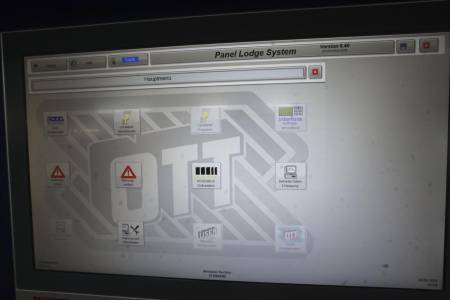

OTT PANEL LODGE V6.40

Conformity marking

25 kW

Weight

4.500 kg

Space requirement Length

8,7 m

Space requirement Width

1,35 m

Space requirement Height

1,79 m
