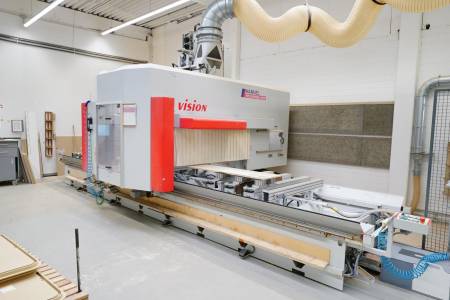

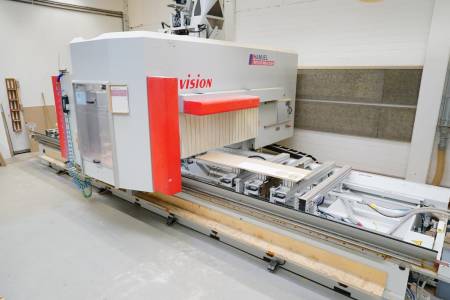

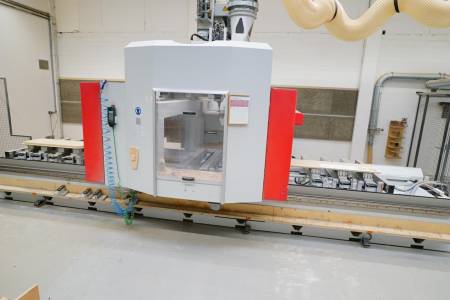

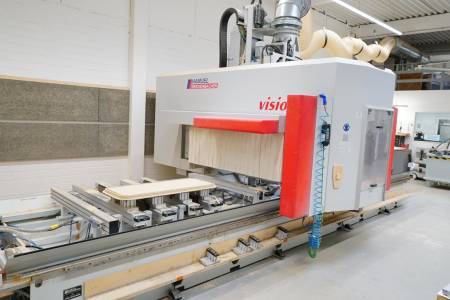

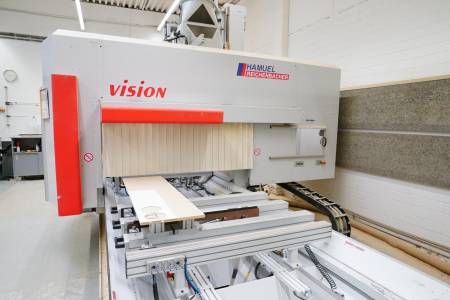

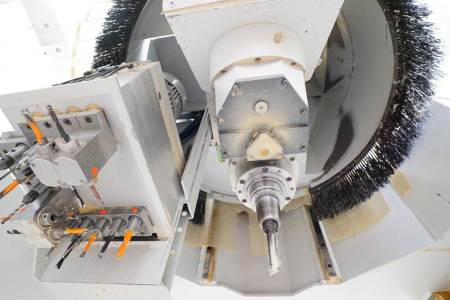

REICHENBACHER VISION 2 -II REICHENBACHER VISION 2 -II

Technische Daten

Working dimension X

5.540 mm

Working dimension Y

1.600 mm

Working dimension Z

700 mm

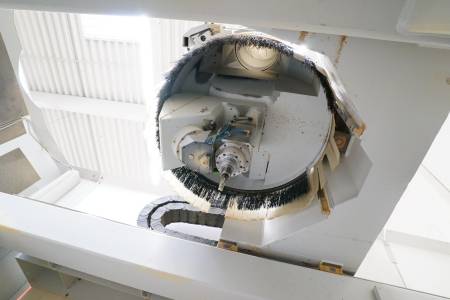

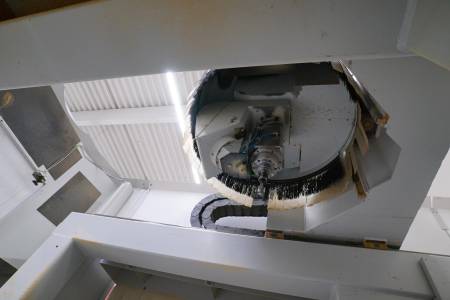

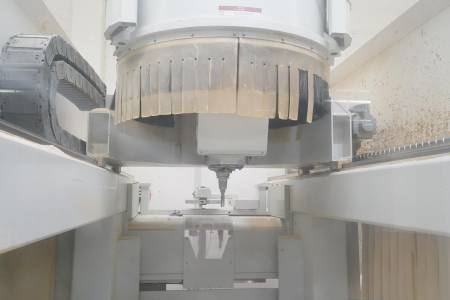

Number of milling spindles

1

Main motor power

15 kW

Rotation speed max

24.000 rpm

Torque support

Yes

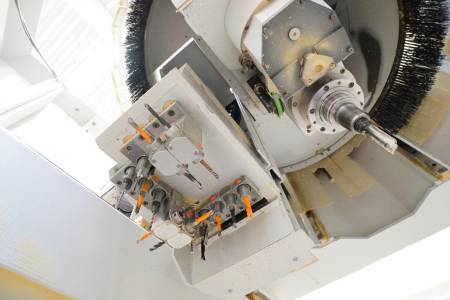

5th axis

HSK-F63

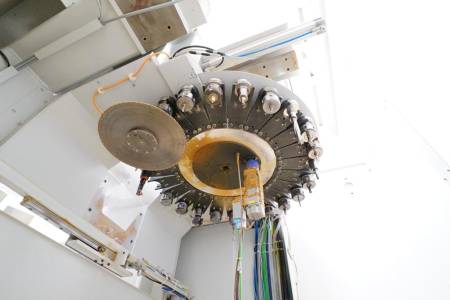

Tool changer positions

25

Disc tool changer

11

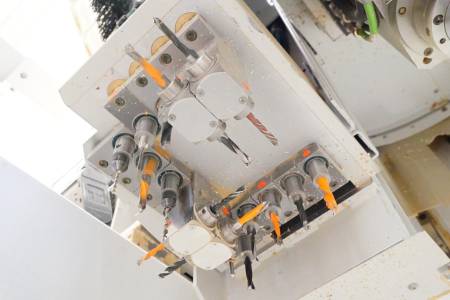

Horizontal drilling spindles in X

4

Horizontal drilling spindles in Y

4

Gantry machine

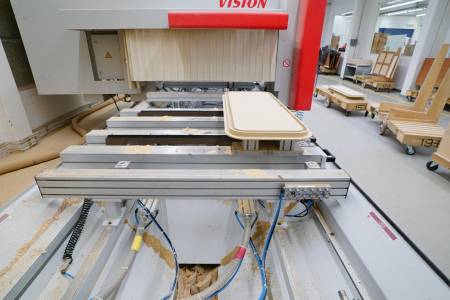

Pod and rail table

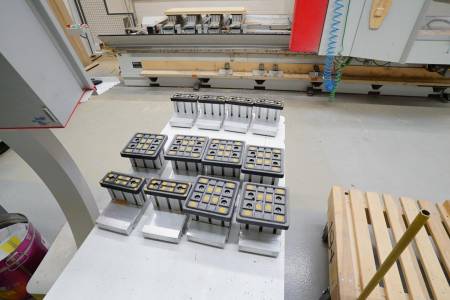

Workpiece support aids

10

Pneumatic pipe connectors

Yes

Vacuum pump

1

Capacity vacuum pump

250 m³/h

Safety device

Bumper

Chip conveyor

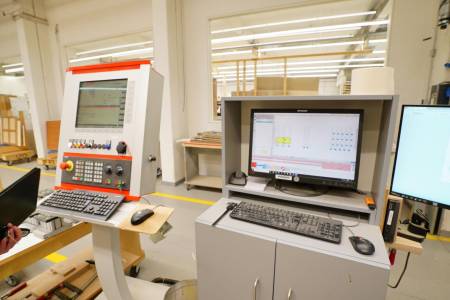

SIEMENS SINUMERIK 840 D SL

Software

12,5 kg

Space requirement Length

9 m

Space requirement Width

3,8 m

Space requirement Height

3,5 m
