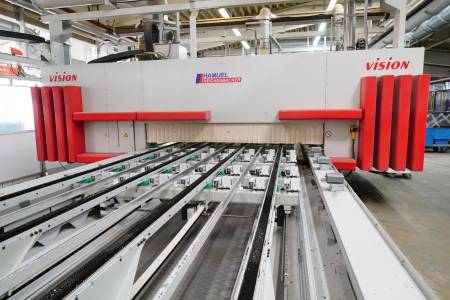

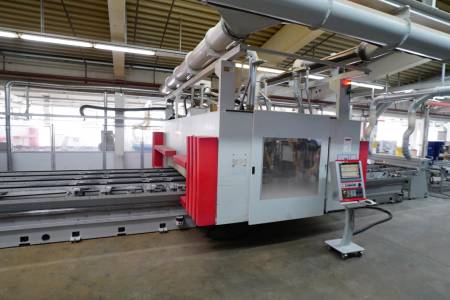

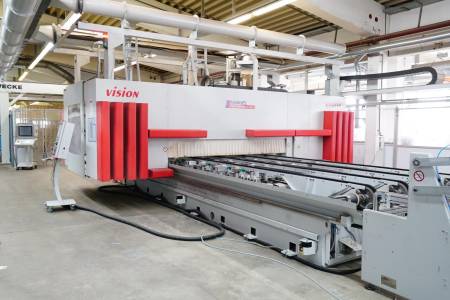

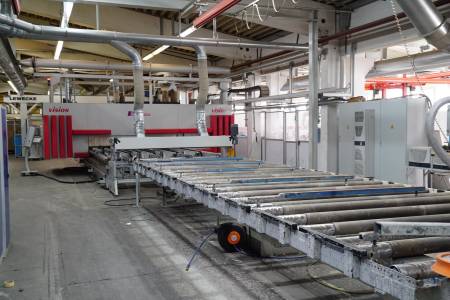

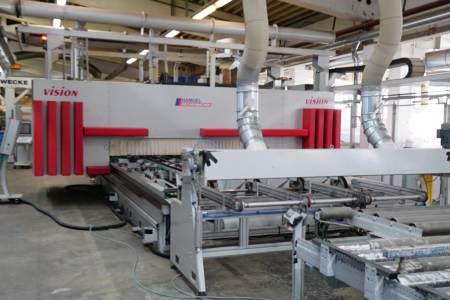

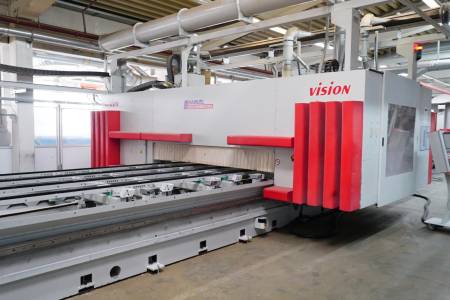

REICHENBACHER VISION 3 TT REICHENBACHER VISION 3 TT

Technische Daten

Working dimension X

8.500 mm

Working dimension Y

2.600 mm

Working dimension Z

200 mm

Independent Z-axes

3

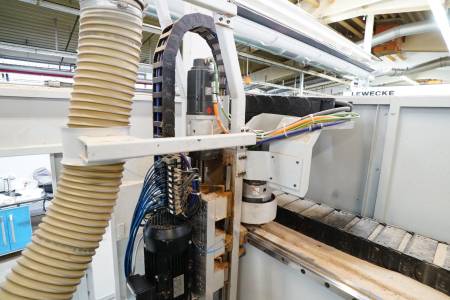

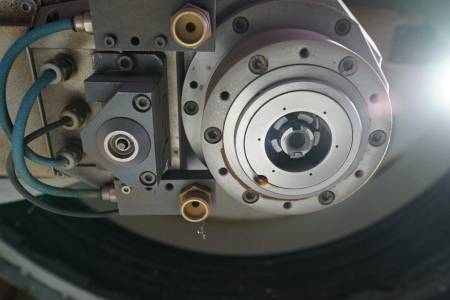

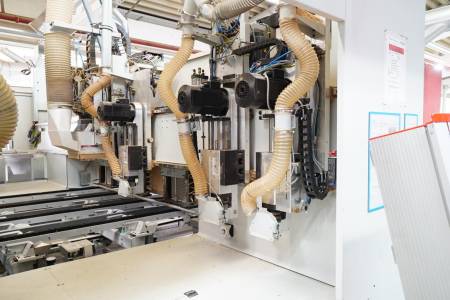

Number of milling spindles

2

Milling spindle liquid-cooled

20 kW

Rotation speed max

24.000 rpm

Torque support

Yes

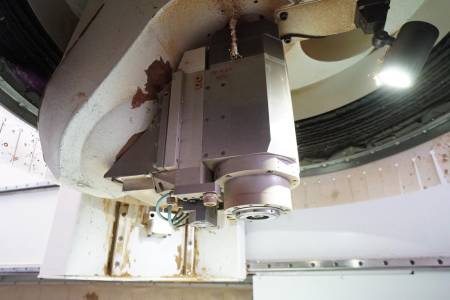

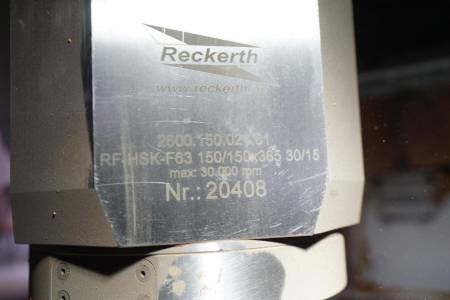

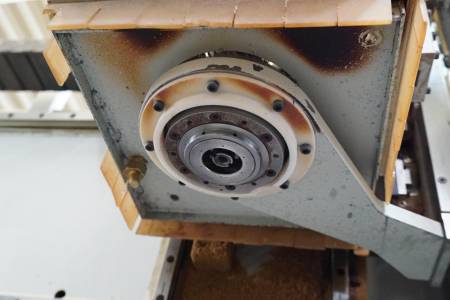

5th axis

HSK-F63

Tool changer positions

37

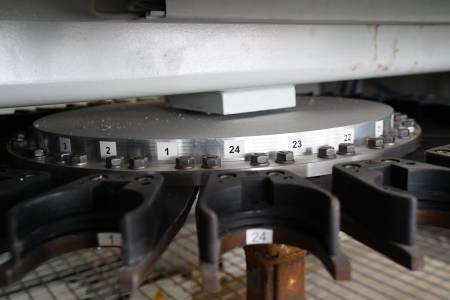

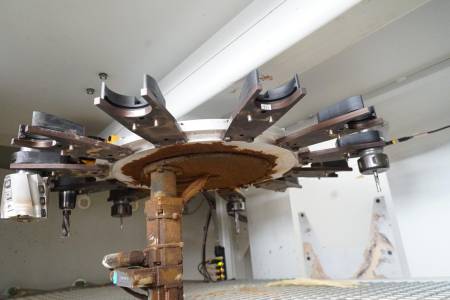

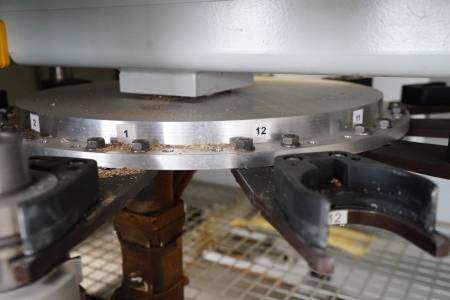

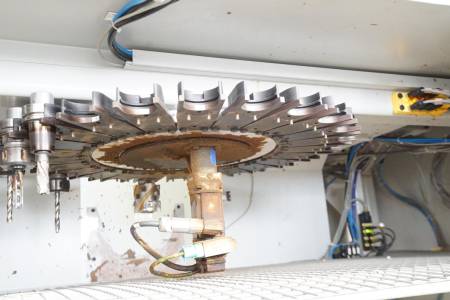

Disc tool changer 24-fold

8

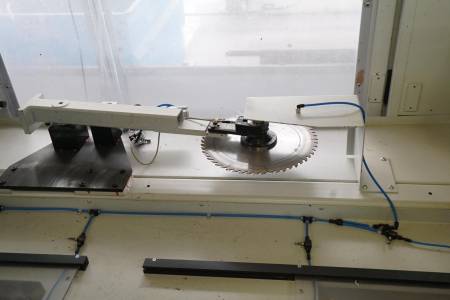

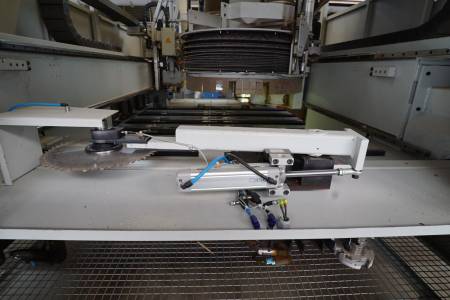

Groove saw

in Y-direction

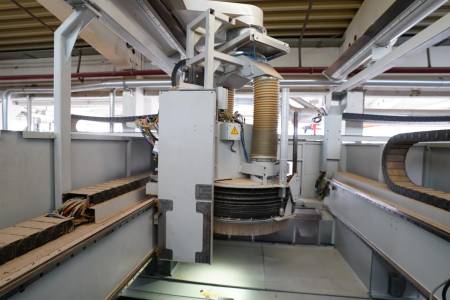

Gantry machine

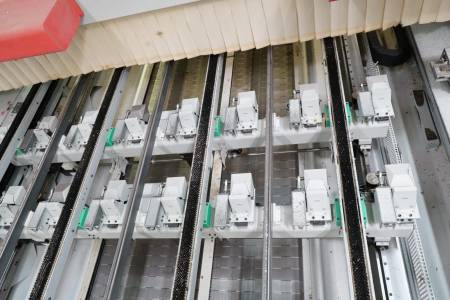

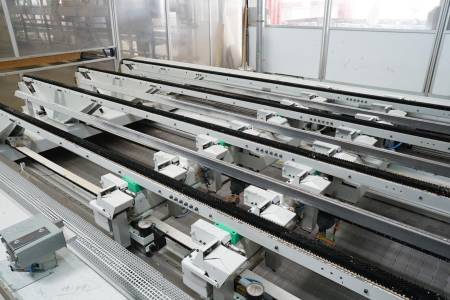

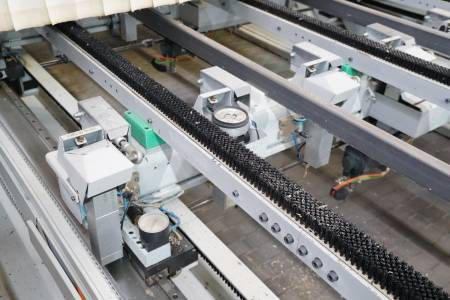

Pod and rail table, Pin system, Feed-through technology

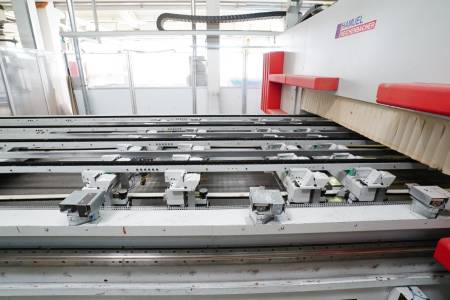

Number of consoles

10

Self-adjusting machine table

1

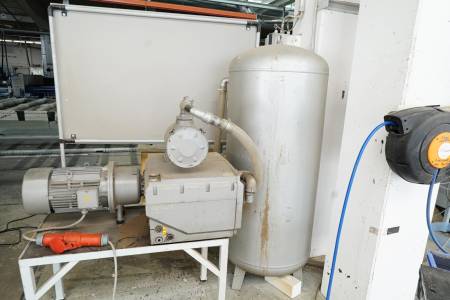

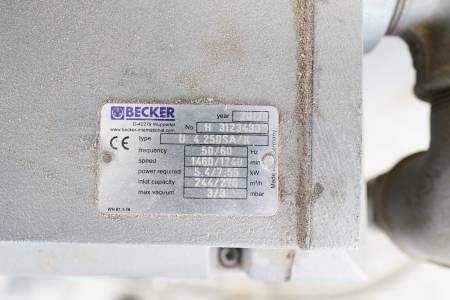

Capacity vacuum pump

250 m³/h

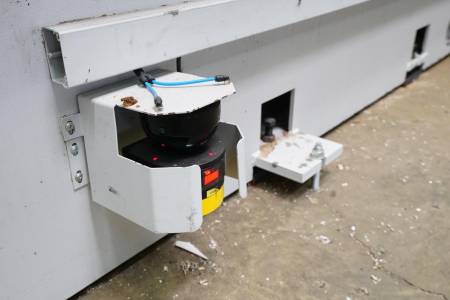

Safety device

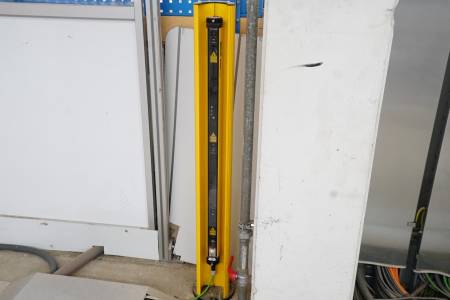

Bumper, Light barrier

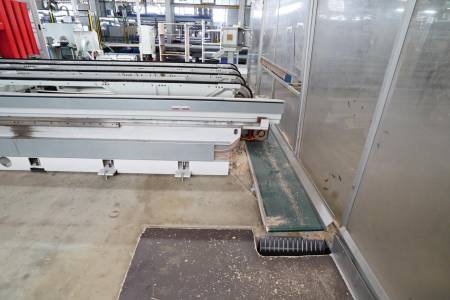

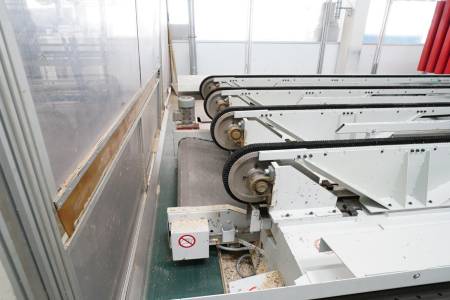

Chip conveyor

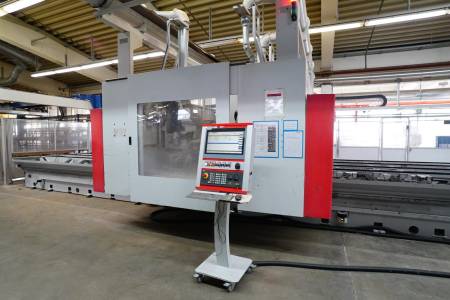

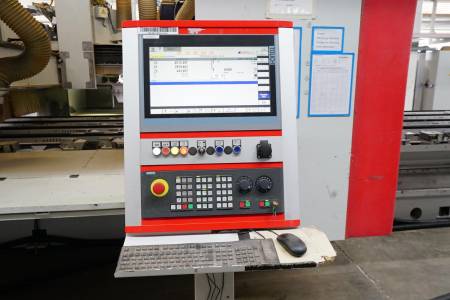

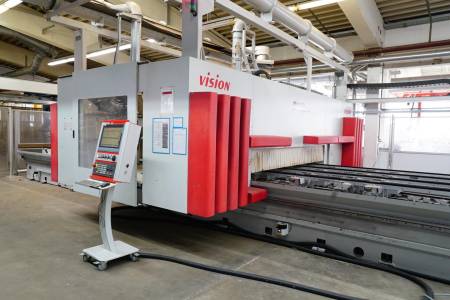

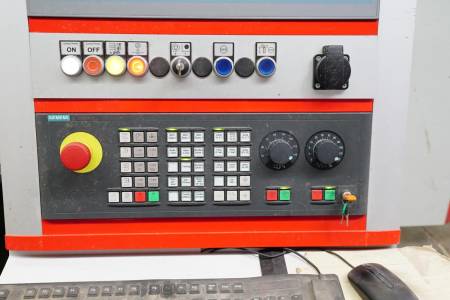

SIEMENS SINUMERIK 840 D SL

UPS - Uninterruptible Power Supply

20.000 kg

Space requirement Length

14 m

Space requirement Width

6,8 m

Space requirement Height

3,9 m
