SAC RTE 1300 SAC RTE 1300

Technische Daten

Sanding width

1.300 mm

Workpiece thickness min

3 mm

Passage height max

160 mm

Sanding aggregates total

2

Sanding rollers

1

Hardness grade of roller in ° shore

30 Shore

Sanding pads total

1

Segmental pressure pad

electronic

Segment width

32 mm

Polishing aggregate

Scotch Brite

Lacquer sanding

11 kW

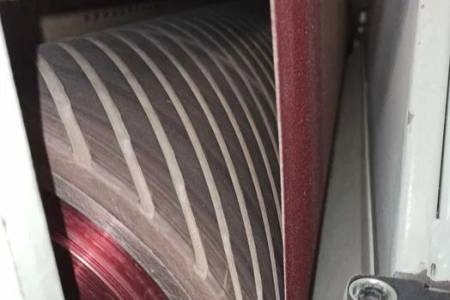

Sanding belt length

2.620 mm

Belt speed max

18 m/s

Adjustable sanding belt speed

continuously variable

Feedrate max

15 m/min

Continuously variable feed

Sanding belt

Jump-in control

electropneumatically

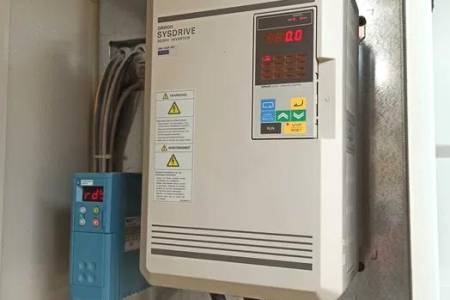

Aggregates with frequency inverters

1

Configuration of aggregates

r-p-u

Side of belt change

Left

Jump-in control

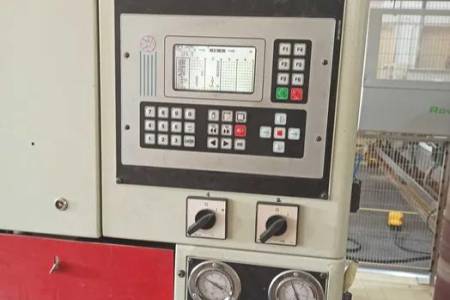

SAC NC MIKROPROZESSOR MODELL 084

Declaration of CE-conformity

32 kW

Weight

3.140 kg

Space requirement Length

2,4 m

Space requirement Width

4,1 m

Space requirement Height

2,5 m
