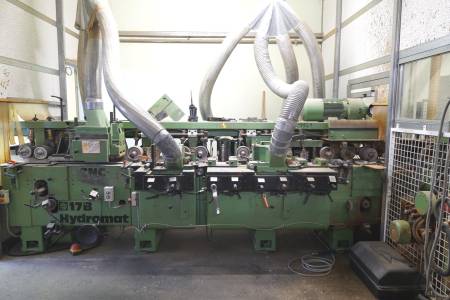

WEINIG HYDROMAT 17B WEINIG HYDROMAT 17B

Technische Daten

Working width

170 mm

Planing height

120 mm

Number of spindles

7

Bottom spindles

2

Right spindles

2

Spindles left

2

Spindles top

1

Spindle configuration

b-r-l-r-l-t-b

Spindle rotation speed max 1/min

6.000 rpm

Spindle diameter

50 mm

Feedrate max

36 m/min

Continuously variable feed

5,5 kW

Main motor power

7,5 kW

Jointing technology

straight jointer

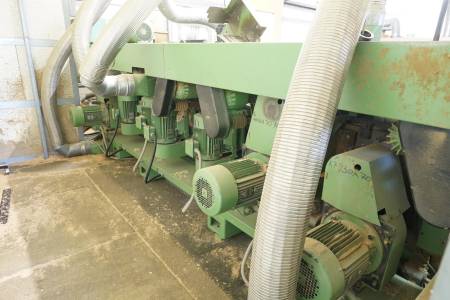

Seperate motor per spindle

Planing width, Planing height

Surface of the machine table

hardened

Infeed table length

2.000 mm

Table rollers

driven

Lubrication pump

manually

Pneumatic top pressure

Cardanic

CNC-axes

Yes

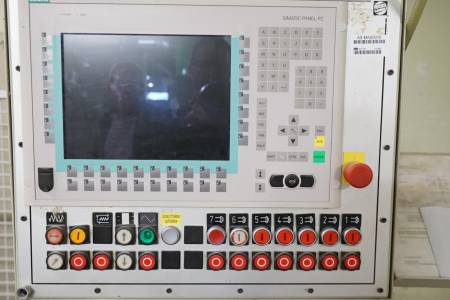

Control

SIEMENS SIMATIC PANEL PC
