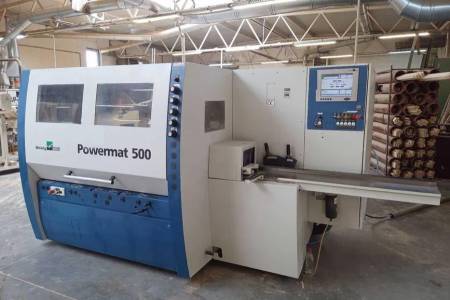

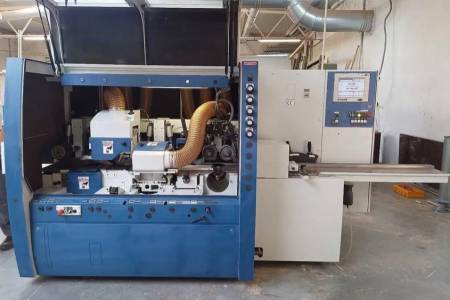

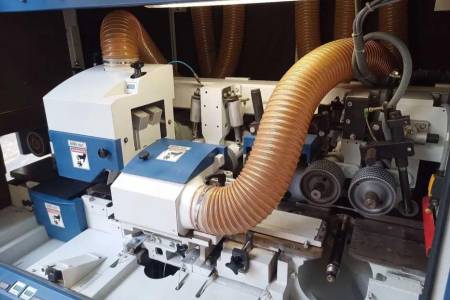

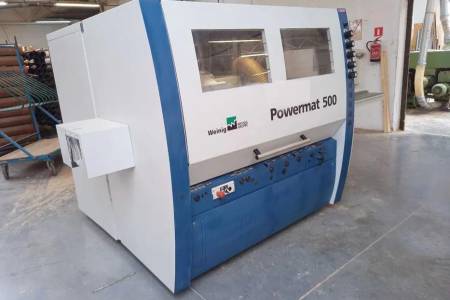

WEINIG POWERMAT 500 WEINIG POWERMAT 500

Technische Daten

Working width

230 mm

Planing height

120 mm

Number of spindles

5

Bottom spindles

2

Right spindles

1

Spindles left

1

Spindles top

1

Spindle configuration

b-r-l-t-b

Spindle rotation speed max 1/min

8.000 rpm

Feedrate max

30 m/min

Continuously variable feed

4 kW

Main motor power

7,5 kW

Seperate motor per spindle

Programmable controller

Surface of the machine table

hard-coated

Infeed table length

2.000 mm

Lubrication pump

manually

Pneumatic top pressure

Cardanic

Quick tool change

WEINIG PowerLock

Quick release systems for tool change

4
