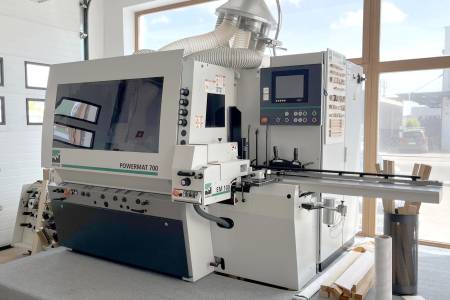

WEINIG POWERMAT 700 WEINIG POWERMAT 700

Technische Daten

Working width

230 mm

Planing height

160 mm

Number of spindles

5

Bottom spindles

2

Right spindles

1

Spindles left

1

Spindles top

1

Spindle configuration

b-r-l-t-b

Spindle rotation speed max 1/min

8.000 rpm

Spindle diameter

40 mm

Feedrate max

40 m/min

Continuously variable feed

5 kW

Main motor power

7,5 kW

Motoric adjustment

Programmable controller

Surface of the machine table

hard-coated

Infeed table length

2.000 mm

Grooved table

manually

Infeed automatically

Magazine

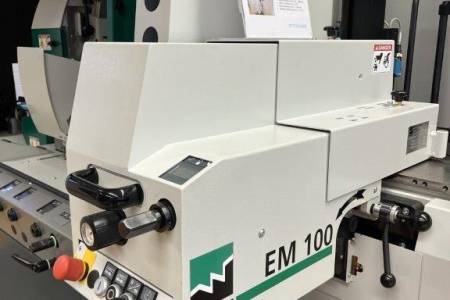

WEINIG EM 100

Cardanic

Quick tool change

WEINIG PowerLock

Quick release systems for tool change

3

Lifting spindle

NC-axis

CNC-axes

Spindel rechts radial, Spindel rechts axial, Spindel links radial, Spindel links axial, Spindel oben radial, Spindel oben axial
