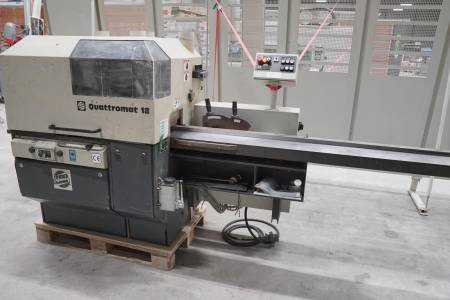

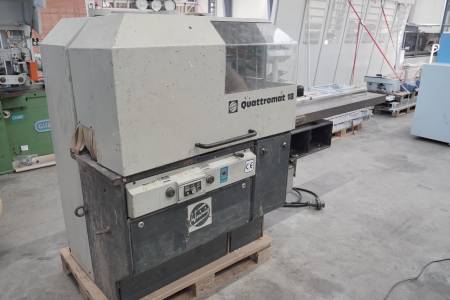

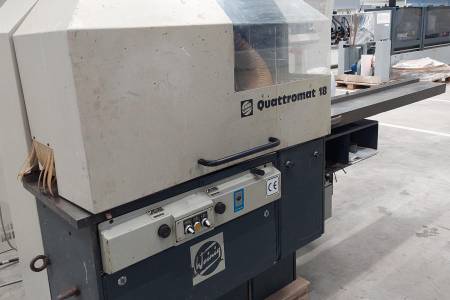

WEINIG QUATTROMAT 18 WEINIG QUATTROMAT 18

Technische Daten

Working width max

180 mm

Working width min

8 mm

Working height max

120 mm

Working height min

5 mm

Number of spindles

4

Power top spindle

5,5 kW

Power bottom spindle

4 kW

Spindle rotation speed max.

6.000 rpm

Spindle diameter

40 mm

Table length

2.000 mm

Number of cutterheads

4

Main motor power

5,5 kW

Feedrate max

8 m/min

Seperate motor per spindle

Planing width, Planing height

Chip rabbet cutter

Yes

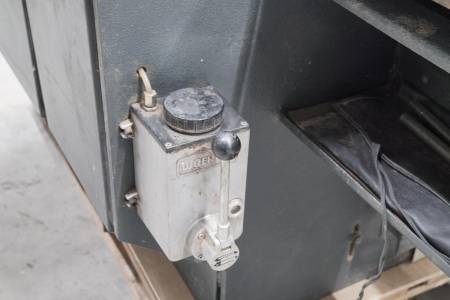

Lubrication pump

manually

Reversible cutters

Weinig Centrolock

Conformity marking

17 kW

Weight

1.150 kg

Space requirement Length

3 m

Space requirement Width

1,8 m

Space requirement Height

2,35 m
