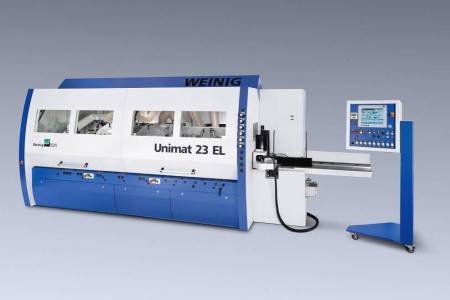

WEINIG UNIMAT 23EL WEINIG UNIMAT 23EL

Technische Daten

Working width

230 mm

Planing height

120 mm

Number of spindles

6

Bottom spindles

2

Right spindles

1

Spindles left

1

Spindles top

2

Spindle configuration

b-r-l-t-t-b

Spindle rotation speed max 1/min

8.000 rpm

Spindle diameter

50 mm

Feedrate max

36 m/min

Continuously variable feed

5,5 kW

Main motor power

15 kW

Seperate motor per spindle

Planing height, Planing width

Surface of the machine table

hardened

Infeed table length

2.500 mm

Lubrication pump

automatic

Pneumatic top pressure

Cardanic
