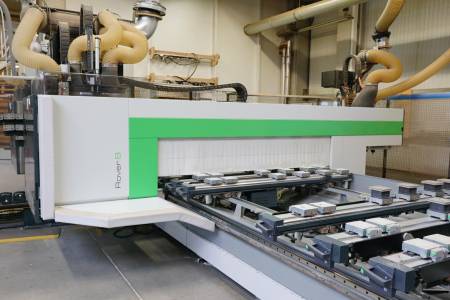

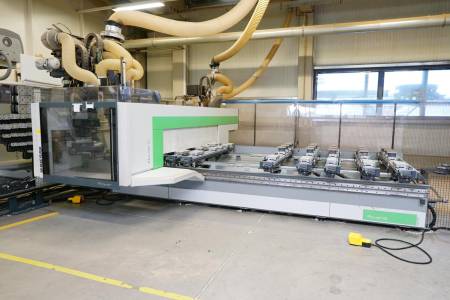

BIESSE ROVER B 22.38 Conf. 5A BIESSE ROVER B 22.38 Conf. 5A

Specifications

Working dimension X

3.855 mm

Working dimension Y

2.230 mm

Working dimension Z

290 mm

Independent Z-axes

3

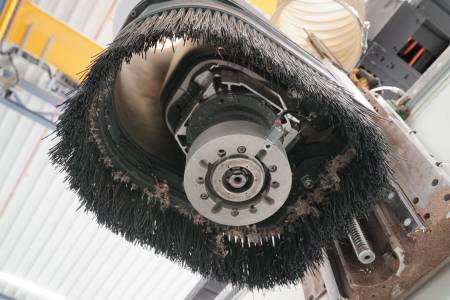

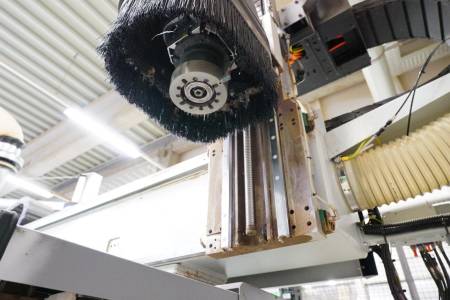

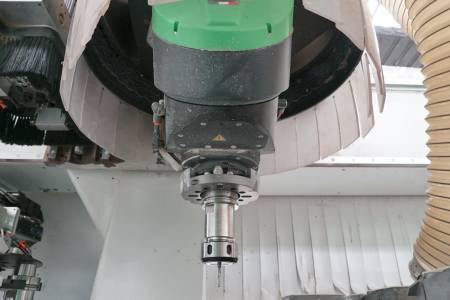

Number of milling spindles

2

Milling spindle liquid-cooled

19,2 kW

Rotation speed max

24.000 rpm

Torque support

Yes

5th axis

HSK-F63

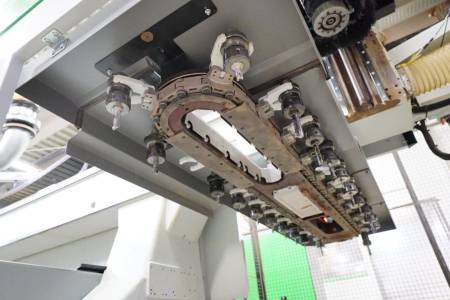

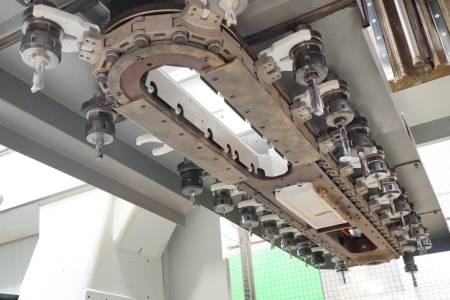

Tool changer positions

31

Tool changing auxiliary device

10

Horizontal drilling spindles in X

4

Horizontal drilling spindles in Y

2

Groove saw

in X-direction

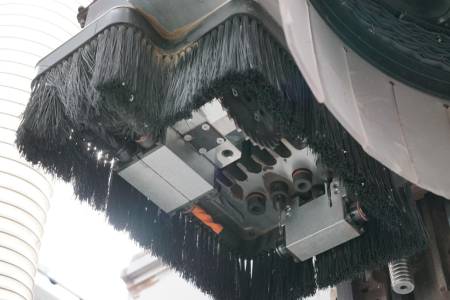

BIESSE Drilling aggregate BH 17 L

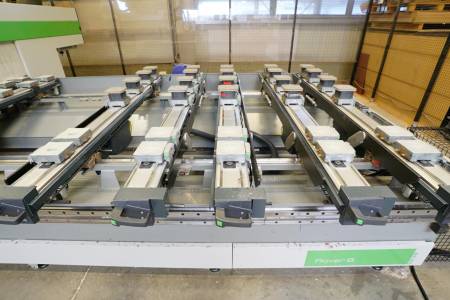

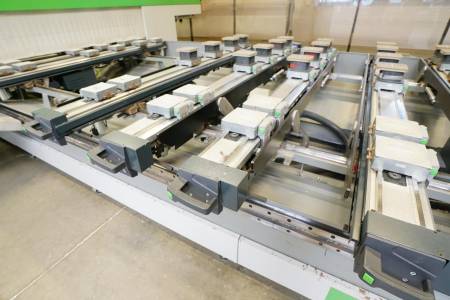

Pod and rail table

Pendulum machining

2

Number of consoles

8

BIESSE Machine table ATS

an den Saugerplattformen

Self-adjusting machine table

1

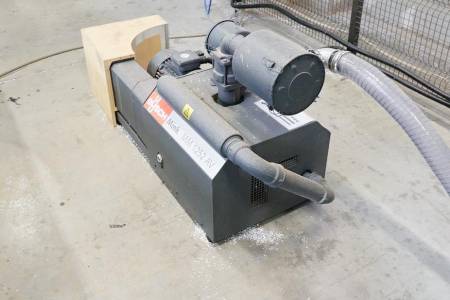

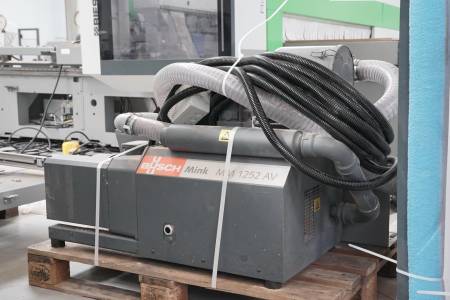

Capacity vacuum pump

250 m³/h

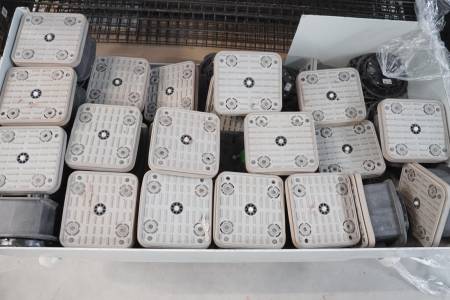

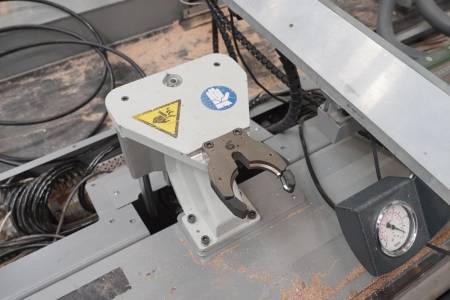

Special workpiece clamping system

For narrow workpieces, Clamps for beams

Anzahl Sonderspanner

4

Safety device

Light barrier, Bumper

Chip conveyor

38 kW

Weight

6.750 kg

Space requirement Length

8,3 m

Space requirement Width

6,8 m

Space requirement Height

2,8 m
