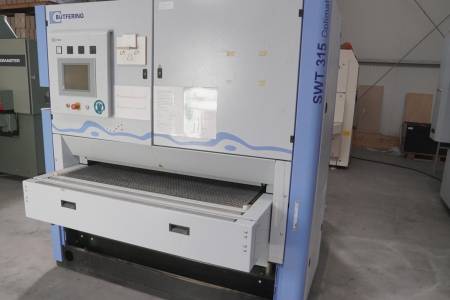

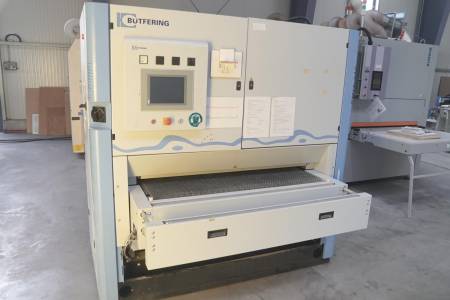

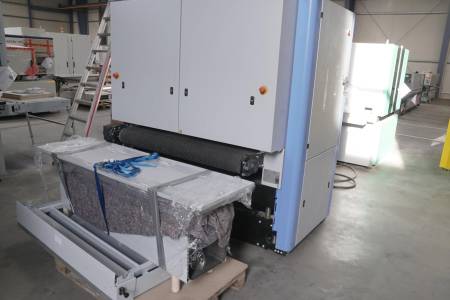

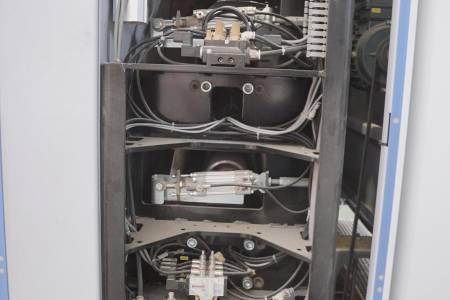

BÜTFERING SWT 315 X OPTIMAT BÜTFERING SWT 315 X OPTIMAT

Specifications

Sanding width

1.350 mm

Workpiece thickness min

3 mm

Passage height max

160 mm

Sanding aggregates total

1

BÜTFERING Combination unit X

1

Steel roller

1

Sanding pads total

1

Segmental pressure pad

electronic

Segment width

25 mm

Jump-in control

electromagnetic

BÜTFERING Segmental pressure pad MPS Magnetic Pad System

longitudinal

Polishing aggregate

Yes

Lacquer sanding

Yes

Main motor power

20 kW

Sanding belt length

2.150 mm

Belt speed max

18 m/s

Adjustable sanding belt speed

continuously variable

Aggregates with frequency inverters

1

Feed min

1,2 m/min

Feedrate max

13 m/min

Continuously variable feed

Sanding belt

Configuration of aggregates

c-u

Side of belt change

Left

HOMAG ECO mode

23 kW

Weight

3.215 kg

Space requirement Length

3 m

Space requirement Width

2,15 m

Space requirement Height

2,2 m
