FORMAT 4 PROFIT H 22 FORMAT 4 PROFIT H 22

Specifications

Working dimension X

3.060 mm

Working dimension Y

1.260 mm

Working dimension Z

100 mm

Number of milling spindles

1

Main motor power

9 kW

Rotation speed max

24.000 rpm

Torque support

C-axis

Tool clamping system

HSK-F63

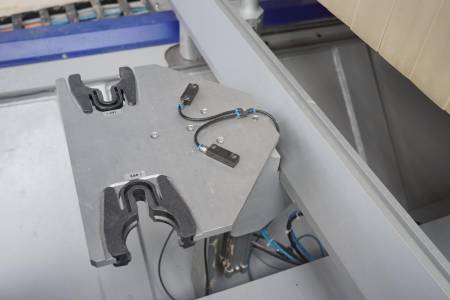

Tool changer positions

11

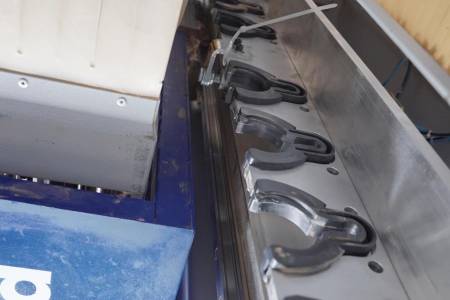

Mitfahrender Linearwechsler

14

Horizontal drilling spindles in X

4

Horizontal drilling spindles in Y

2

Groove saw

in X-direction

Cantilever machine

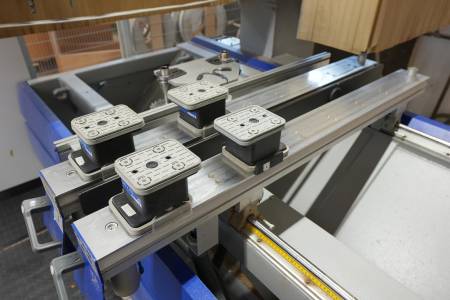

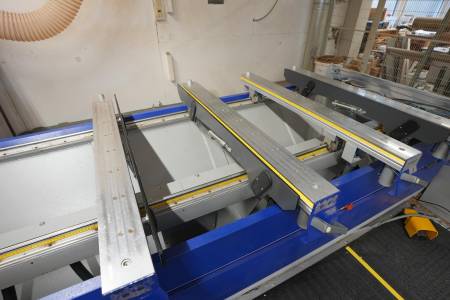

Pod and rail table

Number of consoles

6

Pneumatic pipe connectors

Yes, central

Positioning aid

1

Capacity vacuum pump

90 m³/h

Safety device

Safety mat

Interface for .dxf data

15 kW

Weight

2.960 kg

Space requirement Length

6,4 m

Space requirement Width

4,5 m

Space requirement Height

2,4 m
