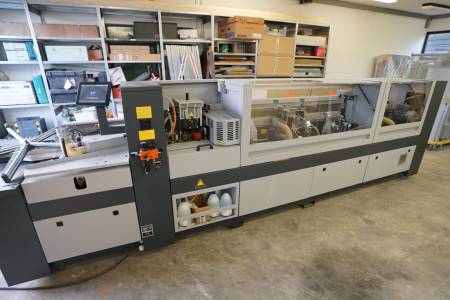

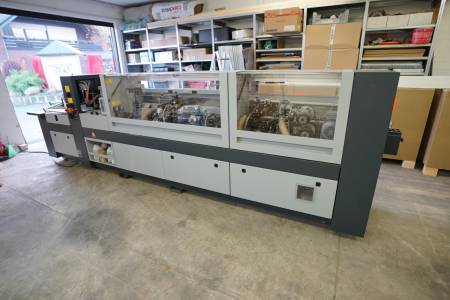

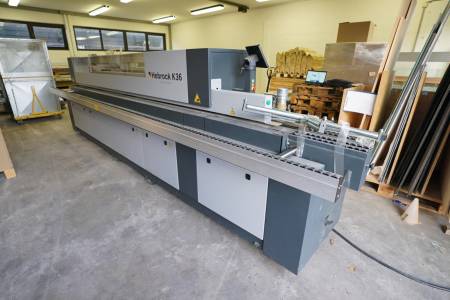

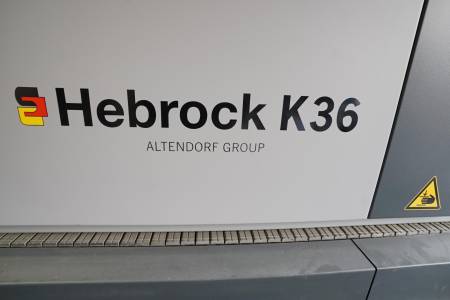

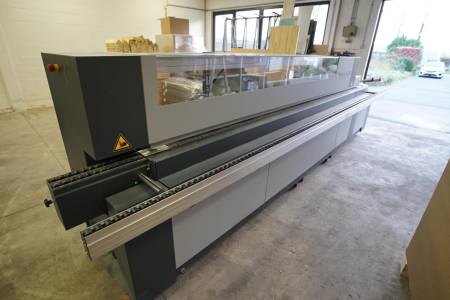

HEBROCK K 36 HEBROCK K 36

Specifications

Edgeband thickness max

3 mm

Panel thickness max

60 mm

Thickness of coiled edgeband max

3 mm

Workpiece length min

200 mm

Workpiece width min

80 mm

Feedrate max

10 m/min

Electromotoric height adjustment

Hot air

HEBROCK airtronic

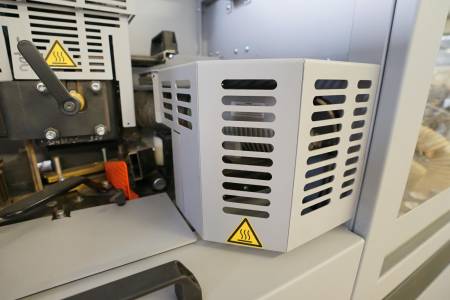

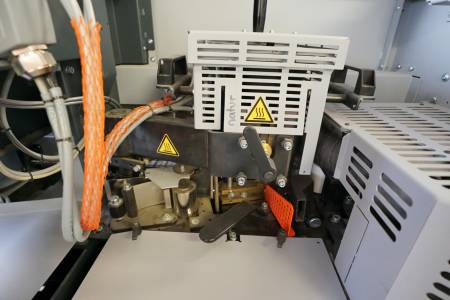

glue pot above feeding chain

Quick-change glue pot

1 motor

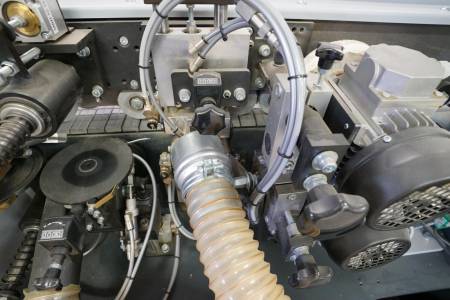

Flush/radius/chamfer milling units

1

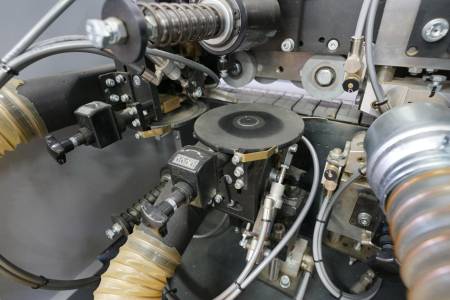

Corner rounding unit

1 motor

Scraper unit

Profile scraper, Flat scraper

Buffing unit

pneumatic

Quick-change aggregates

Yes

Type

Right-side machine

Machine length

5.250 mm

Automatic central lubrication

10,6 kW

Weight

1.700 kg

Space requirement Length

5,25 m

Space requirement Width

1,25 m

Space requirement Height

1,45 m
