HOMAG BMG 311 /42/F/K Venture HOMAG BMG 311 /42/F/K Venture

Specifications

Working dimension X

4.375 mm

Working dimension Y

1.550 mm

Working dimension Z

270 mm

Independent Z-axes

2

Number of milling spindles

1

Milling spindle liquid-cooled

10 kW

Rotation speed max

24.000 rpm

Torque support

Yes

5th axis

HSK-F63

Tool changer positions

25

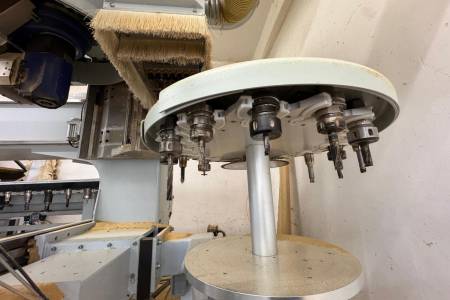

Disc tool changer 14-fold

12

Horizontal drilling spindles in X

2

Horizontal drilling spindles in Y

2

Groove saw

90° turnable

Gantry machine

Yes

Machine table

Pod and rail table

Number of consoles

8

Pneumatic pipe connectors

Yes

Positioning aid

2

Capacity vacuum pump

126 m³/h

Safety device

Bumper

Chip conveyor

7,8 m

Space requirement Width

4,7 m

Space requirement Height

2,8 m
