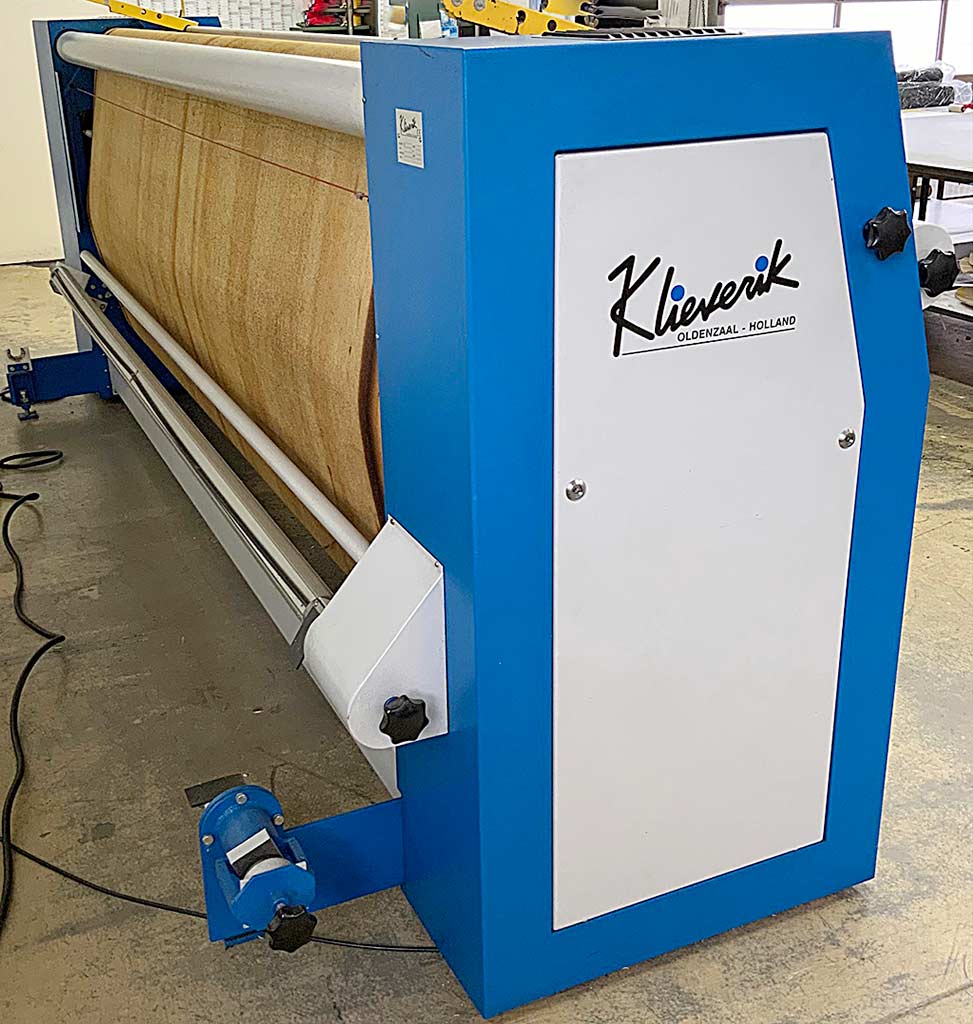

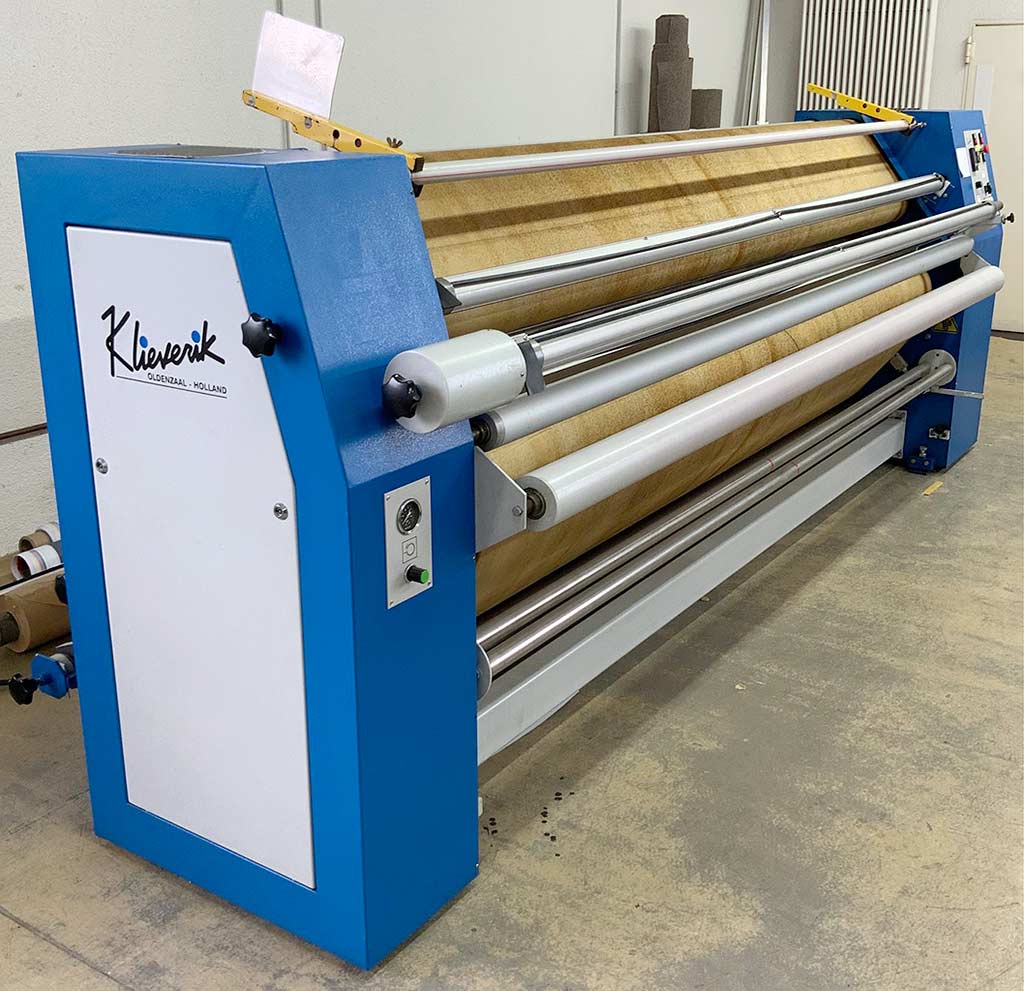

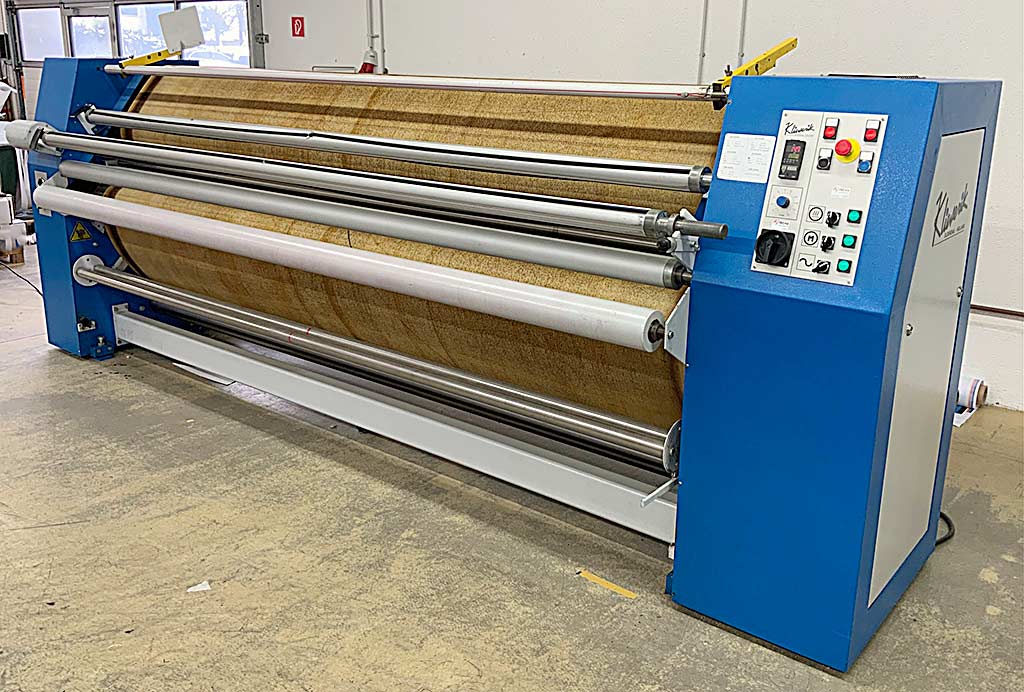

Klieverik GTC81-3400 Calender - Image 1
1 / 5

Klieverik GTC81-3400 Calender

Manufacturer
Klieverik
Model
GTC81-3400
Type
Calender
Year
2005
Category
Textile machinery
Sub-category
Periphery machines
Price: Upon request

Specifications

Overview

Klieverik roll-to-roll sublimation and transfer printing calendar

Technical Specifications

Media width
3200 mm
Max. working width
3200 mm
Heating cylinder diameter
195 mm
Max. temperature
220 °C
Process speed
1.25 m/min
Production capacity
approx. 135 m²/h

Weight & Dimensions

Machine dimensions X/Y/Z
approx. 4150 mm / 1200 mm / 1550 mm
Weight
approx. 1900 kg

Documentation

Documentation available

Interested in this machine?

Get in touch with the seller to find out more, discuss pricing, or arrange a viewing.

Contact Seller

Optional - helps us improve (not shared with seller)

Know someone who might be interested?

Share this machine with colleagues or friends

Share this machine

AI Description

Beta

Capabilities

The Klieverik GTC81-3400 is a roll-to-roll calendar designed for sublimation and transfer printing applications. With a 3200mm working width and heating cylinder reaching 220°C, it applies heat and pressure to transfer designs onto textiles and synthetic materials. Operating at 1.25m/min, it delivers approximately 135m²/h production capacity—suitable for both sample production and small to medium-volume runs.

Industries & Uses

Textile printers, fashion manufacturers, home textile producers, and promotional product companies rely on calendars like this to create vibrant, durable printed fabrics. It's ideal for businesses moving beyond screen printing or looking to expand into sublimation work, which offers superior color vibrancy and durability on polyester and blended materials.

What to Check When Buying

When inspecting this 2005 model, check the heating cylinder for surface damage, scoring, or uneven wear—these directly affect print quality. Request maintenance records, particularly for the roller system and heating elements. Verify that temperature control remains precise and consistent across the 3200mm width. Test the feed mechanism and pressure rollers for smooth operation. Ask about recent servicing, spare parts availability, and whether technical support is accessible. Given the machine's age, budget for potential updates to seals and electrical components.

This description is AI-generated and is intended as a general guide only. As with all AI-generated content, it may contain inaccuracies. Please verify all details directly with the seller before making a purchasing decision.
