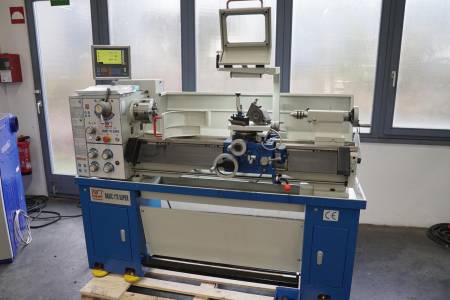

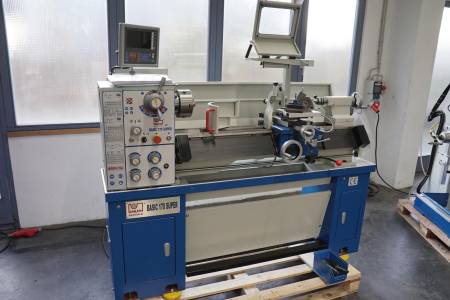

KNUTH BASIC 170 SUPER KNUTH BASIC 170 SUPER

Specifications

Umlaufdurchmesser über Bett

330 mm

Umlaufdurchmesser über Schlitten

198 mm

Point width

800 mm

Spindle bore

38 mm

Spindelkonus

MK 5

Spindle rotation speed min.

70 rpm

Spindle rotation speed max.

2.000 rpm

Rotation speed steps

8

Main motor power

1,7 kW

Longitudinal feed min

0,022 mm/rev

Longitudinal feed max

1,551 mm/rev

Cross feed min.

0,026 mm/rev

Cross feed max.

2,713 mm/rev

Thread pitch metric min

0,4 mm

Thread pitch metric max

7 mm

Thread inch min

4

Thread inch max

56

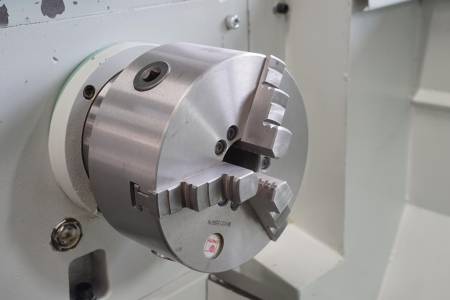

Jaw chuck

Three-jaw chuck

Diameter jaw chuck

160 mm

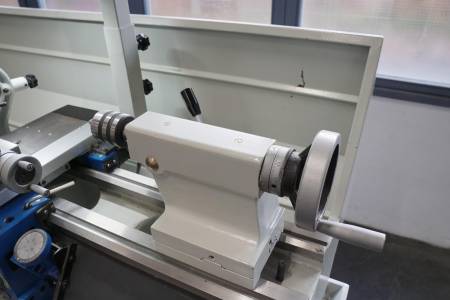

Tailstock

MK 3

Pinolenhub

100 mm

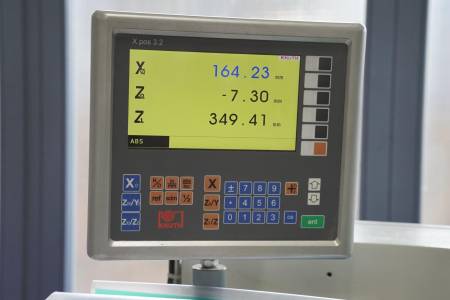

Digital readout

170 mm

Measuring system X-axis

95 mm

Messsystem Oberschlitten

700 kg

Space requirement Length

1,85 m

Space requirement Width

0,7 m

Space requirement Height

1,8 m
