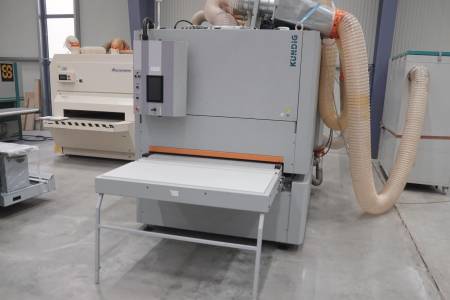

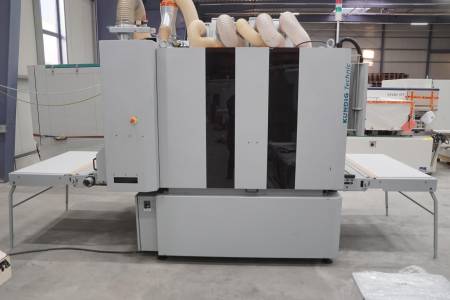

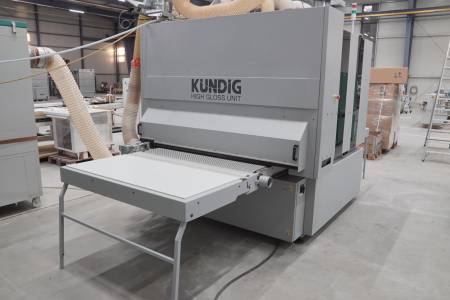

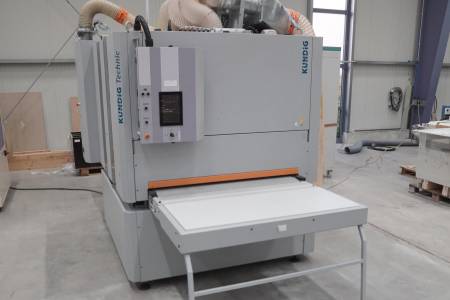

KÜNDIG TECHNIC CROSS -4 1350 REEdH-LL KÜNDIG TECHNIC CROSS -4 1350 REEdH-LL

Specifications

Sanding width

1.350 mm

Workpiece thickness min

3,5 mm

Passage height max

200 mm

Protection against workpiece over-thickness

4

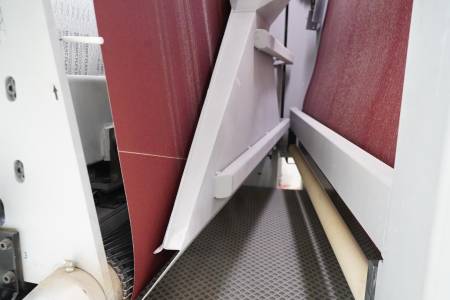

Cross-belts

1

Cross belt speed adjustable

continuously variable

Sanding rollers

1

Hardness grade of roller in ° shore

85 Shore

Sanding pads total

2

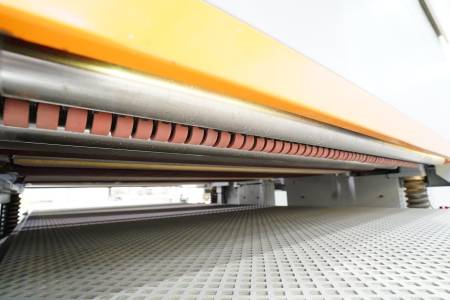

Segmental pressure pad

electronic

Segment width

22 mm

Jump-in control

electropneumatically

Jump-in control

mechanical

Main motor power

18,5 kW

Sanding belt length

2.620 mm

Belt speed max

19 m/s

Adjustable sanding belt speed

continuously variable

Aggregates with frequency inverters

3

Feed min

2 m/min

Feedrate max

15 m/min

Continuously variable feed

Workpieces, Sanding belt

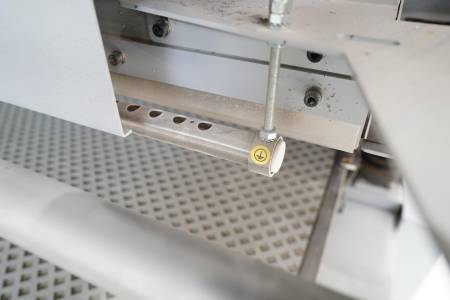

Ionisiereinrichtung

Yes

Configuration of aggregates

w-s-s-q

Side of belt change

Left

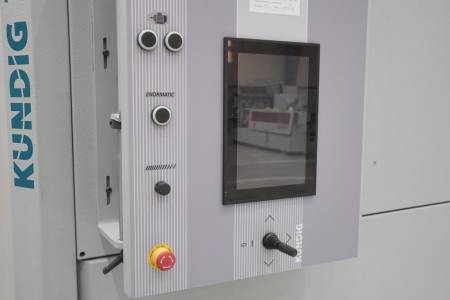

Control

72 kW

Space requirement Length

4,8 m

Space requirement Width

3,4 m

Space requirement Height

2,6 m
