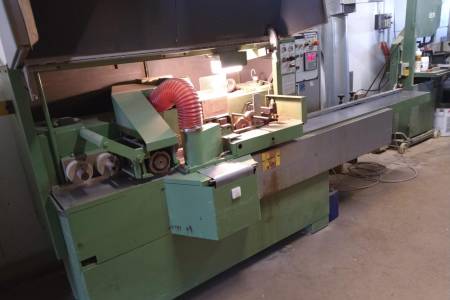

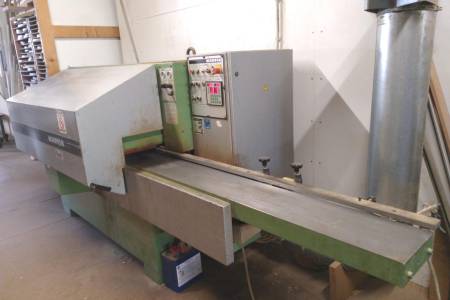

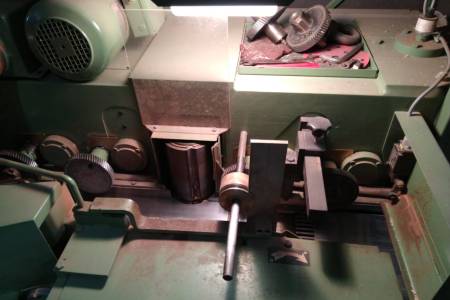

MARTIN T 90 MARTIN T 90

Specifications

Working width

260 mm

Planing height

160 mm

Number of spindles

4

Bottom spindles

1

Right spindles

1

Spindles left

1

Spindles top

1

Spindle configuration

b-r-l-t

Spindle rotation speed max 1/min

6.000 rpm

Number of cutterheads

4

Feedrate max

25 m/min

Continuously variable feed

5,5 kW

Motoric adjustment

Planing width, Planing height

Infeed table length

2.000 mm

Weight

2.400 kg

Space requirement Length

3,5 m

Space requirement Width

1,3 m

Space requirement Height

1,53 m
