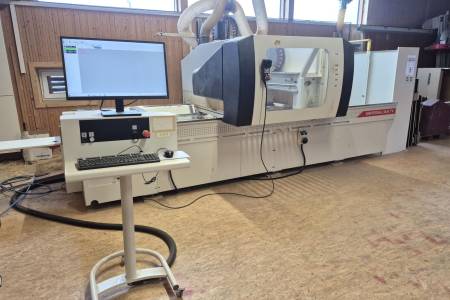

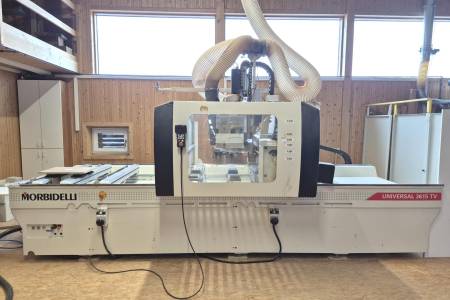

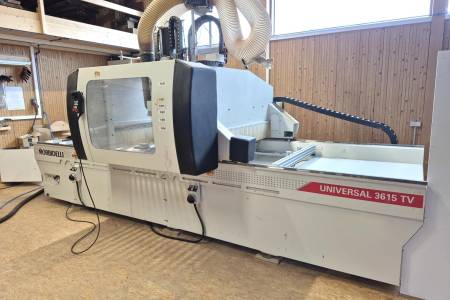

MORBIDELLI UNIVERSAL TV 3615 MORBIDELLI UNIVERSAL TV 3615

Specifications

Working dimension X

3.660 mm

Working dimension Y

1.535 mm

Working dimension Z

130 mm

Independent Z-axes

2

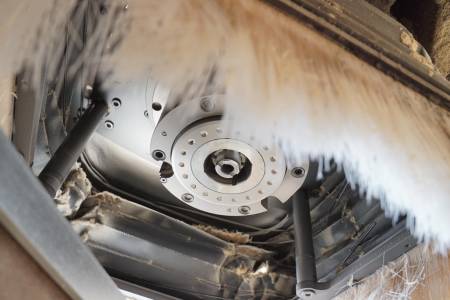

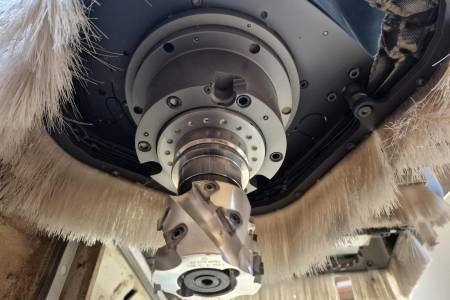

Number of milling spindles

1

Main motor power

8,5 kW

Rotation speed max

24.000 rpm

Torque support

C-axis

Tool clamping system

HSK-F63

Tool changer positions

12

Disc tool changer

12

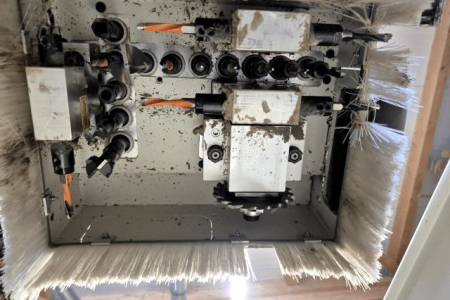

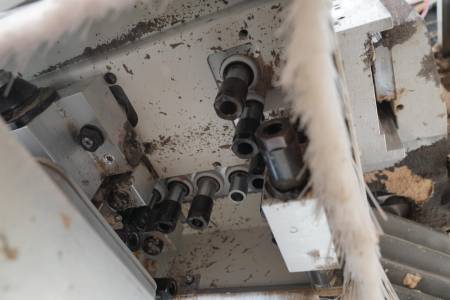

Horizontal drilling spindles in X

4

Horizontal drilling spindles in Y

2

Groove saw

in X-direction

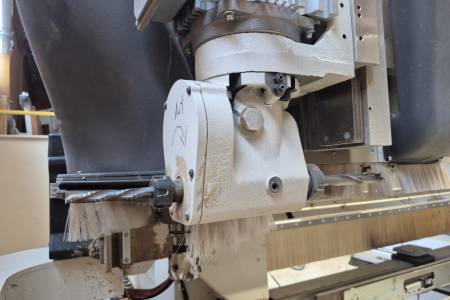

Lock recess milling aggregate

permanently attached, double-sided

Gantry machine

einseitig angetrieben

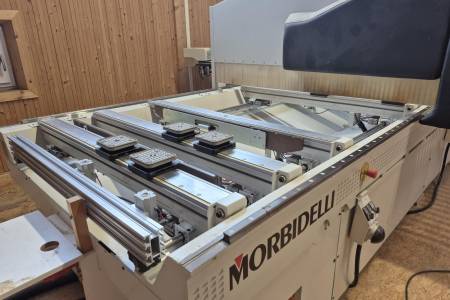

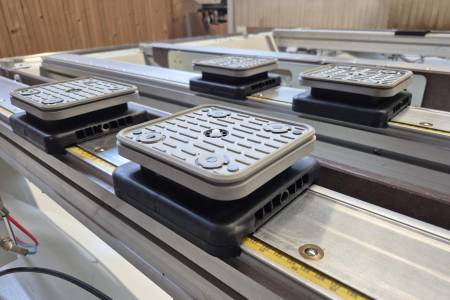

Machine table

Pod and rail table

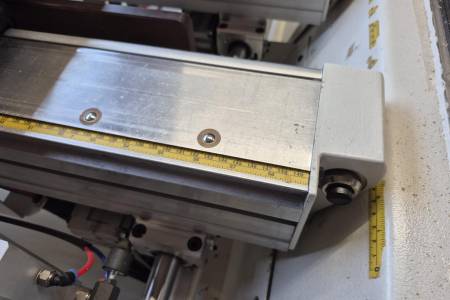

Number of consoles

6

Positioning aid

1

Capacity vacuum pump

90 m³/h

Safety device

Bumper

Interface for .dxf data

4.335 kg

Space requirement Length

7,4 m

Space requirement Width

3,6 m

Space requirement Height

2,6 m
