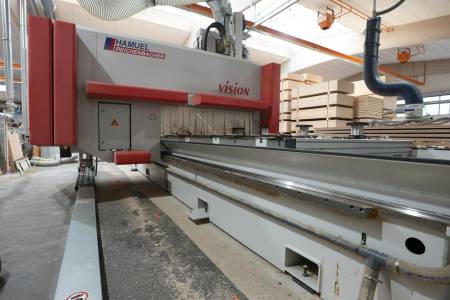

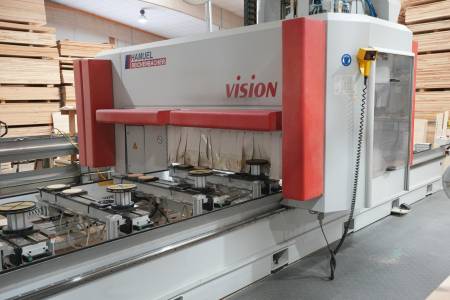

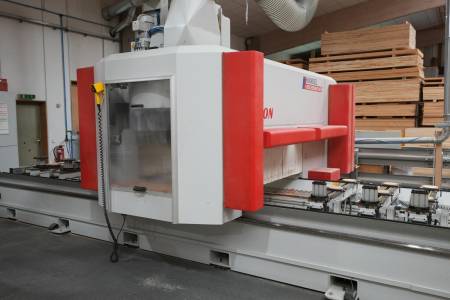

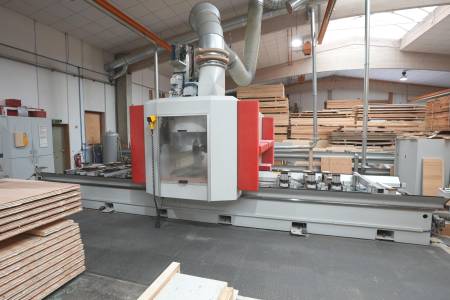

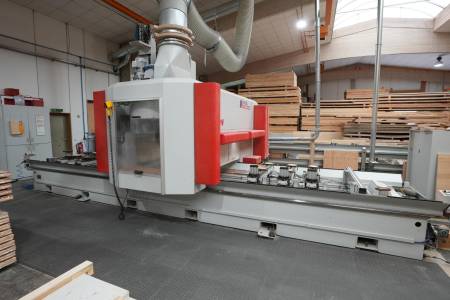

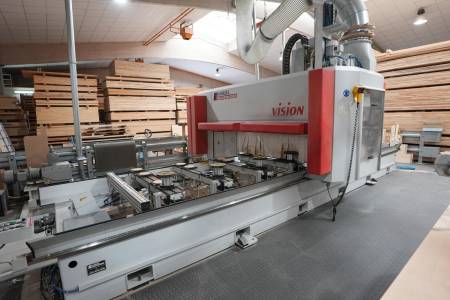

REICHENBACHER VISION 2 5A REICHENBACHER VISION 2 5A

Specifications

Working dimension X

6.140 mm

Working dimension Y

1.600 mm

Working dimension Z

400 mm

Number of milling spindles

1

Milling spindle liquid-cooled

18 kW

Rotation speed max

24.000 rpm

Torque support

Yes

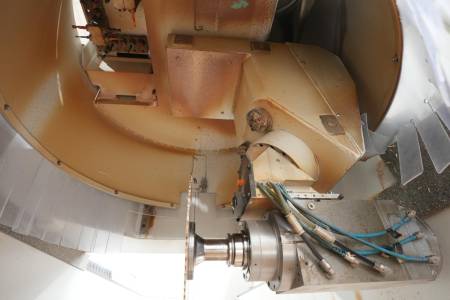

5th axis

HSK-F63

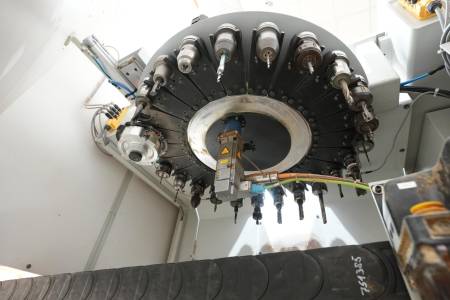

Tool changer positions

25

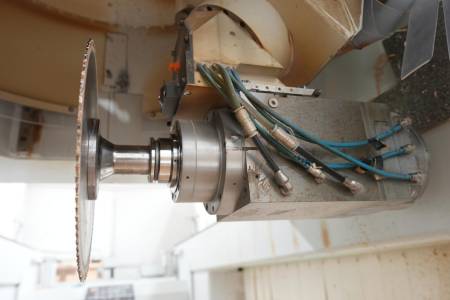

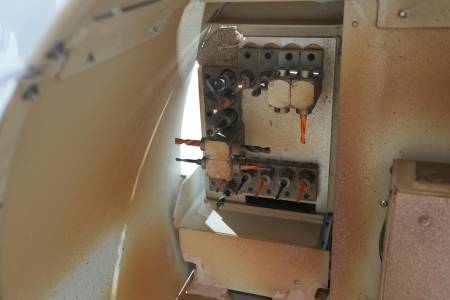

Disc tool changer

11

Horizontal drilling spindles in X

4

Horizontal drilling spindles in Y

4

REICHENBACHER MBG 15

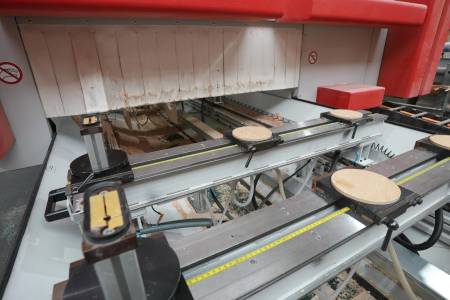

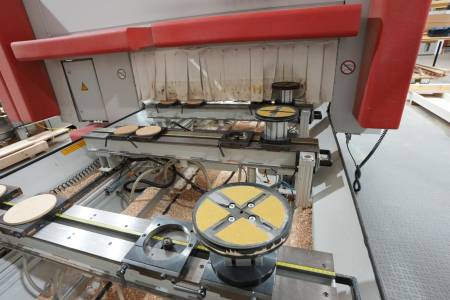

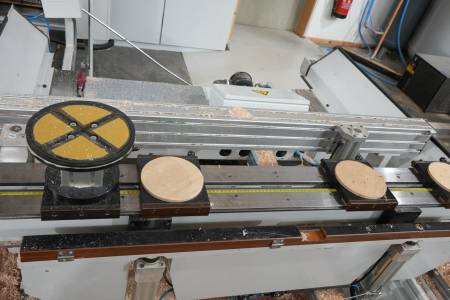

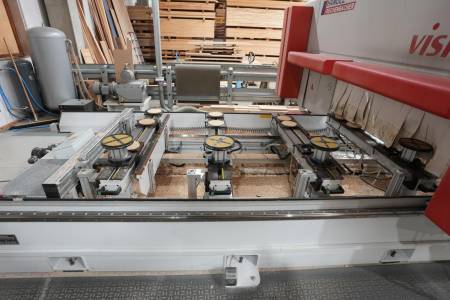

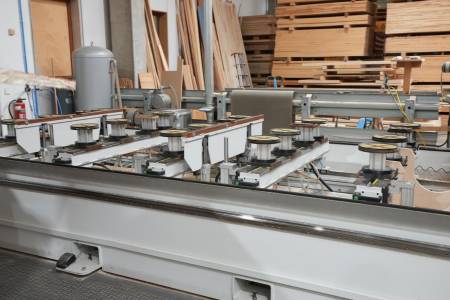

Pod and rail table

Stop for top layer protrusion

8

Pneumatic pipe connectors

central

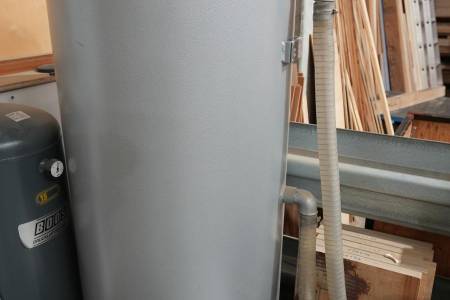

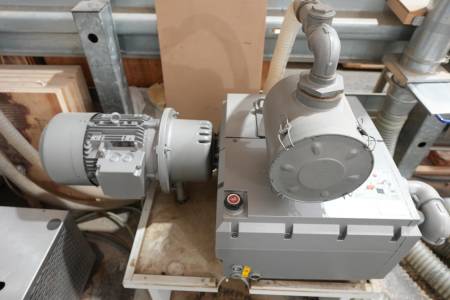

Vacuum pump

1

Capacity vacuum pump

250 m³/h

Safety device

Bumper

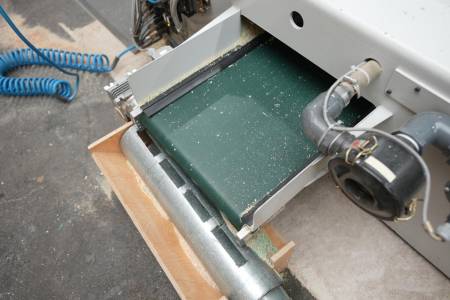

Chip conveyor

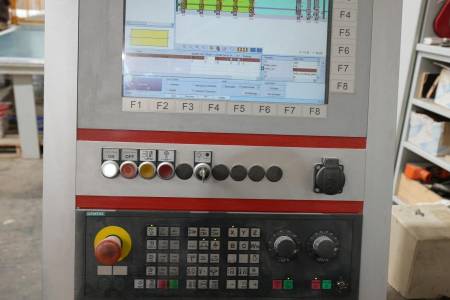

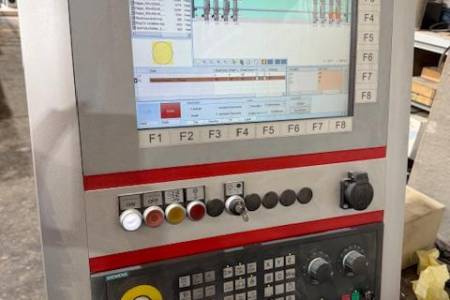

SIEMENS SINUMERIK 840 D SL, SIEMENS SINUMERIK PCU 50

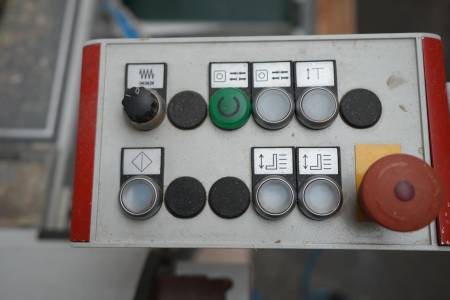

Hand-controlled machine

9.000 kg

Space requirement Length

10,3 m

Space requirement Width

4,6 m

Space requirement Height

3,2 m
