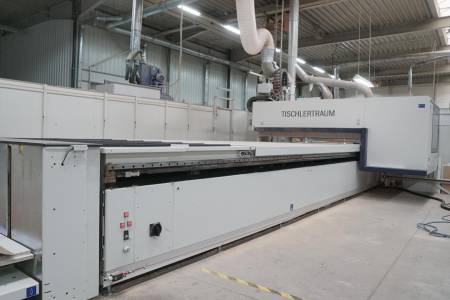

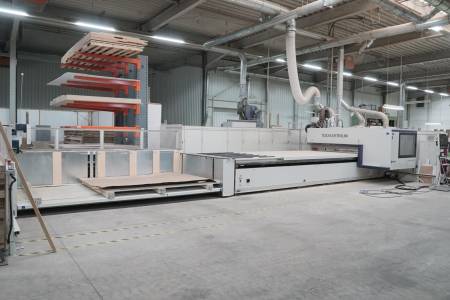

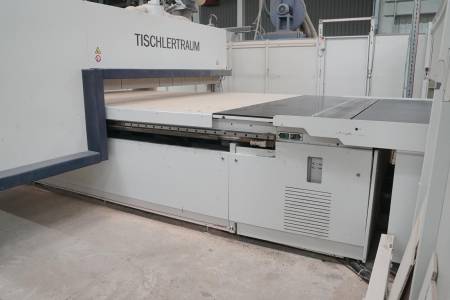

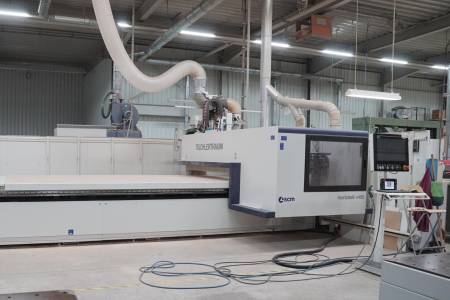

SCM MORBIDELLI X400 Cell SCM MORBIDELLI X400 Cell
Manufacturer
SCM
Model
MORBIDELLI X400 Cell
Type
SCM MORBIDELLI X400 Cell
Year
2020
Category
Woodworking machinesSub-category
5-axis nesting cellVideos
1
Est. market value
€190.000–€220.000
Specifications
Specifications
- Working dimension X
- 4.200 mm
- Working dimension Y
- 2.200 mm
- Working dimension Z
- 180 mm

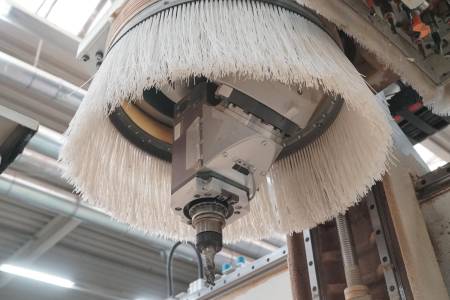

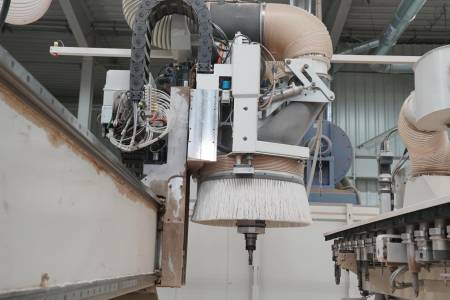

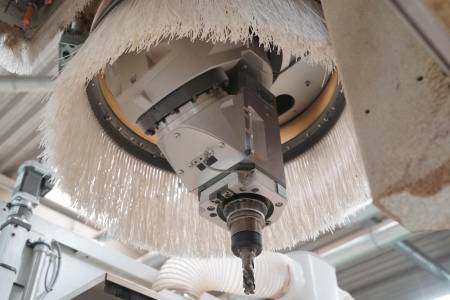

- Number of milling spindles
- 1
- Main motor power
- 13,5 kW
- Rotation speed max
- 24.000 rpm
- Torque support
- Yes
- 5th axis
- HSK-F63
- Tool changer positions
- 21
- SCM Tool changer FAST 18
- 21

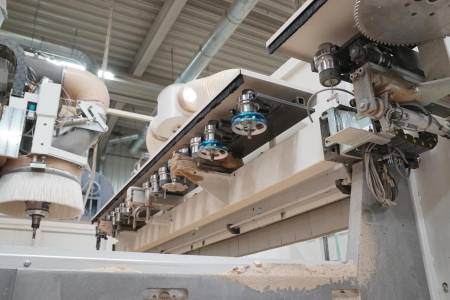

- Horizontal drilling spindles in X
- 6
- Horizontal drilling spindles in Y
- 4

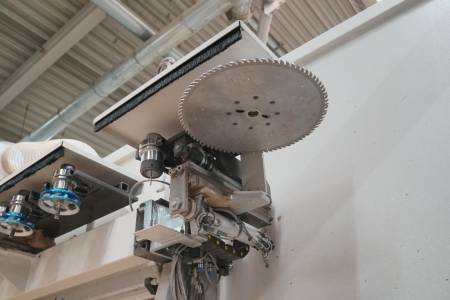

- Groove saw
- in X-direction

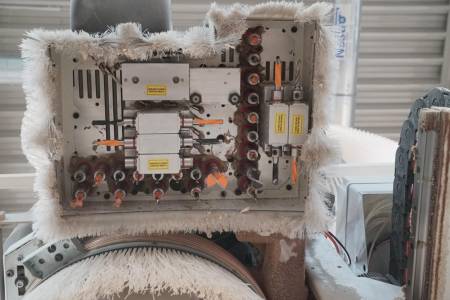

- SCM Drilling aggregate F 31 LTC
- Yes

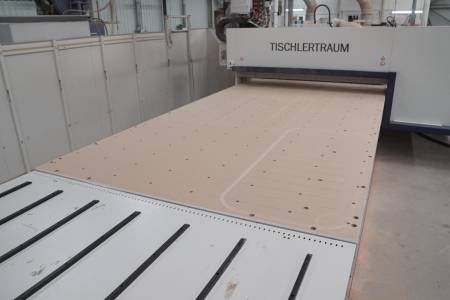

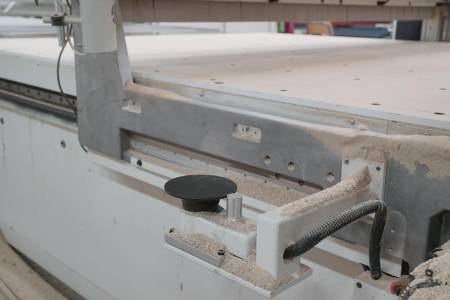

- Machine table
- Matrix table
- SCM Machine table HE Multi function table
- 30
- Positioning aid
- 1

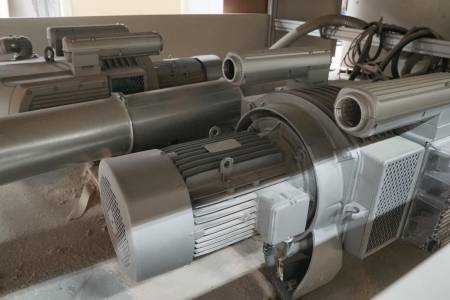

- Capacity vacuum pump
- 500 m³/h
- Special workpiece clamping system
- 10
- Suitable for nesting

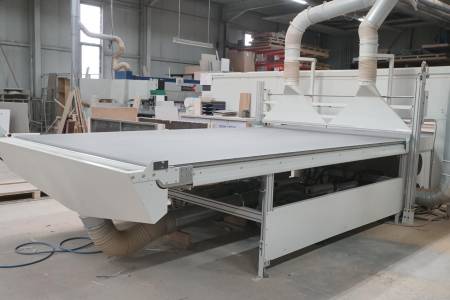

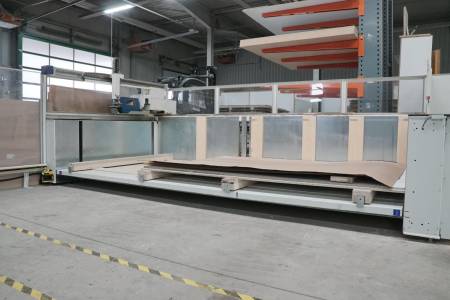

- Lift table
- Outfeed
- Conveyor belt

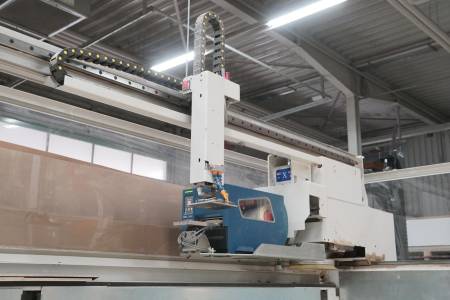

- Labelling
- automatic

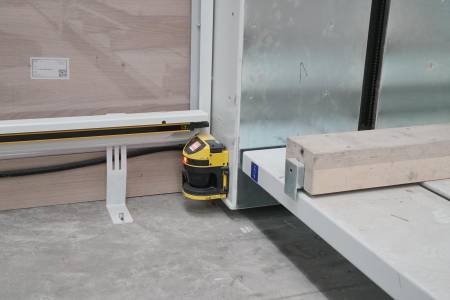

- Safety device
- Light barrier, Bumper
- SCM Pro-Speed
- 8.860 kg
