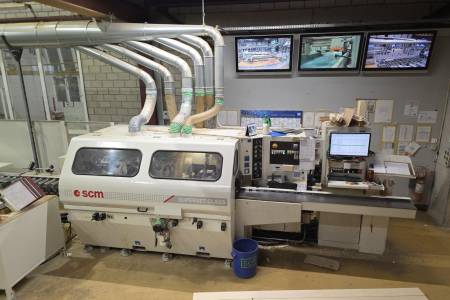

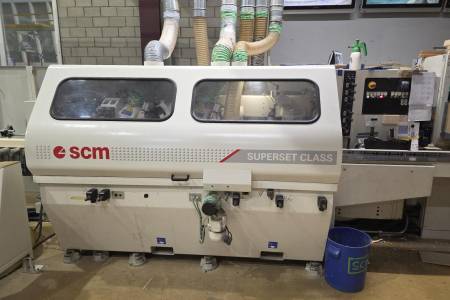

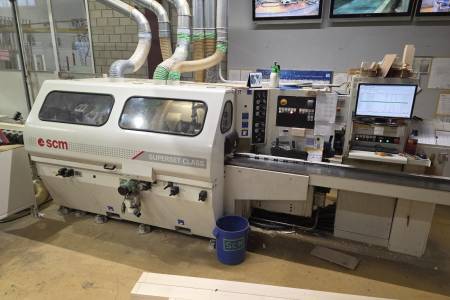

SCM SUPERSET CLASS SCM SUPERSET CLASS

Specifications

Working width

240 mm

Planing height

120 mm

Number of spindles

6

Bottom spindles

2

Right spindles

1

Spindles left

1

Spindles top

2

Spindle configuration

b-r-l-t-t-b

Spindle rotation speed max 1/min

6.000 rpm

Spindle diameter

40 mm

Feedrate max

25 m/min

Continuously variable feed

4 kW

Main motor power

7,5 kW

Seperate motor per spindle

Planing height, Planing width

Infeed table length

2.400 mm

Table rollers

driven

Lubrication pump

automatic

Pneumatic top pressure

Cardanic
