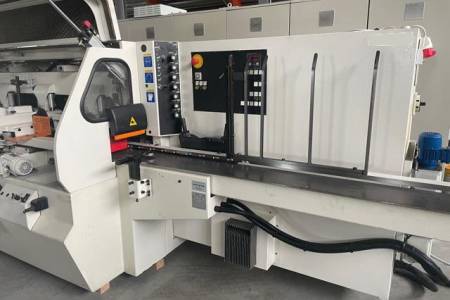

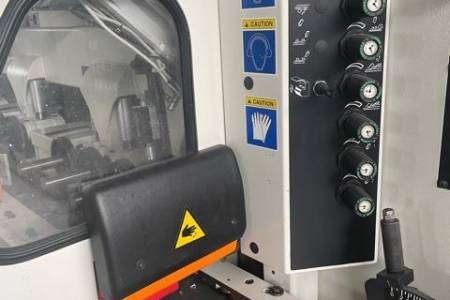

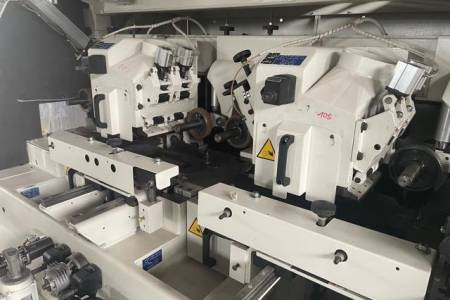

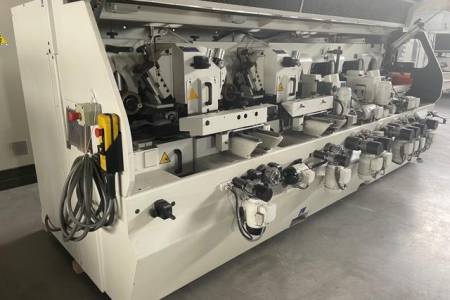

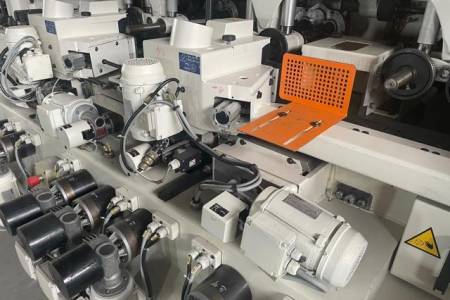

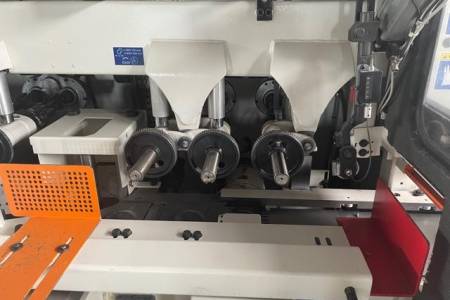

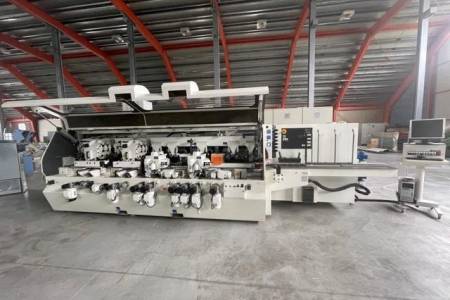

SCM TOPSET XL SCM TOPSET XL

Specifications

Working width

240 mm

Planing height

120 mm

Number of spindles

9

Bottom spindles

3

Right spindles

2

Spindles left

2

Spindles top

2

Spindle configuration

b-r-l-r-l-t-b-t-b

Spindle rotation speed max 1/min

8.300 rpm

Spindle diameter

40 mm

Feedrate max

36 m/min

Continuously variable feed

5,5 kW

Main motor power

12 kW

Seperate motor per spindle

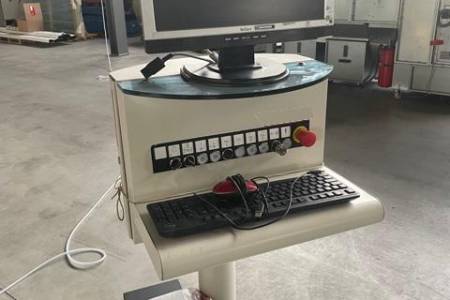

Programmable controller

Infeed table length

2.500 mm

Lubrication pump

automatic

Pneumatic top pressure

Cardanic

Infeed automatically

Magazine

ZIWO CL 15

NC-axis

CNC-axes

Yes

SCM SetUp

6.000 kg

Space requirement Length

6,3 m

Space requirement Width

1,62 m

Space requirement Height

1,655 m
