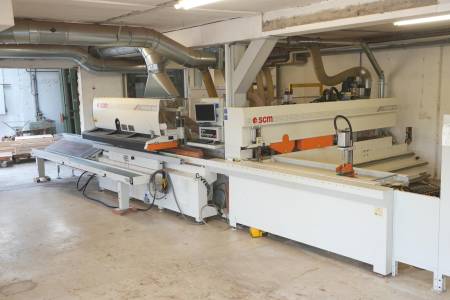

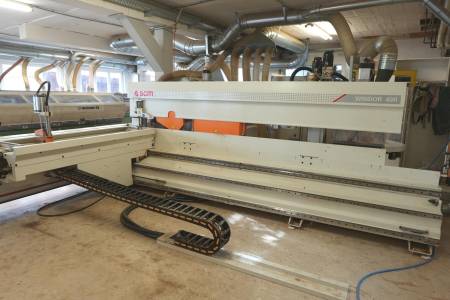

SCM WINDOR 40 R SCM WINDOR 40 R

Specifications

Workpiece length max

3.200 mm

Workpiece width max

200 mm

Workpiece thickness max

130 mm

Number of tenoning spindles

1

Number of moulding spindles

3

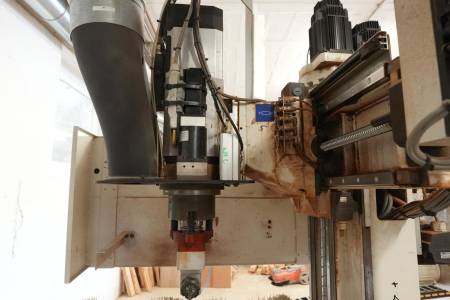

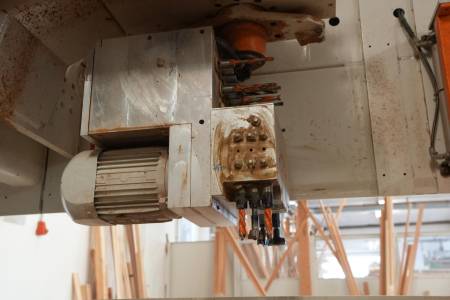

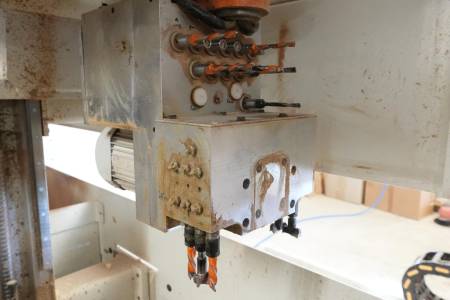

CNC router head

2

Cutting glazing beads

620 mm

Length of profiling spindle

320 mm

Length of downcut-milling spindle

320 mm

Spindle stroke total

575 mm

Spindle diameter

50 mm

Cutting circle of profiling tools

240 mm

Cutting circle of tenoning tools mm

370 mm

Spindle stroke stepless

NC-axes, pneumatic

Controlled length stop

electronic

Atelier window

Down-cut spindle

Automatic counter profile against tearing

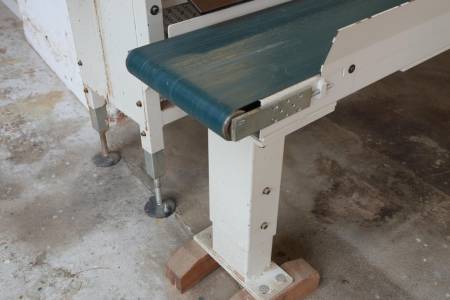

Longitudinal conveyor

Main motor power

11 kW

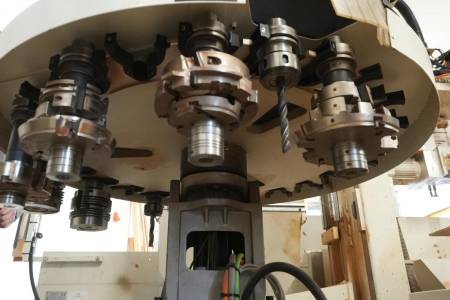

Tool changer

24

Tool clamping system

HSK-F63

Tool set for window production

IV 68, IV 78, IV 88, Holz-Alu

Feedrate max

15 m/min

Continuously variable feed

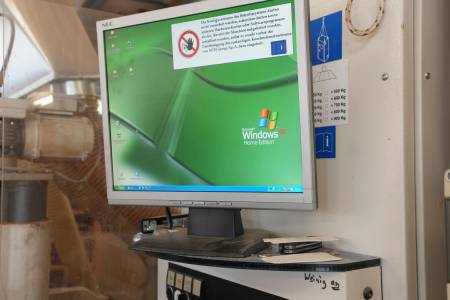

PC control

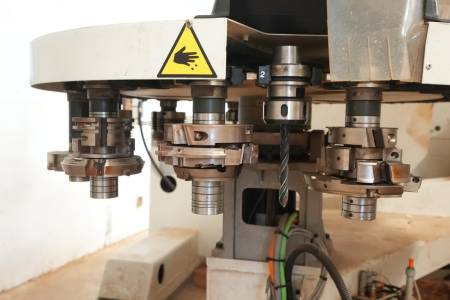

SCM Tool changer RAPID 24

10,6 m

Space requirement Width

6,5 m
