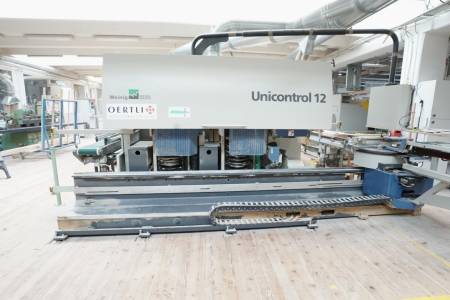

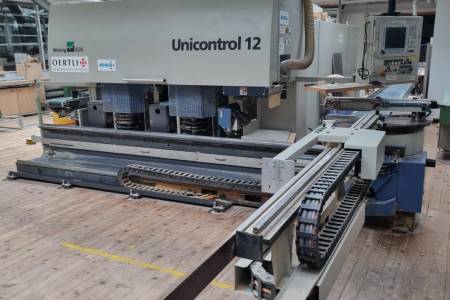

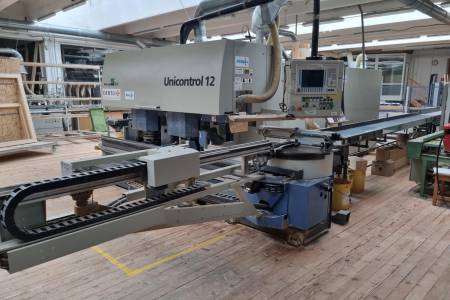

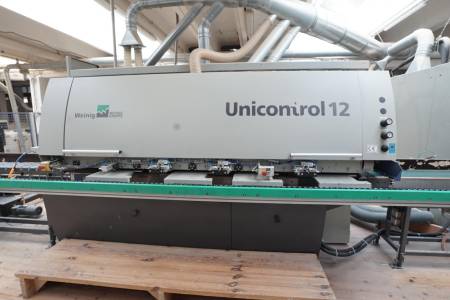

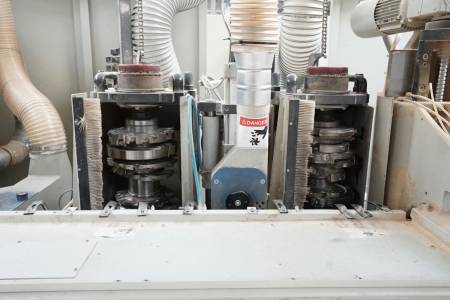

WEINIG UNICONTROL 12 WEINIG UNICONTROL 12

Specifications

Workpiece length max

2.600 mm

Workpiece width max

220 mm

Workpiece thickness max

100 mm

Number of tenoning spindles

2

Number of moulding spindles

3

Main motor power

11 kW

Spindles horizontal

1

Seperate fitting groove shaft

640 mm

Length of profiling spindle

320 mm

Length of fitting groove shaft

160 mm

Spindle diameter

50 mm

Cutting circle of profiling tools

232 mm

Cutting circle of tenoning tools mm

320 mm

Spindle stroke stepless

NC-axes

Controlled length stop

electronic

Atelier window

Down-cut spindle

Workpiece return

Reversing station

Tool set for window production

IV 68, IV 78, IV 88, IV 98, Holz-Alu, Haustüren

Feedrate max

18 m/min

Continuously variable feed

PC control

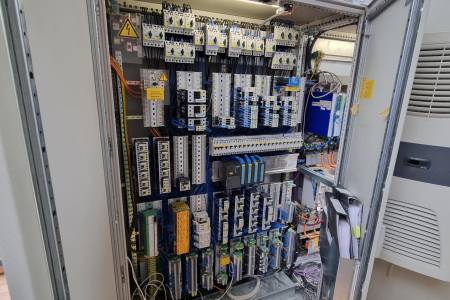

Control

SIEMENS SIMATIC PANEL PC
