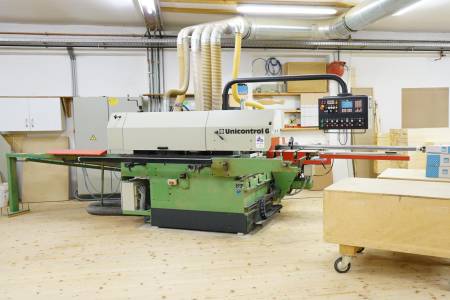

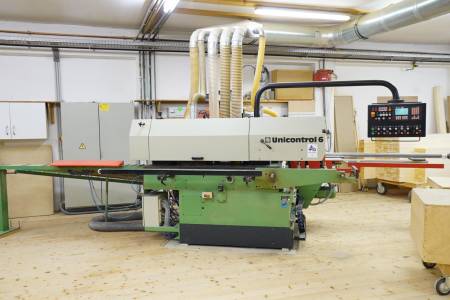

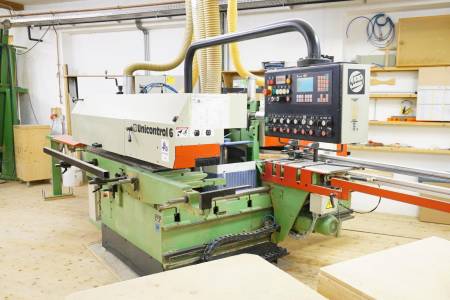

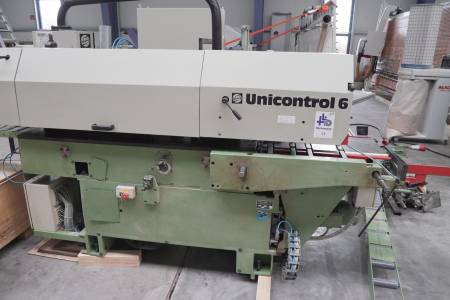

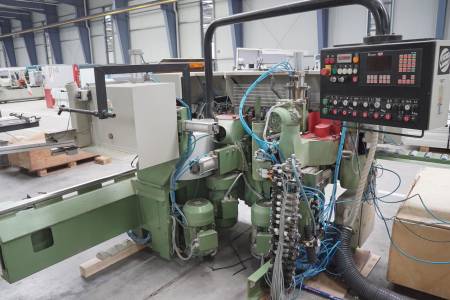

WEINIG UNICONTROL 6P WEINIG UNICONTROL 6P

Specifications

Workpiece length max

3.900 mm

Workpiece width max

220 mm

Workpiece thickness max

100 mm

Number of tenoning spindles

1

Number of moulding spindles

1

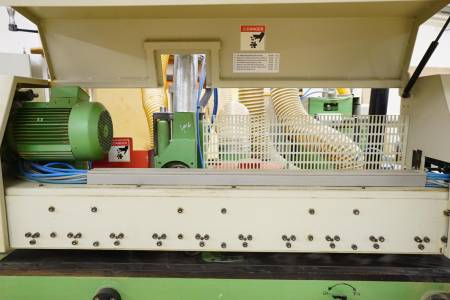

Main motor power

11 kW

Seperate fitting groove shaft

320 mm

Slot/pivot boundings

Right side

Automatic counter profile against tearing

320 mm

Length of downcut-milling spindle

120 mm

Constant stroke

100 mm

Spindle stroke total

200 mm

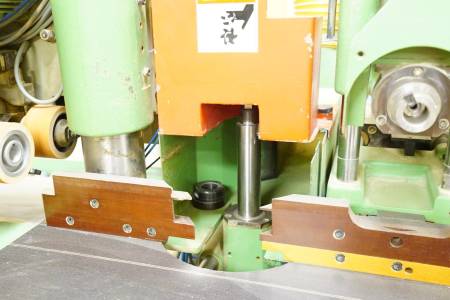

Spindle diameter

50 mm

Cutting circle of profiling tools

232 mm

Cutting circle of tenoning tools mm

320 mm

Atelier window

Down-cut spindle

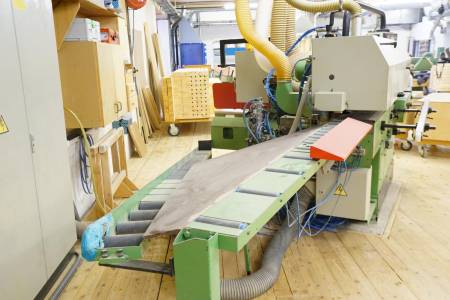

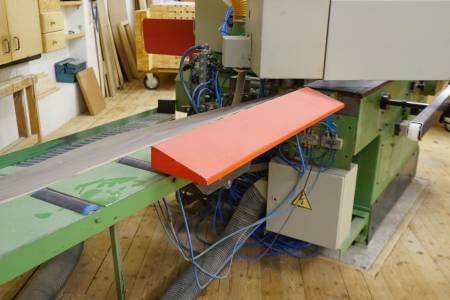

Workpiece return

Inclined roller conveyor

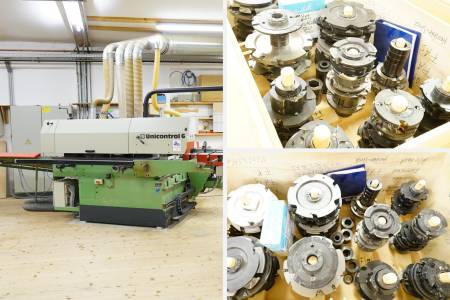

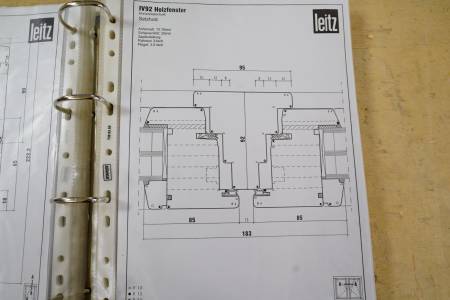

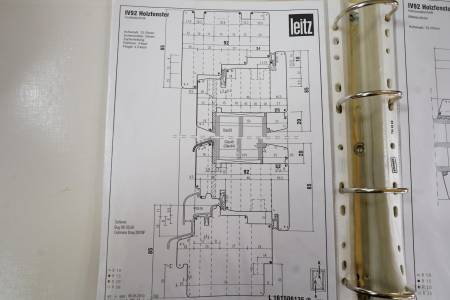

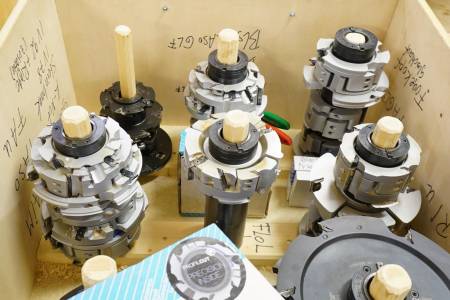

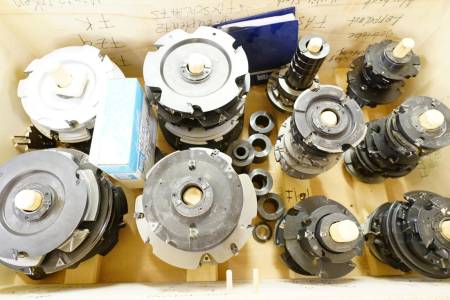

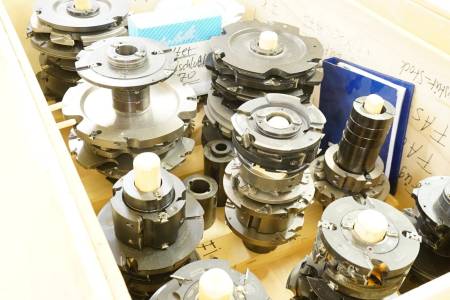

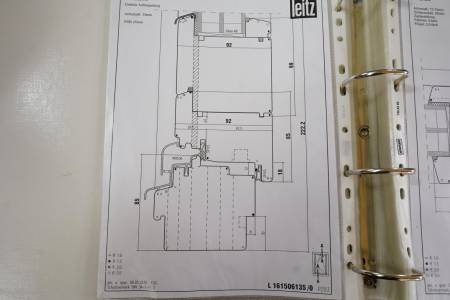

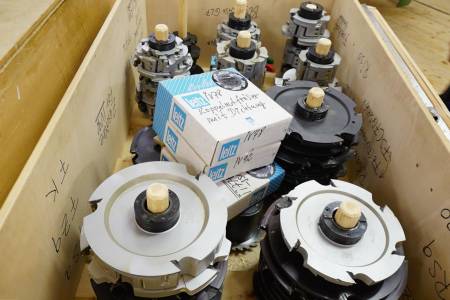

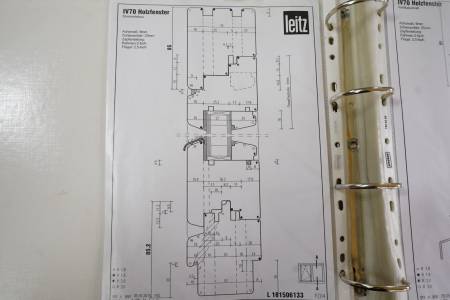

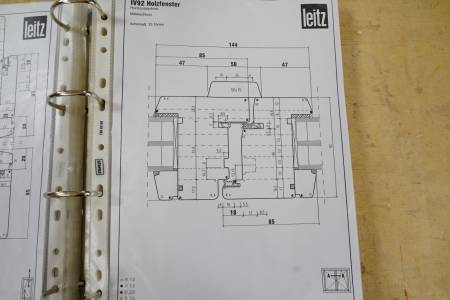

Tool set for window production

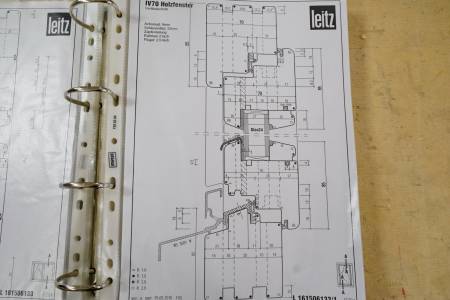

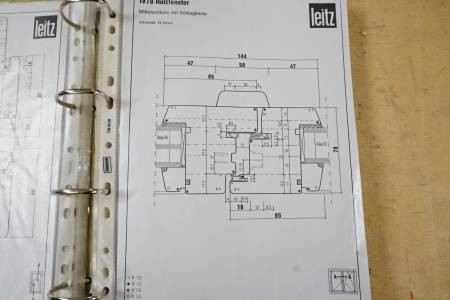

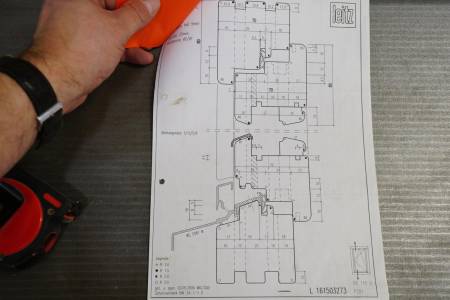

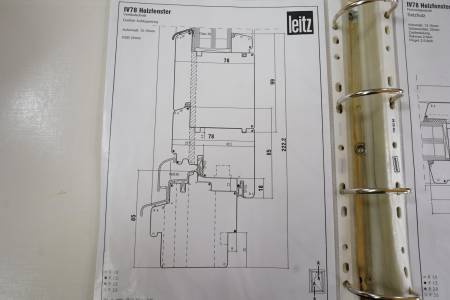

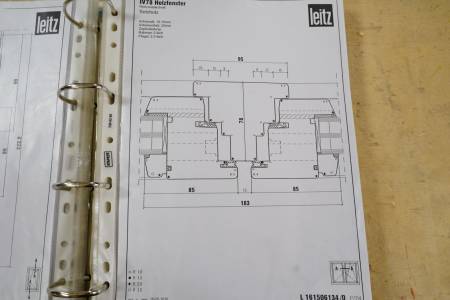

Yes, IV 78, IV 70, IV 92

Feedrate max

8 m/min

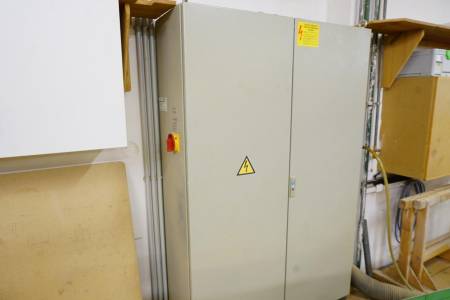

Control

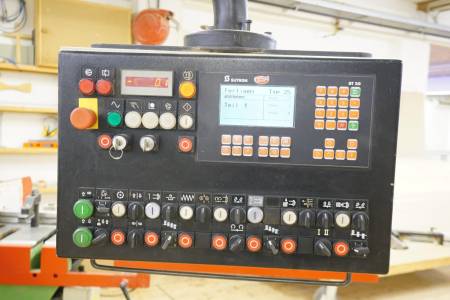

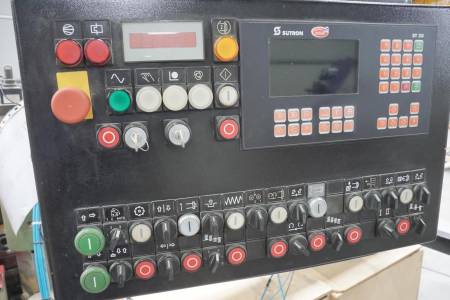

On- screen control

Double workpiece processing

4.630 kg

Space requirement Length

5 m

Space requirement Width

6,3 m

Space requirement Height

2 m
