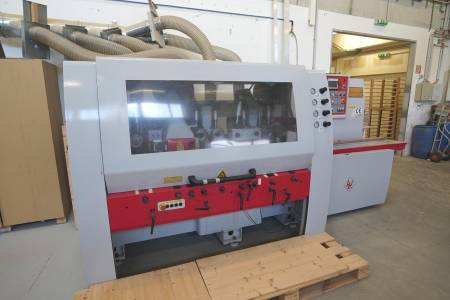

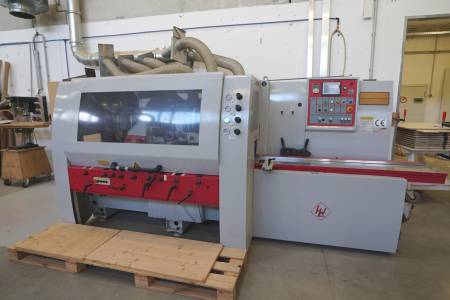

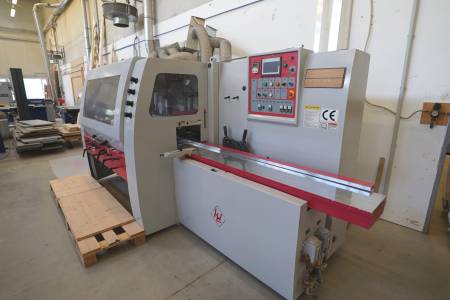

WINTER TIMBERMAX 5-23 WINTER TIMBERMAX 5-23

Specifications

Working width

230 mm

Planing height

160 mm

Number of spindles

5

Bottom spindles

2

Right spindles

1

Spindles left

1

Spindles top

1

Spindle configuration

b-r-l-t-b

Spindle rotation speed max 1/min

6.800 rpm

Spindle diameter

40 mm

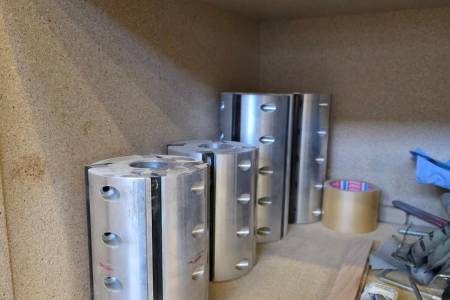

Number of cutterheads

4

Feedrate max

36 m/min

Continuously variable feed

4 kW

Main motor power

7,5 kW

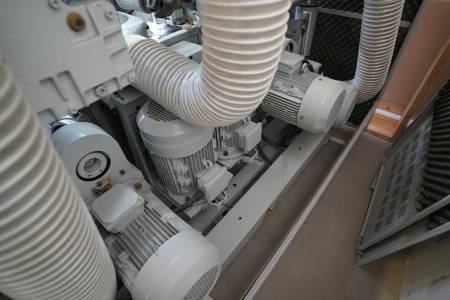

Seperate motor per spindle

Planing height

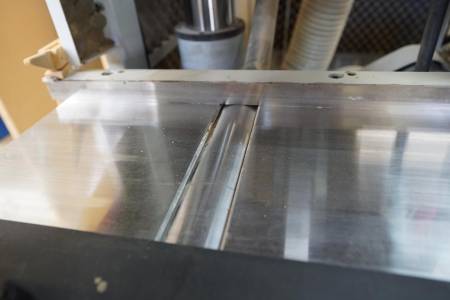

Surface of the machine table

Chromed

Infeed table length

2.000 mm

Table rollers

driven

Lubrication pump

manually

Pneumatic top pressure

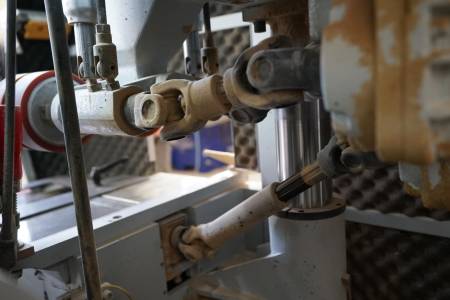

Cardanic

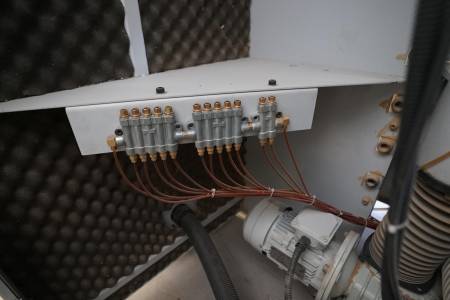

Manual central lubrication

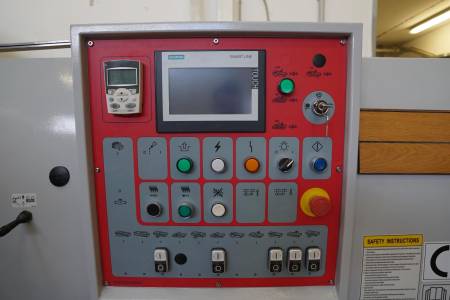

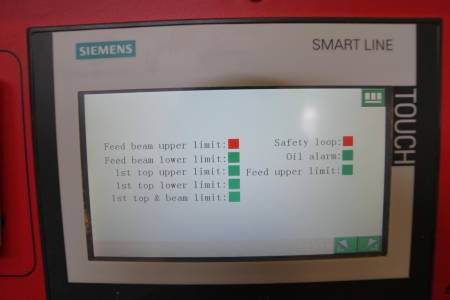

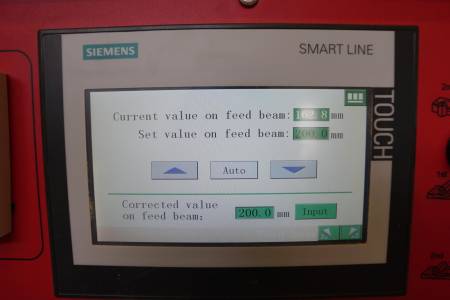

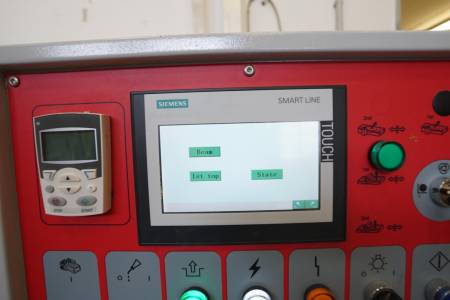

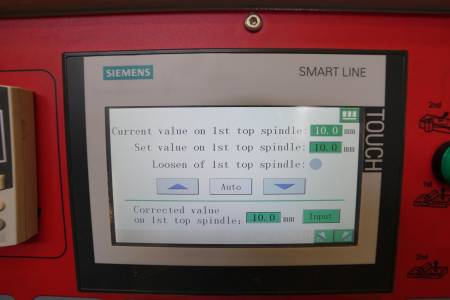

Touchscreen

Conformity marking

38,25 kW

Weight

3.800 kg

Space requirement Length

4,28 m

Space requirement Width

1,9 m

Space requirement Height

1,7 m
