Wire Drawing Plant Koch KHZ 6300

Germany

Description

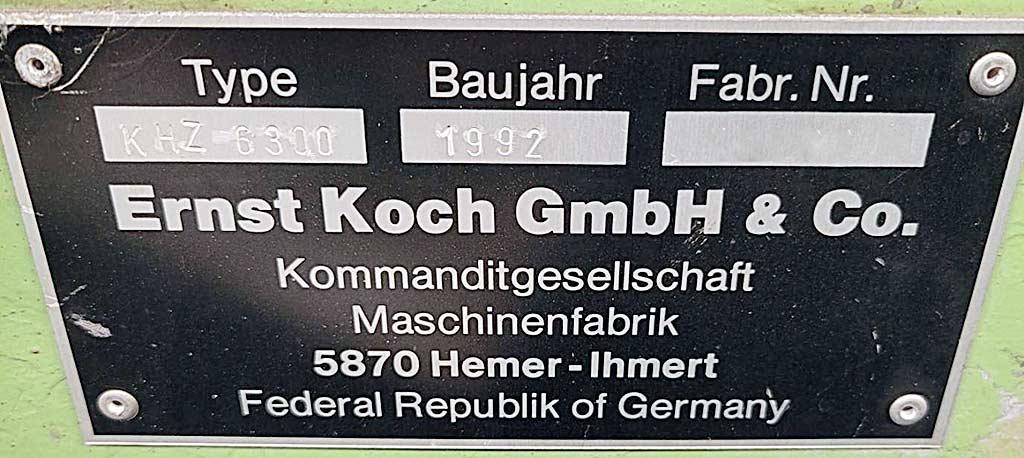

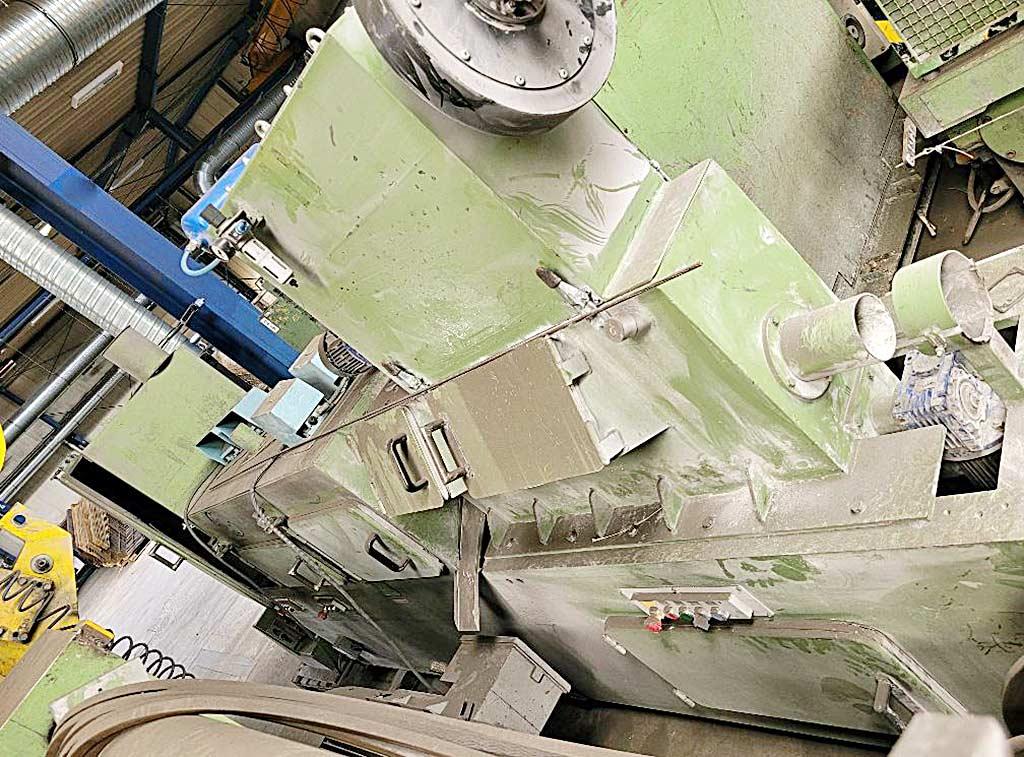

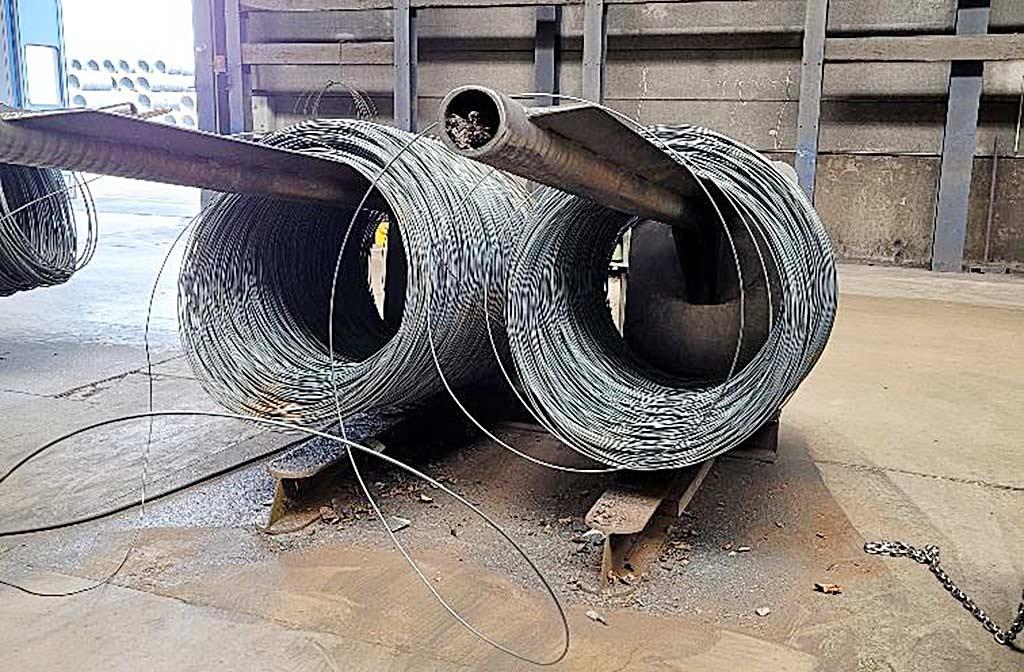

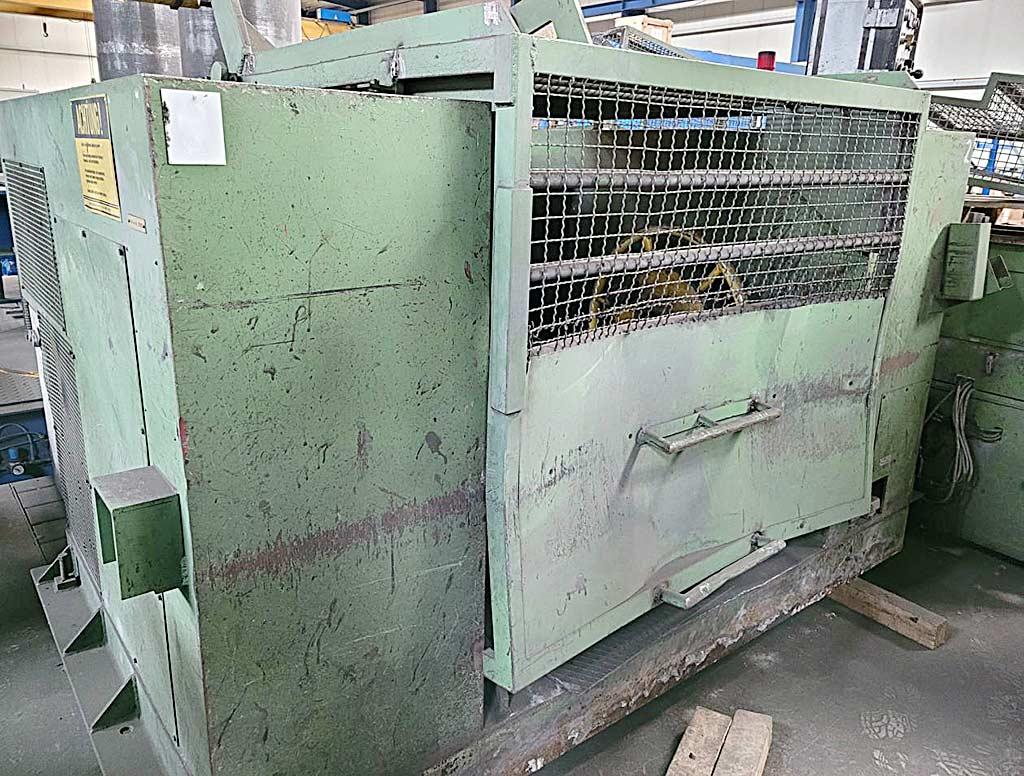

A wire drawing plant is available. 1) Wire rod pay-off, version: 2-fold. 2) Combination unit GSG 840, wire diameter min./max.: 5.5mm/16mm, wire type: wire rod, wire strength: 40-60daN/mm², crushing and bending rolls: Carbide inserts. 3) Dry coating unit BSG/T, filling: calcium stearate, consumption: approx. 350g/wire ton, drawing speed: 15m/s. 4) Cassette with 2 places (1x roll stand, 1x cassette) PKG/T (TS), wire strength: 40-60daN/mm², wire thickness inlet/outlet: 9.5mm/3.5mm-8.5mm, roll diameter min./max.: 115mm/125mm, bore diameter/width: 82mm/15mm-25mm, cooling bolt diameter: 25mm, cooling water consumption: approx. 600l/h. 5) Drawing machine Koch KHZ 6300, year of manufacture: 1992, number of pulls per block: 1, drawing drum diameter: 700mm, pulling force: 5000N, wire material: mild steel, running-in strength: 40-45daN/mm², max. drawing range: 5-8.5mm, drawing speed: 7m/s. 6) Spooler Koch KHS 1250, year of manufacture: 1993, wire diameter: 5-8.5mm, strength: 55-70daN/mm², spooling speed: 7m/s, filling weight: approx. 3000kg, dimensions X/Y/Z: approx. 3100mm/3000mm/1700mm. Documentation available. On-site inspection is possible.
