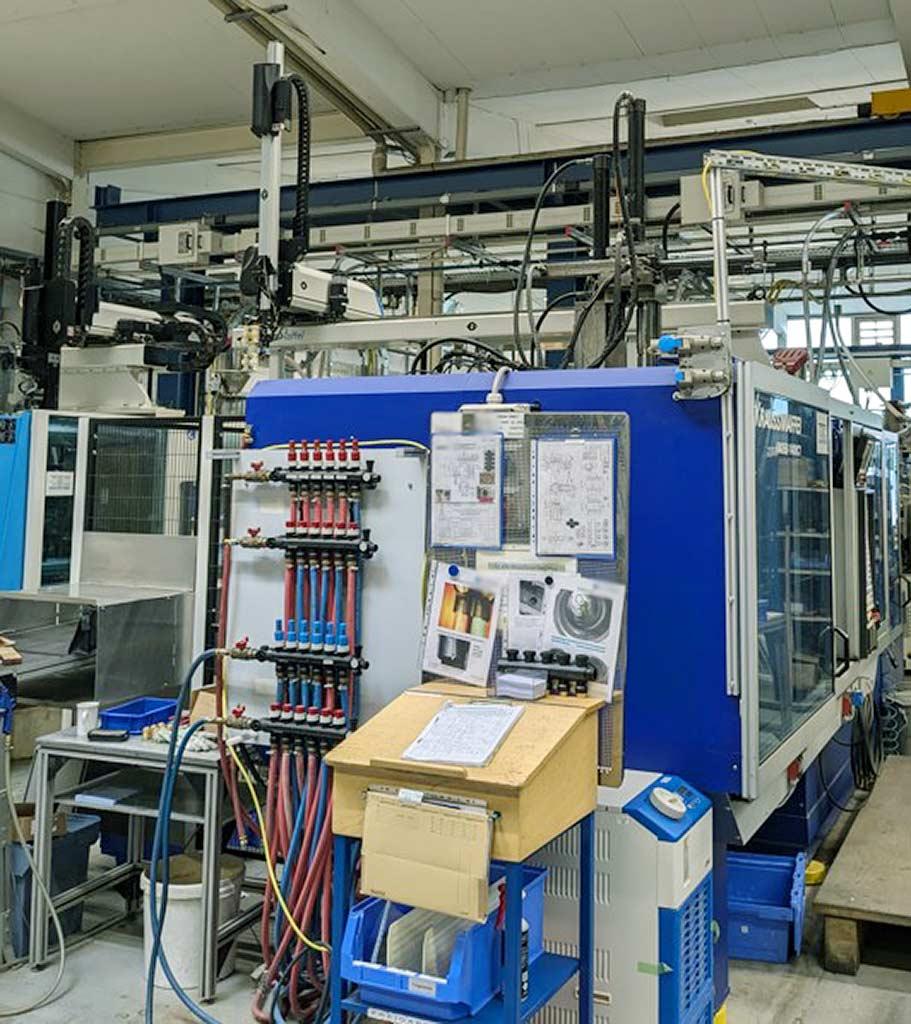

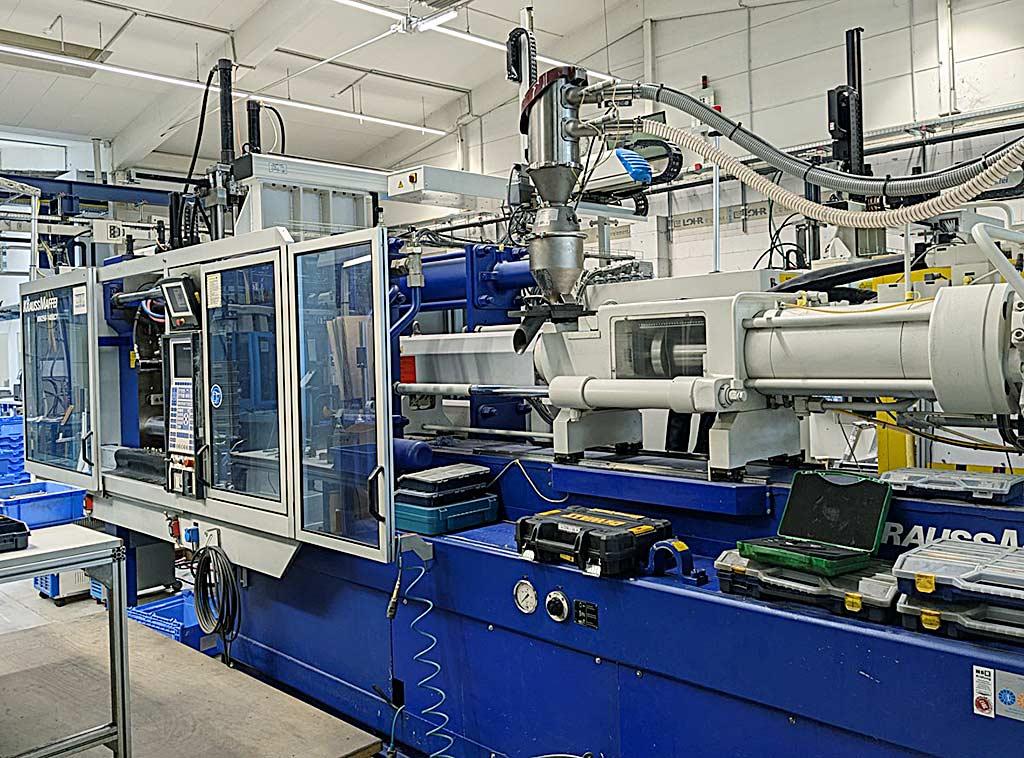

Injection Moulding Machine Krauss Maffei KM 250-1400 C1

Germany

Description

Clamping force: 2500kN, clear tie bar distance: 630mm/630mm, opening stroke: 1150mm, min. mold installation height: 330mm, screw diameter: 60mm, specific injection pressure: 2000bar, max. stroke volume: 670cm³, connected load: 74kW, control: MC4. Machine dimensions: 5700mm/2200mm/2300mm, machine weight: 12.5t, operating hours: 47,572h. Available from February 2025, including special accessories, Krauss Maffei LRX-S 100, 8x hot runner control points, 4x core pull, blow-out unit, pressure accumulator, hydraulic tie-bar pulling device, energy-saving circuit, ALS interface, 20mA interface and color dosing device interface. On-site inspection is possible, documentation available.

Additional Details
