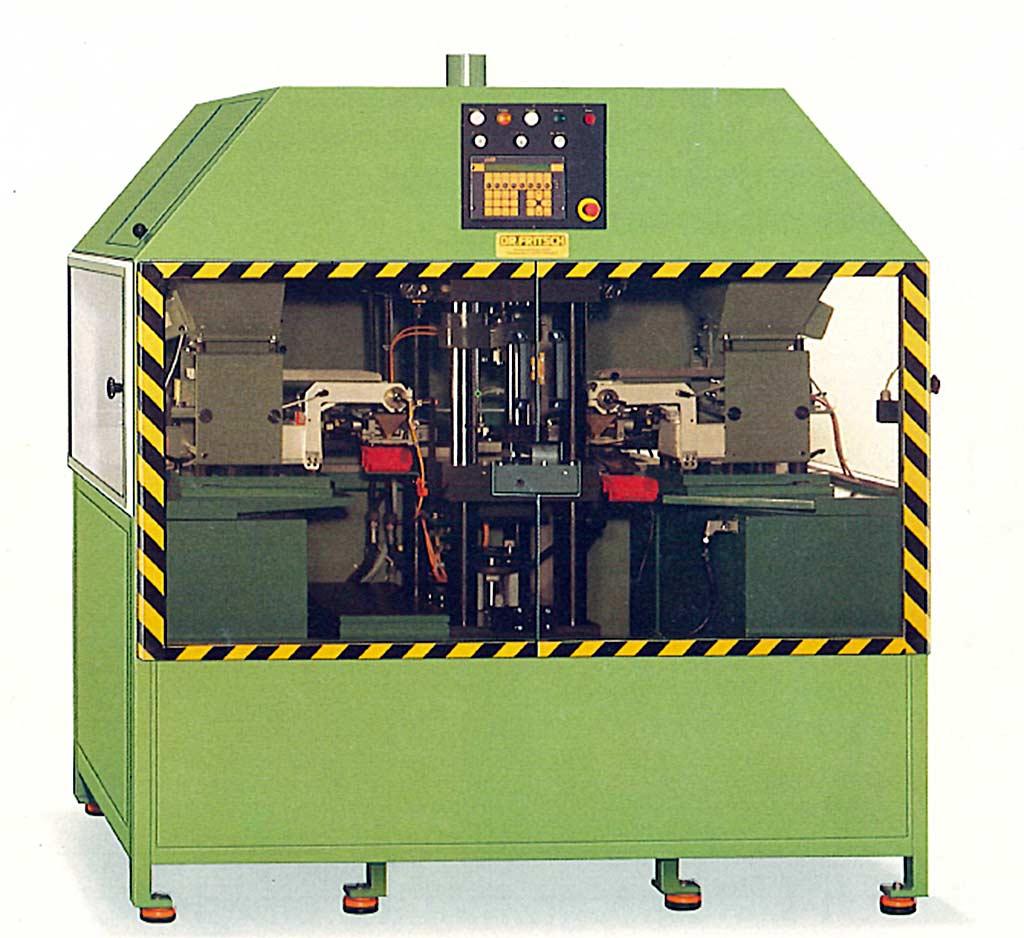

Cold Press Dr. Fritsch KP 35
Specifications
Germany
Description
A high-performance cold press is available for pre-pressing diamond segments in tools. Main cylinder: 2, cylinder diameter top/bottom: 100mm/100mm, cylinder stroke top/bottom: 180mm/150mm, max. operating pressure: 300bar, press force: 235kN. Die clamping cylinder: 2, piston diameter: 63mm, cylinder stroke: 15mm, max. clamping force: 62kN, max. operating pressure: 200bar, piston area: 31.2cm². Weighing stations: 2, weight range: 1g-50g, accuracy: +/-0.05g, powder hopper volume: 12l. Machine dimensions X/Y/Z: approx. 1800mm/1000mm/1900mm, weight: approx. 2000kg. Documentation available. On-site inspection is possible.
