CNC Universal Lathe Traub TNA 480

Germany

Description

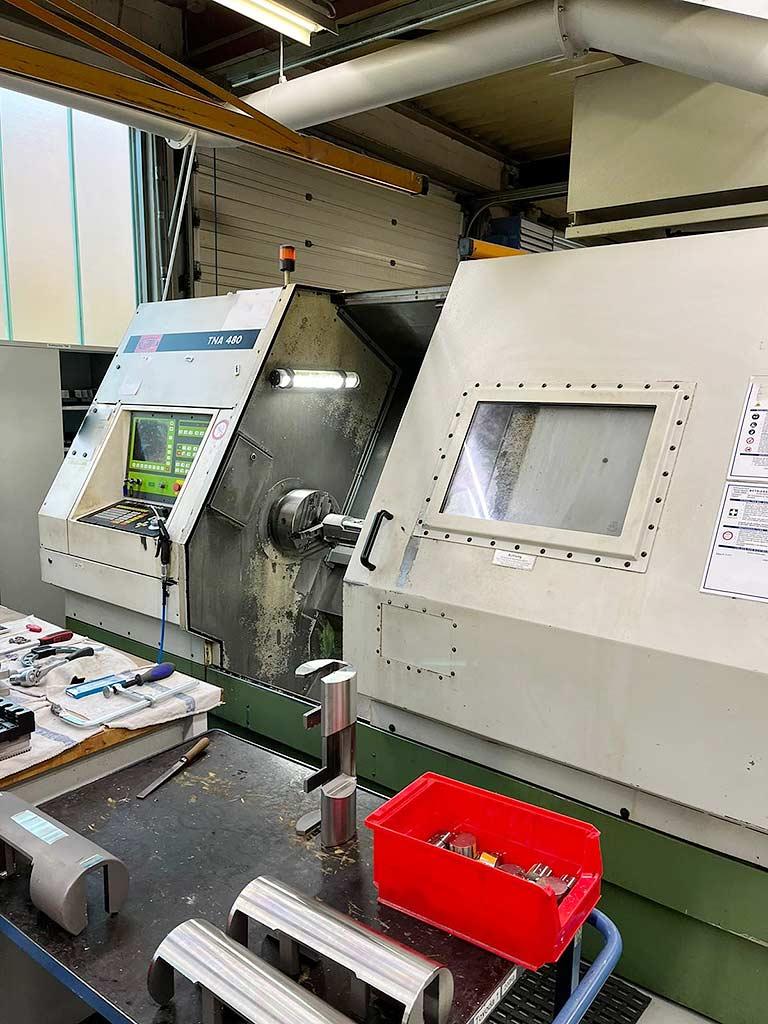

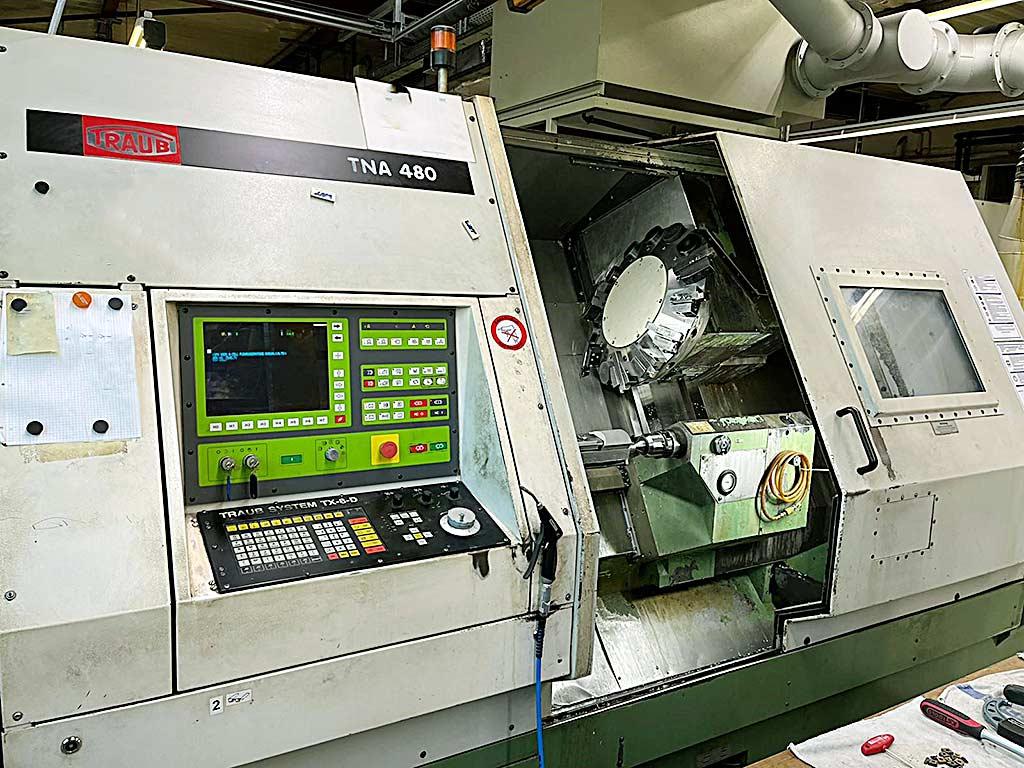

A Traub universal CNC lathe is available. Swing diameter over bed/slide: 400mm/360mm, turning diameter maximum/normal: 360mm/320mm, max. turning length: 1000mm, center distance: 2000mm, chuck diameter: 315mm. Spindle bearing diameter: 160mm, spindle bore: 80mm, speed: 4000rpm, power: 26kW, tool positions: 14, travel X/Z: 180mm/1000mm, feed: 24mm/rev, rapid traverse X/Z: 1000mm/1500mm/min. Quill diameter: 100mm, quill stroke: 200mm. Machine dimensions X/Y/Z: approx. 5800mm/2400mm/2400mm, weight: approx. 7200kg, control: Traub System TX-8-D. Documentation available. On-site inspection is possible.

Additional Details
