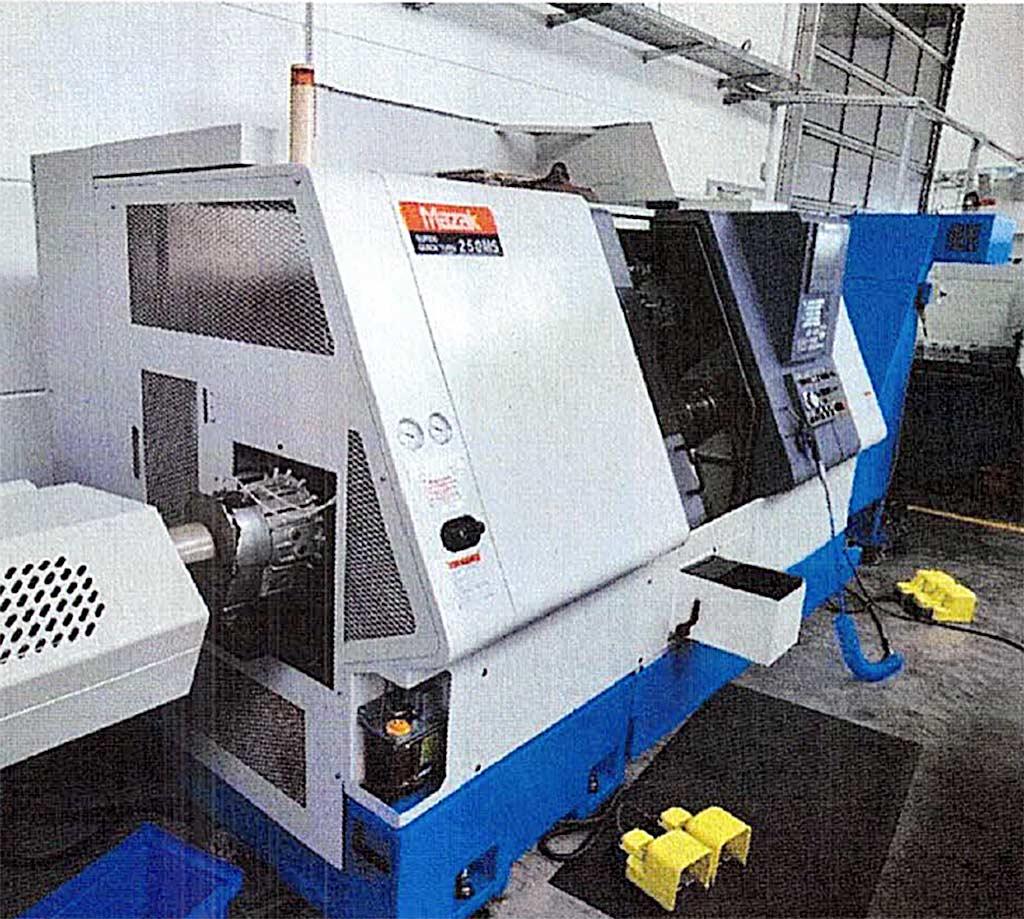

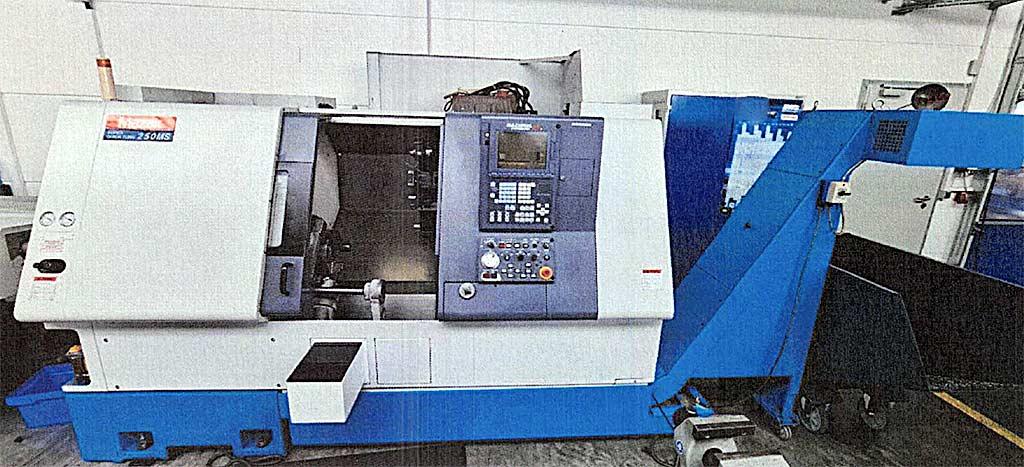

CNC Lathe Mazak SQT 25 MS
Specifications
Germany
Description

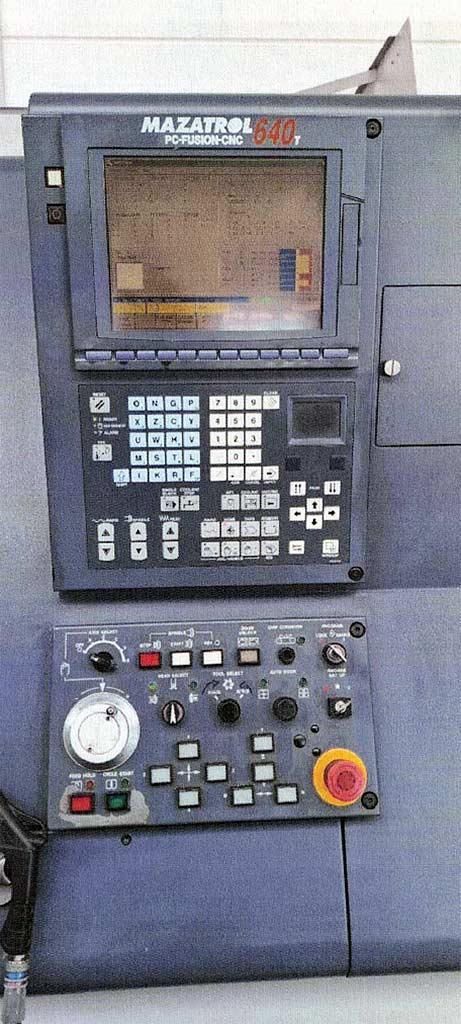

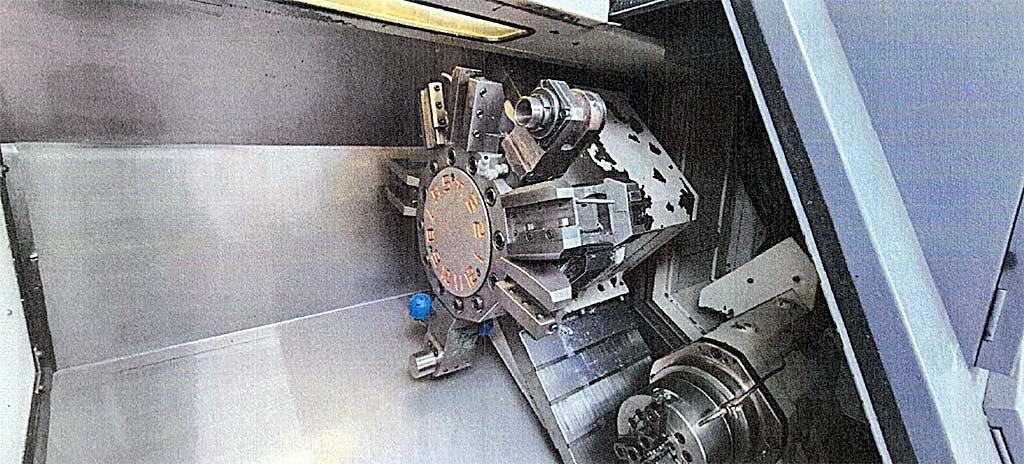

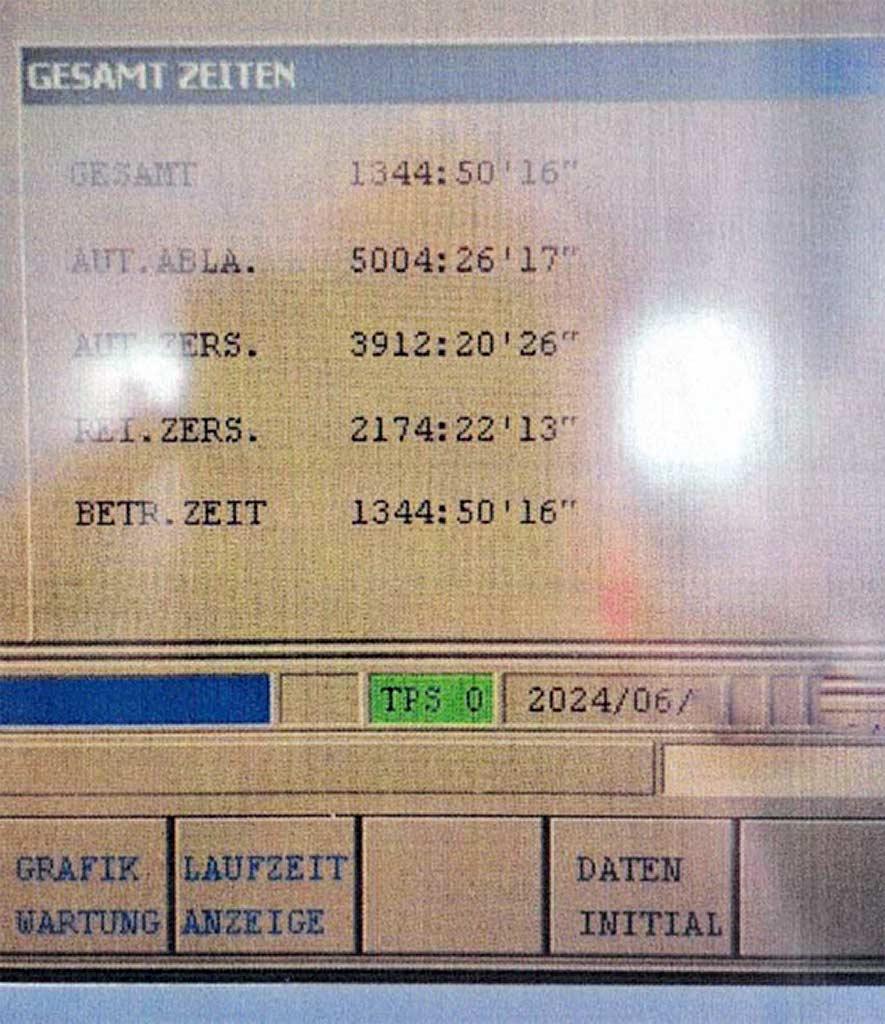

Turning diameter: 300mm, turning diameter: 525mm, turning length: 550mm, spindle bore: 76mm, max. bar diameter: 64mm, max. chuck diameter: 250mm. Spindle speed: 4000rpm, spindle power: 22kW, max. spindle torque: 351Nm, spindle nose-turret face distance: 115mm-690mm. Tool slots: 12, shank diameter: 25mm, drill shank diameter: 40mm, max. turret indexing time: 0.2s-0.6s. Traverse path X/Z/counter spindle: 190mm/575mm/585mm, rapid traverse X/Z: 30m/min, rapid traverse C: 400rpm, rapid traverse B: 18m/min, C-axis swivel: 360°. Machine dimensions X/Y/Z: approx. 5000mm/3000mm/2500mm, weight: approx. 6000kg, control: PC Fusion CNC 640T, operating hours: approx. 5000h. Without bar loader, Rotaryscale defective. Documentation available. On-site inspection is possible.
Additional Details
