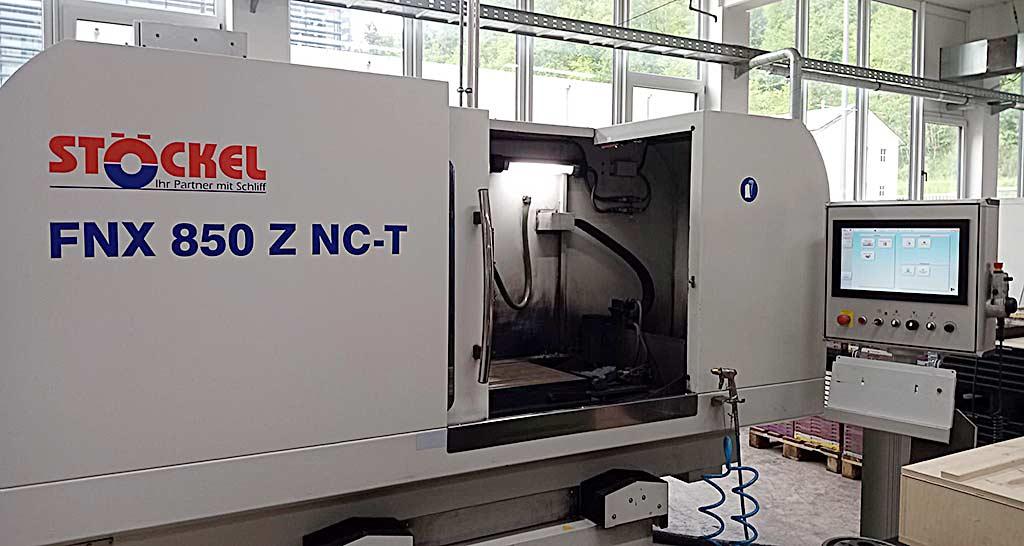

CNC Surface Grinding Machine Stöckel FNX 850 Z NC-T
Specifications
Germany
Description
A CNC profile and surface grinding machine Stöckel is available. Travel X/Y/Z: 850mm/680mm/475mm, guide X/Y/Z: sliding guide/linear guide/linear guide, table dimensions X/Y: 800mm/500mm, table feed: 30m/min, drive X/Y/Z: Toothed belt/ball screw/ball screw, feed: Y/Z: 2000mm/min, fine adjustment X/Y/Z: from 0.001mm, speed: 4000rpm, spindle taper: 60mm, spindle power: 11kW, grinding wheel dimensions X/Y/Z: 400mm/50mm/127mm. Machine dimensions X/Y/Z: approx. 3500mm/2700mm/2300mm, weight: approx. 4300kg, operating hours: 16156h, control: NC-T. Documentation available. On-site inspection is possible.
