Hydraulic Heat Press Italpresse/joos GL9-6/188 / HP S80
Specifications
Germany
Description

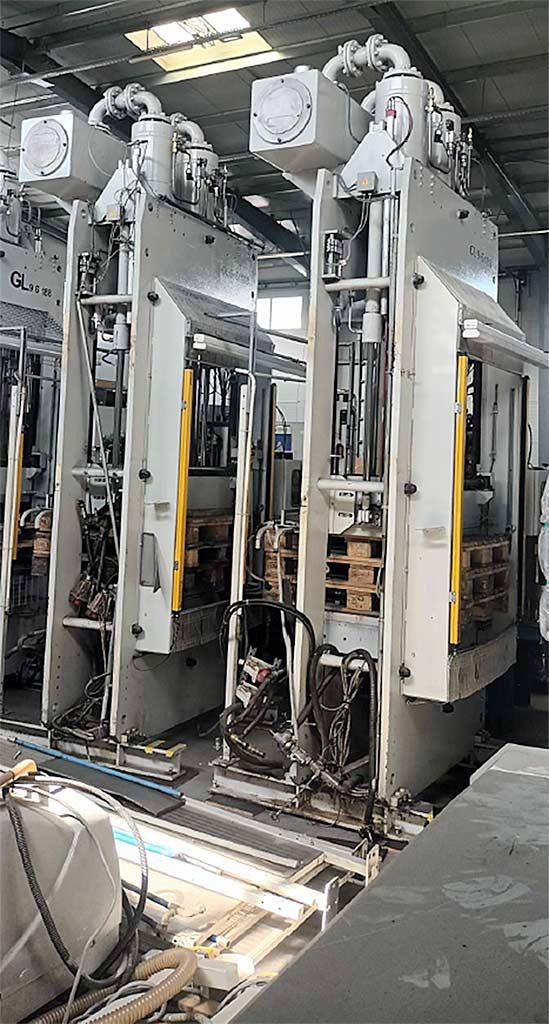

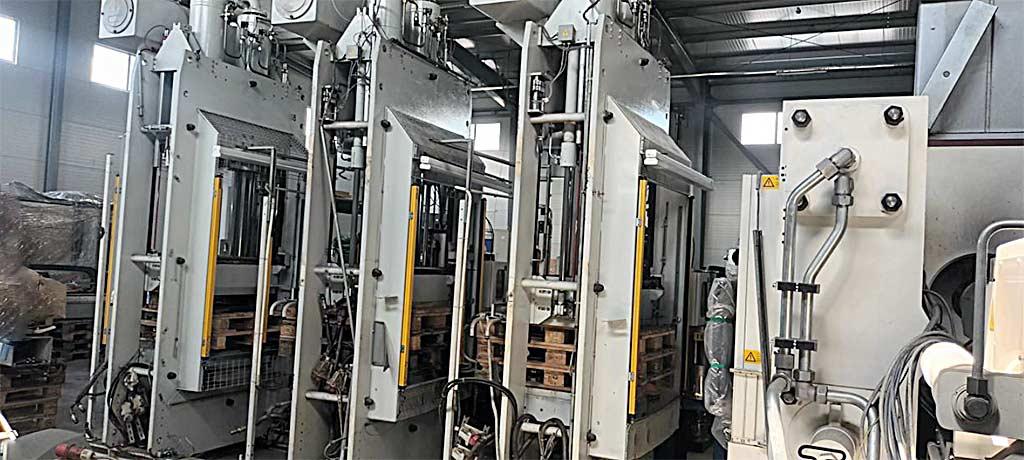

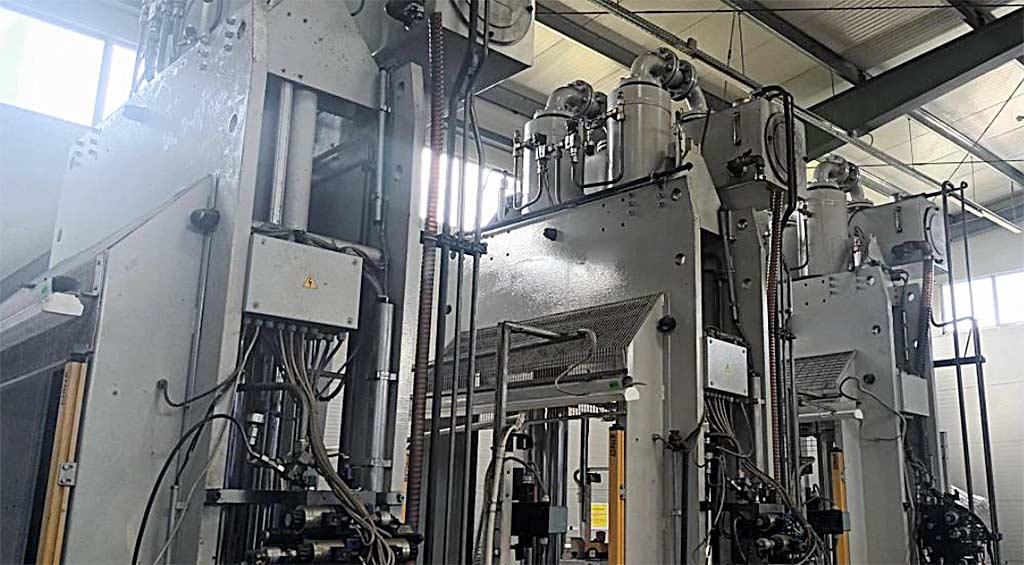

Two heated hydraulic presses are available. 1) Italpresse GL9-6/188, year of manufacture: 2011, press force: 300t, spec. press force: 43kg/cm², cylinder: 6, cylinder diameter: 140mm, table dimensions X/Y: 1400mm/600mm, opening height: 400mm, heating plates: electric, drive power: 5.5kW. 2) Joos HP S80, year of manufacture: 2011, pressing force: 80t, plate dimensions X/Y: 2500mm/1250mm, piston diameter: 80mm, operating pressure: approx. 385bar, spec. pressing force: 2.5daN/cm², cylinders: 4, heating: electric, machine dimensions X/Y/Z: approx. 2900mm/1500mm/2100mm, weight: approx. 3300kg. On-site inspection is possible.
Additional Details
