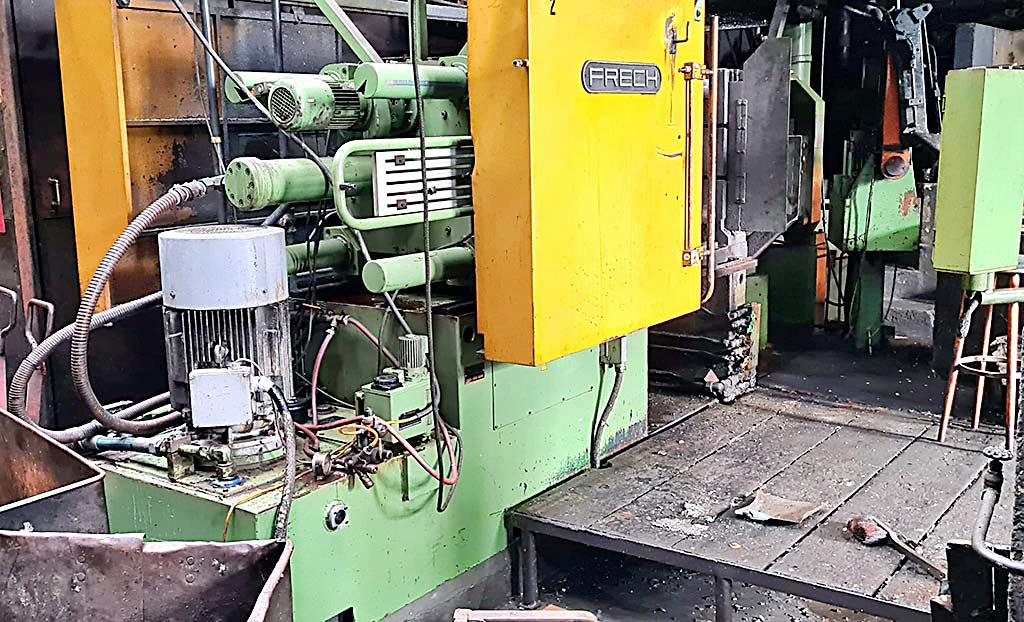

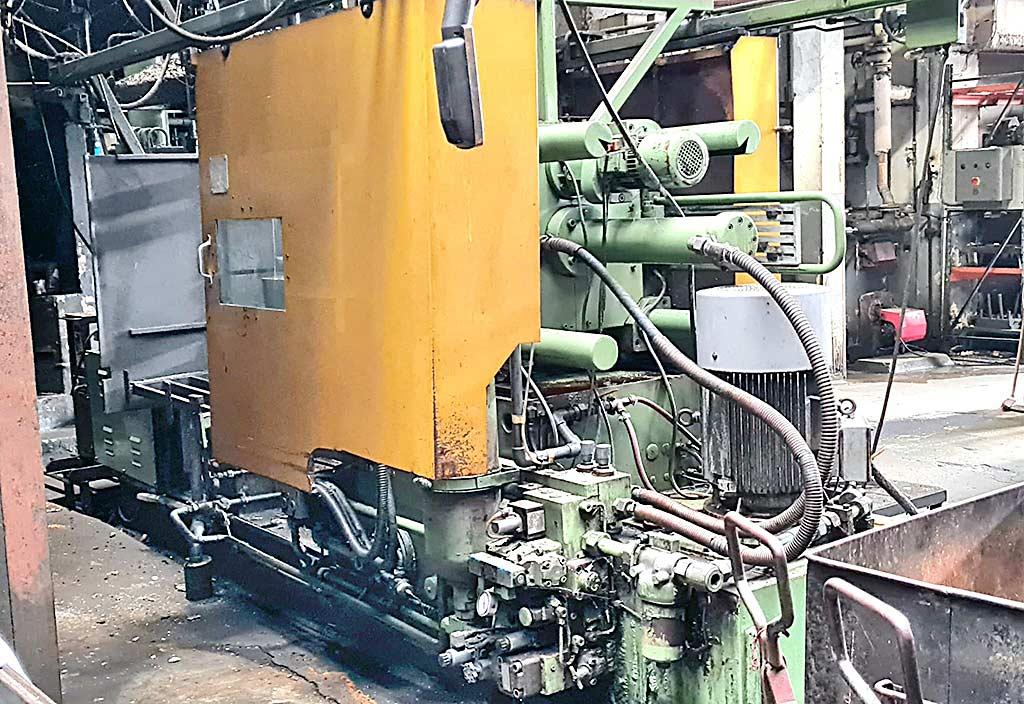

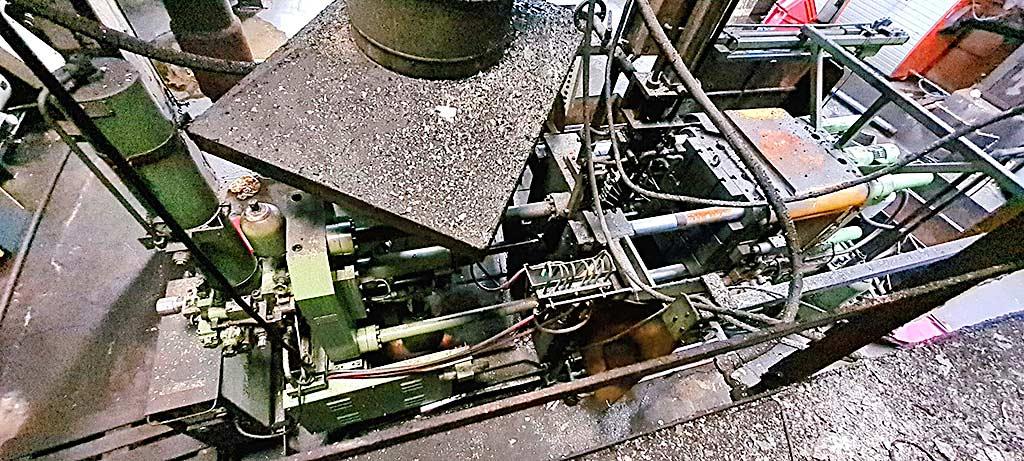

Diecasting Plant Oskar Frech DAK 200

Germany

Description

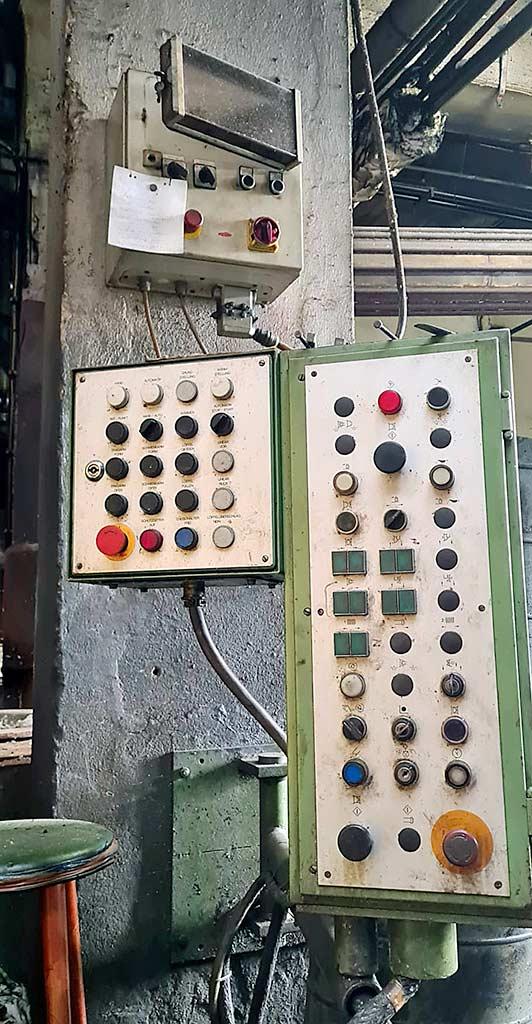

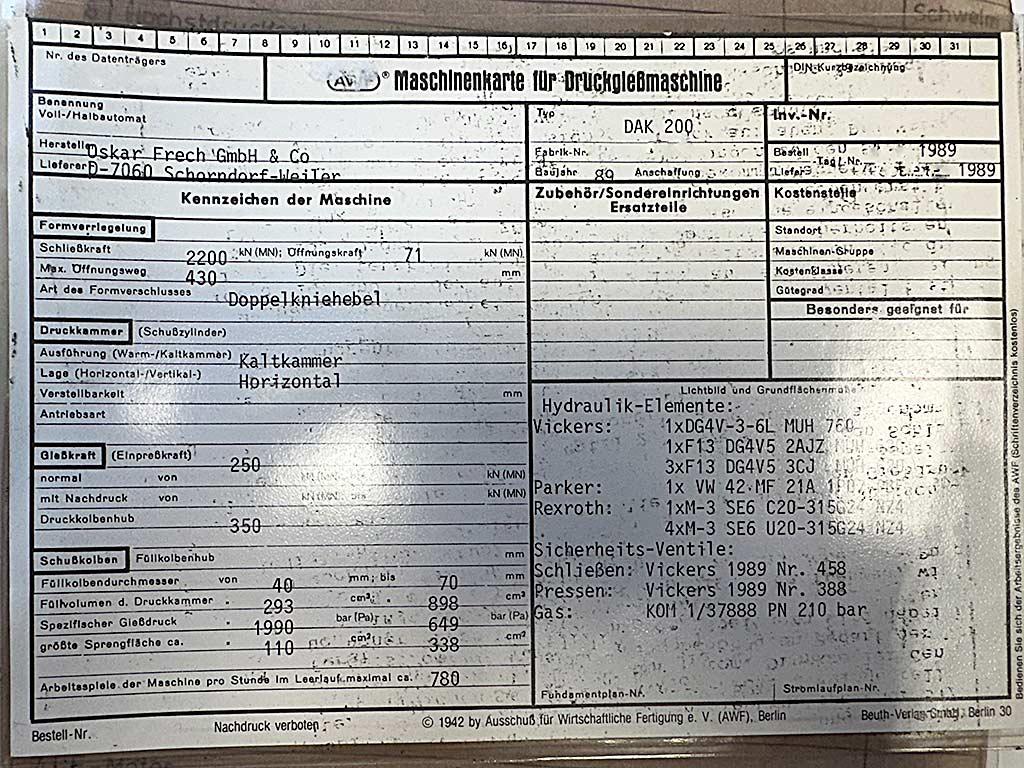

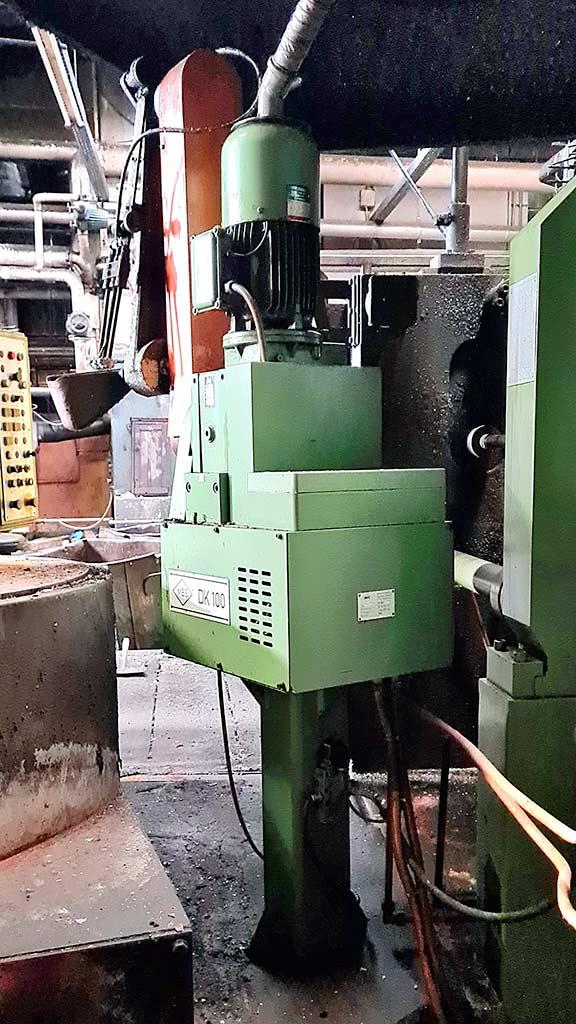

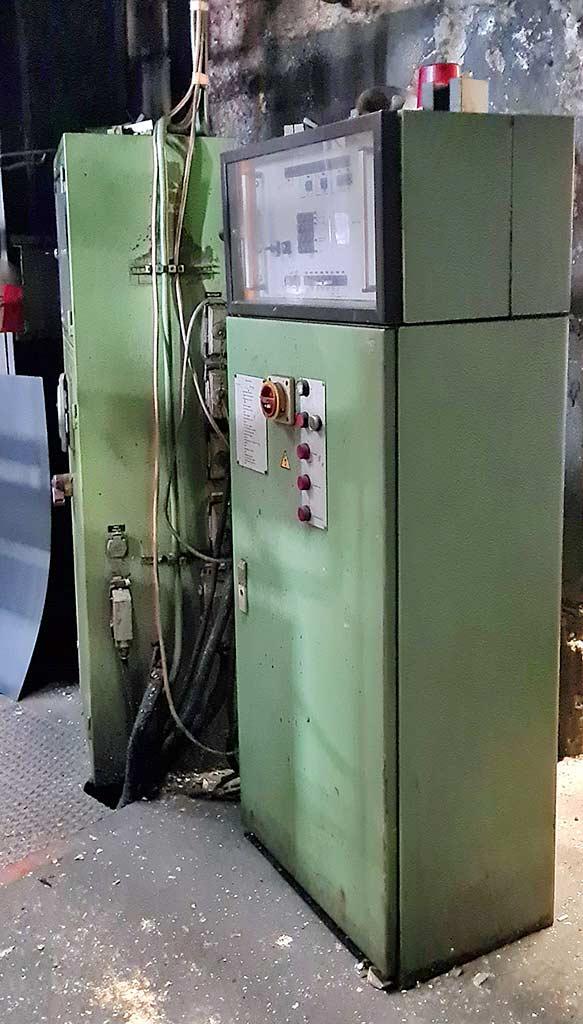

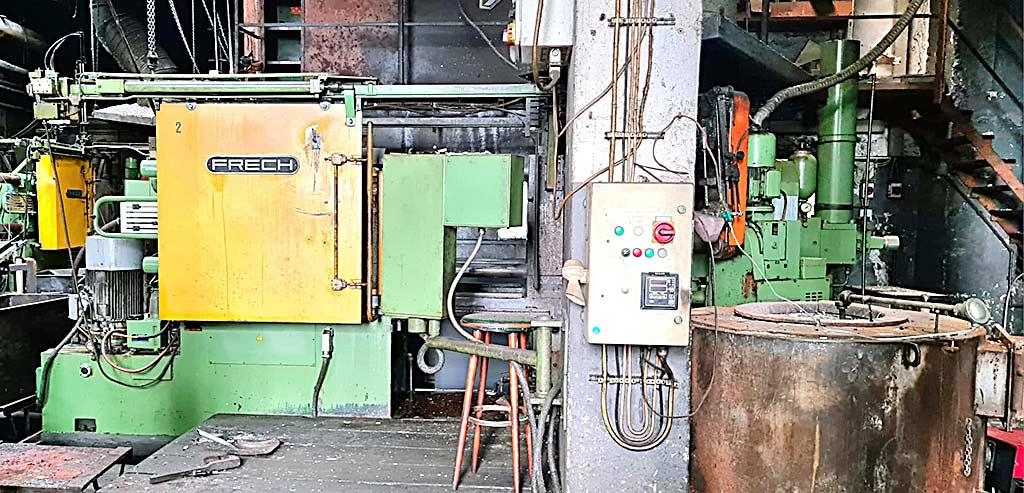

An aluminum die casting system is available. Clamping force: 2200kN, opening force: 71kN, max. opening stroke: 430mm, mold closure: double toggle lever, pressure chamber: cold chamber, position: horizontal. Filling piston diameter min./max.: 40mm/70mm, pressure chamber filling volume min./max.: 293cm³/898cm³, casting pressure: 1990bar, blast area min./max.: 110cm²/338cm², output: 780 cycles/h. Clamping plate dimensions X/Y: 755mm/755mm, column spacing: 500mm/500mm, mold height min./max.: 250mm/600mm, min. mold dimensions X/Y: 296mm/296mm. Including crucible furnace, blow-out device, automatic dosing unit and 4x control cabinets. Documentation available.

Additional Details
