Screen And Gravure Printing System Olbrich Kombianlage

Germany

Description

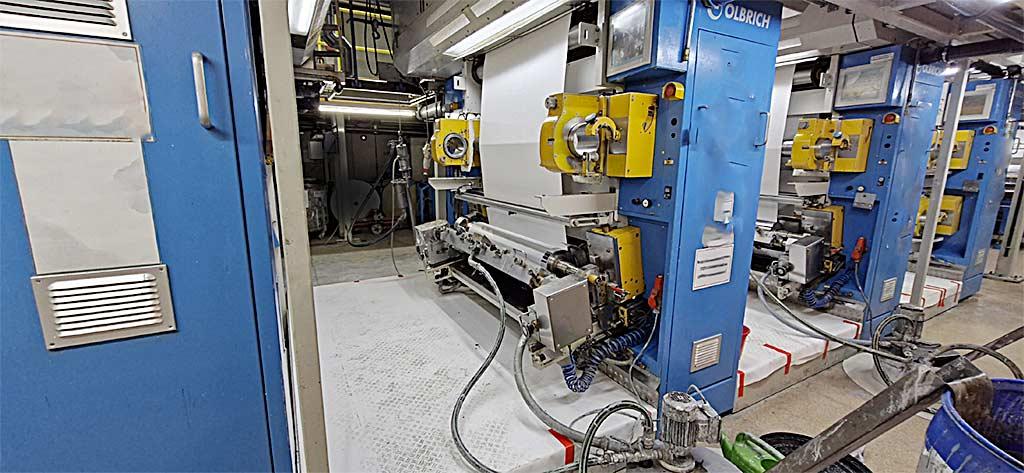

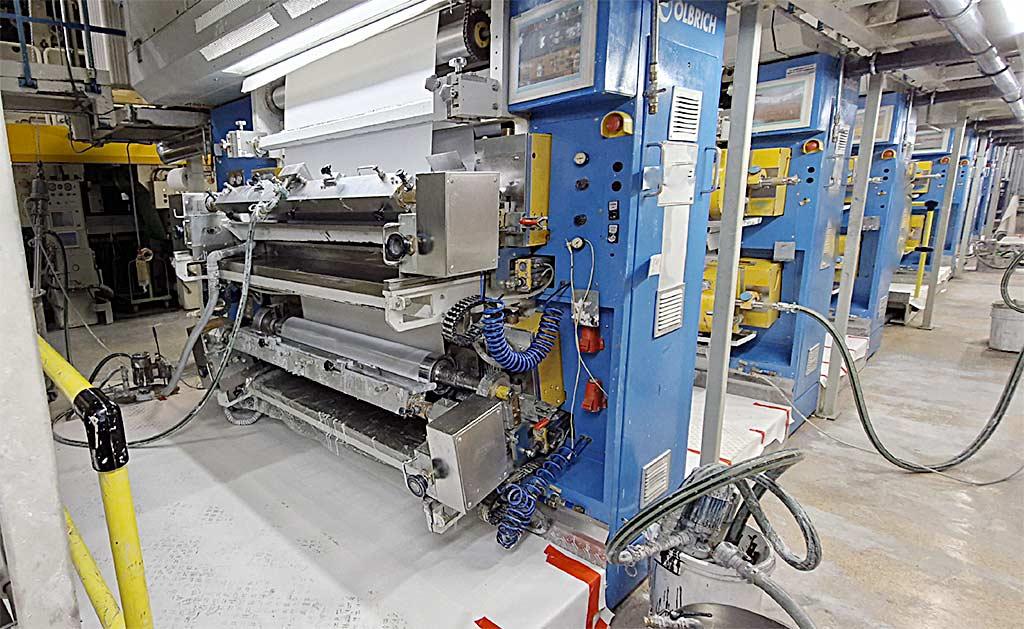

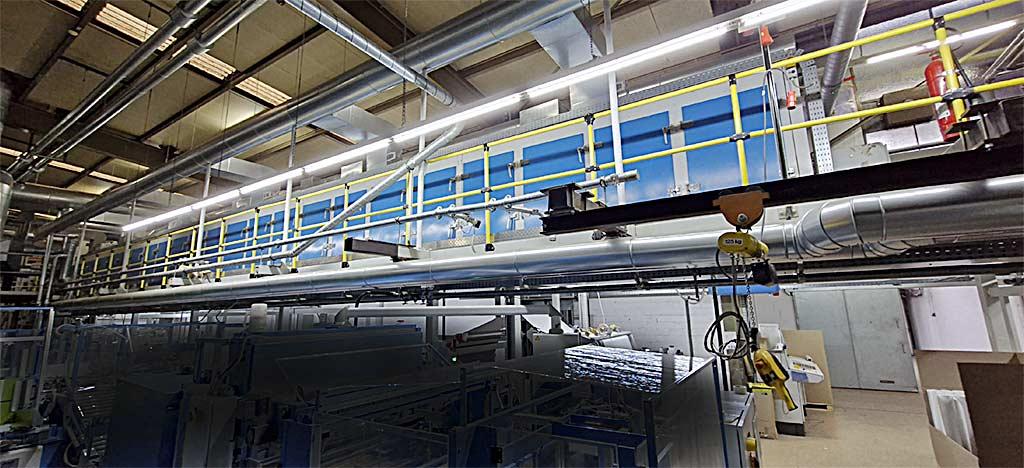

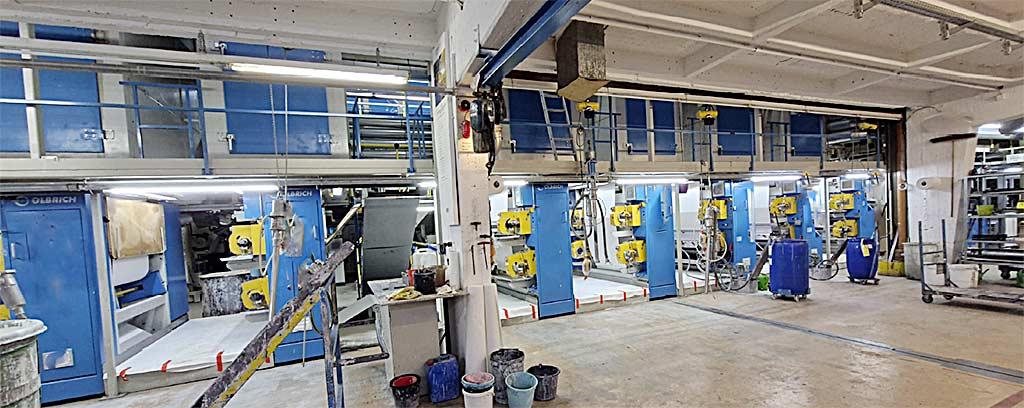

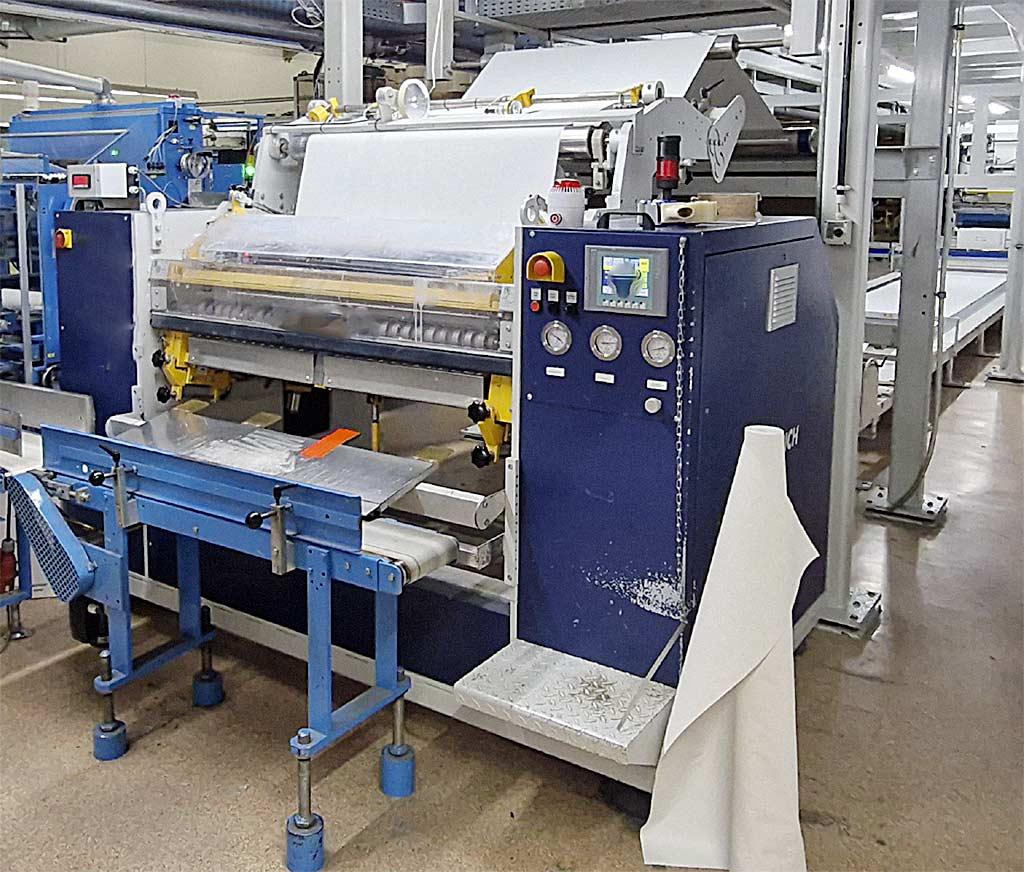

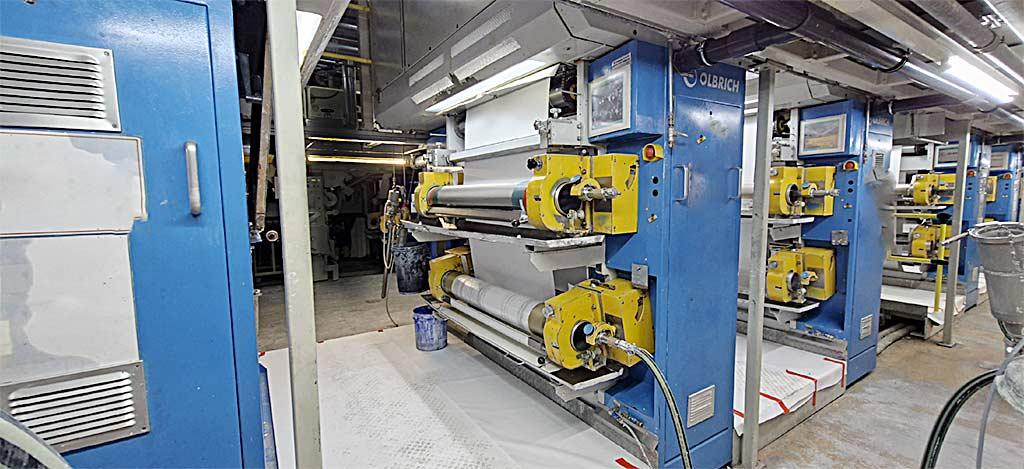

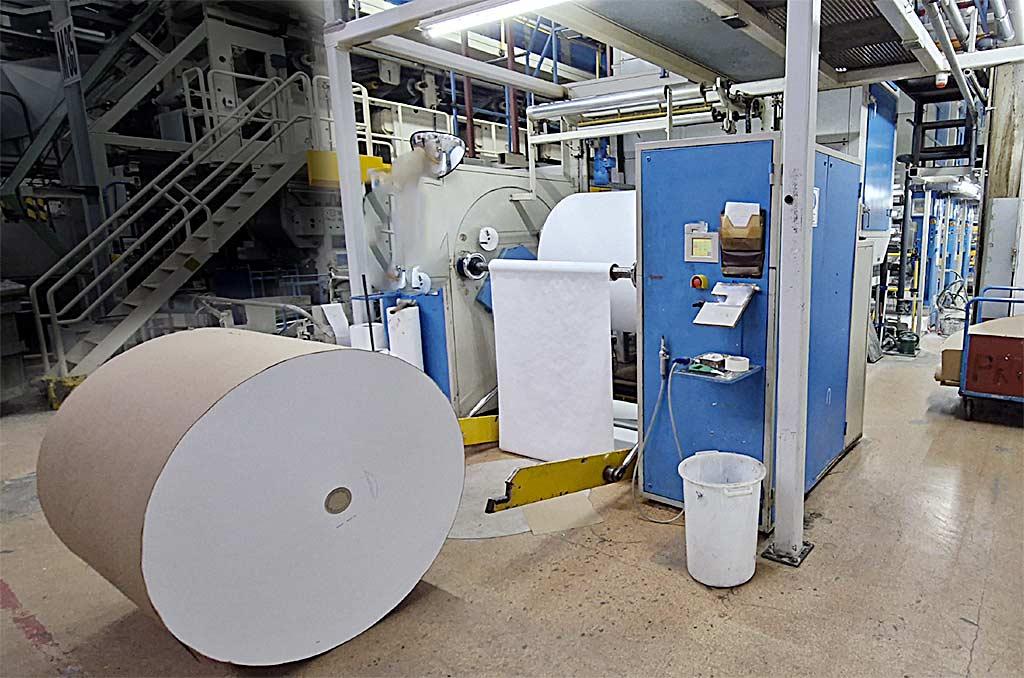

A complete screen and gravure printing system for paper and non-woven wallpapers is available. Output: 15000 rolls/24h, substrates: paper: 80g-150g/m², non-woven: 50g-150g/m², printing width: 1060mm, working width: 1200mm, printing speed: 5m-150m/min. Components: Preconditioning, gravure printing unit, 5x screen printing units, 2x screen gravure printing units, 5x intermediate dryers (standard version), 2x intermediate dryers (1.5 times dryer height), 1x main channel with 6x 4m zones, roller/unwinder, register embossing, double-head printing units. Including various peripheral devices and units. Total dimensions X/Y/Z: approx. 60m/8m/6m. Documentation available. On-site inspection is possible.

Additional Details
