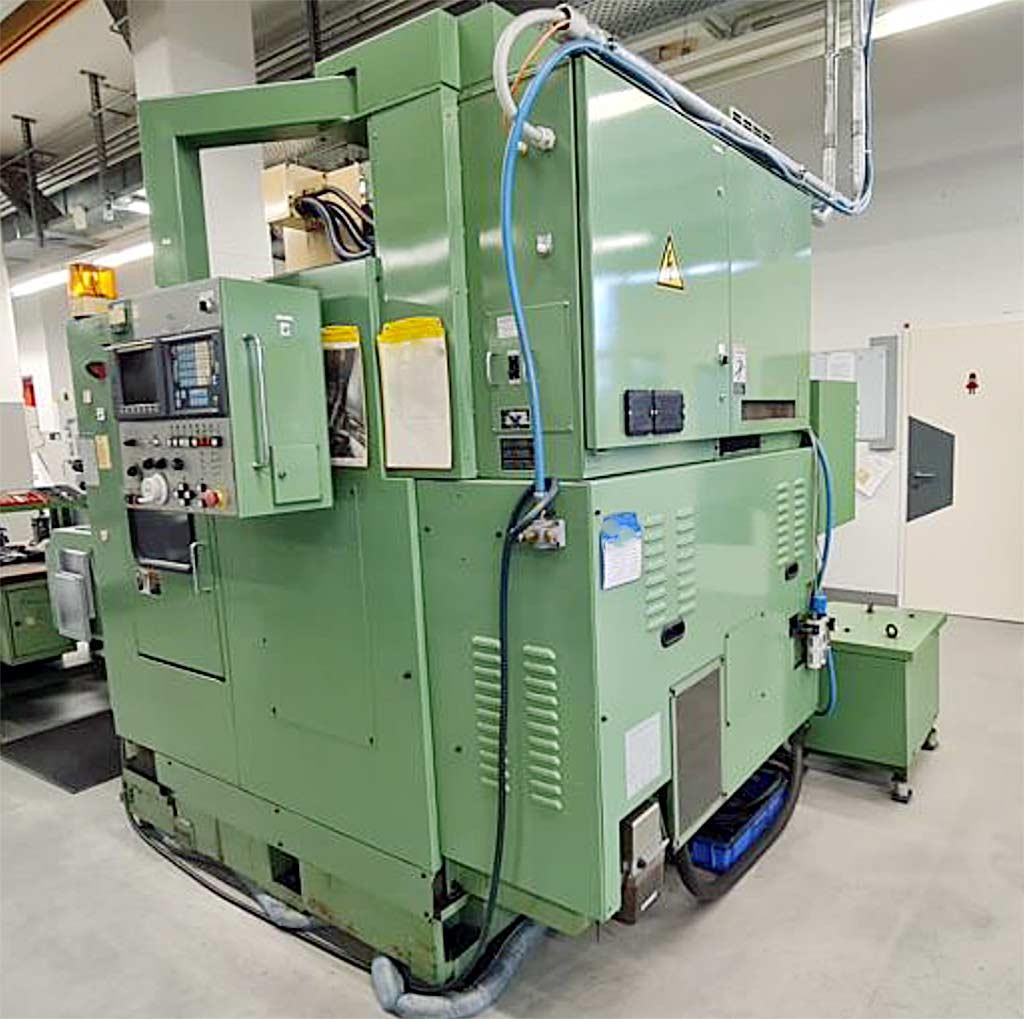

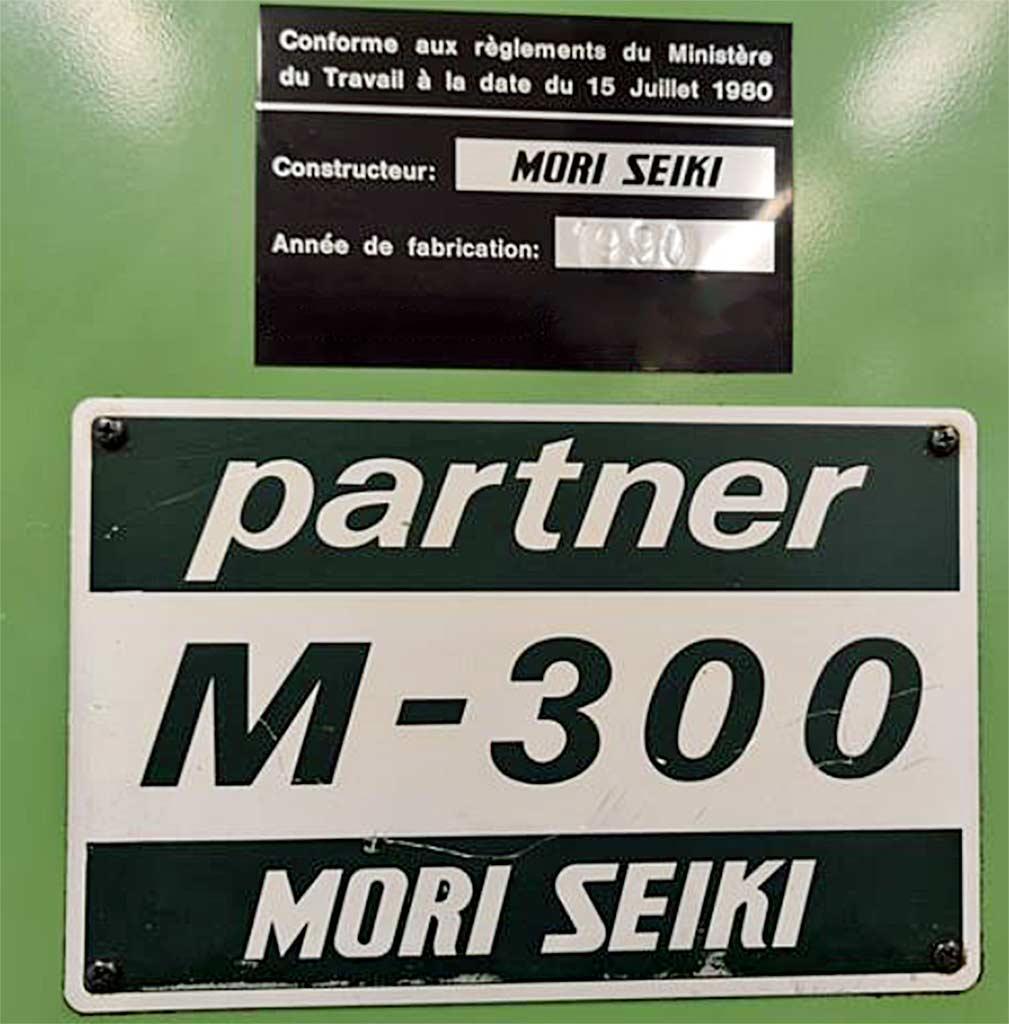

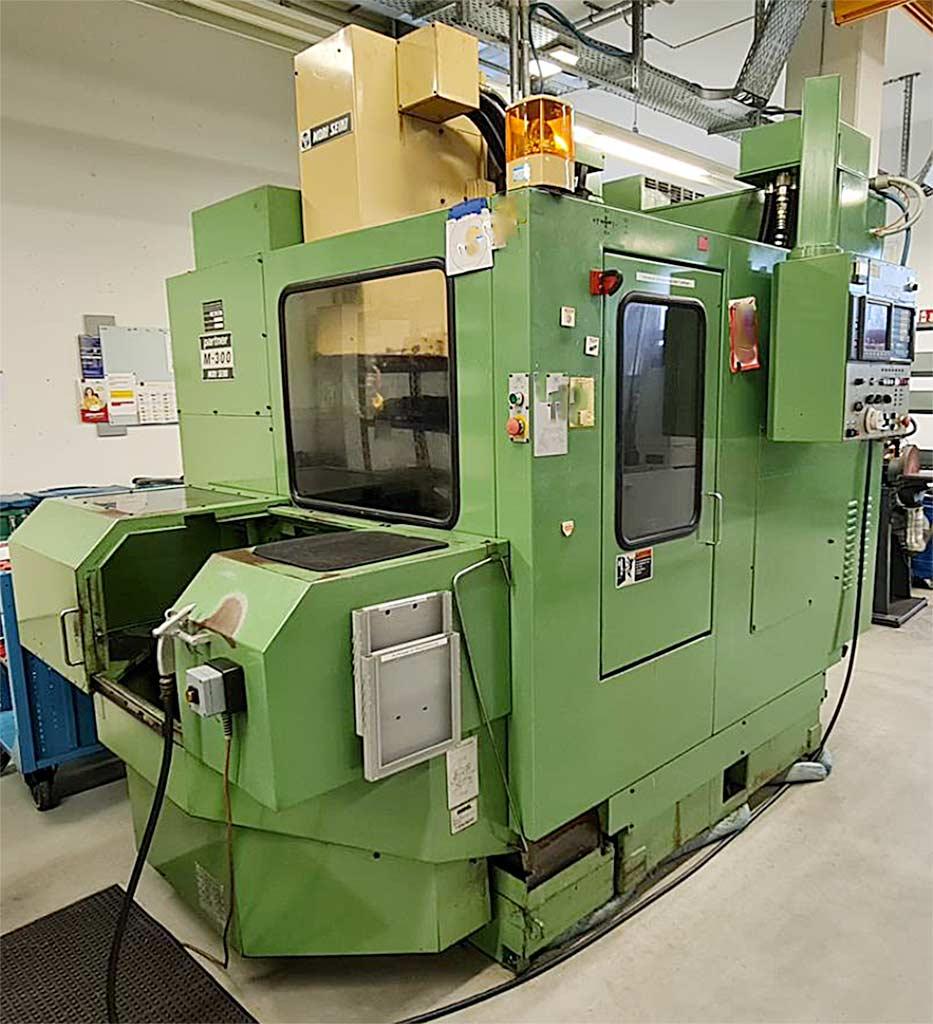

CNC Machining Center Mori Seiki Partner M-300

Germany

Description

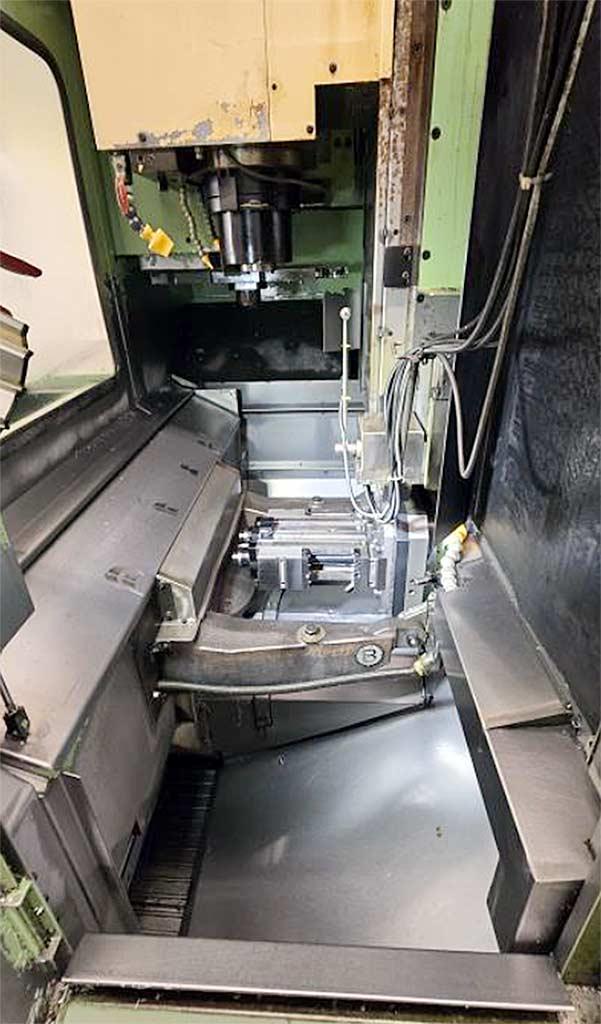

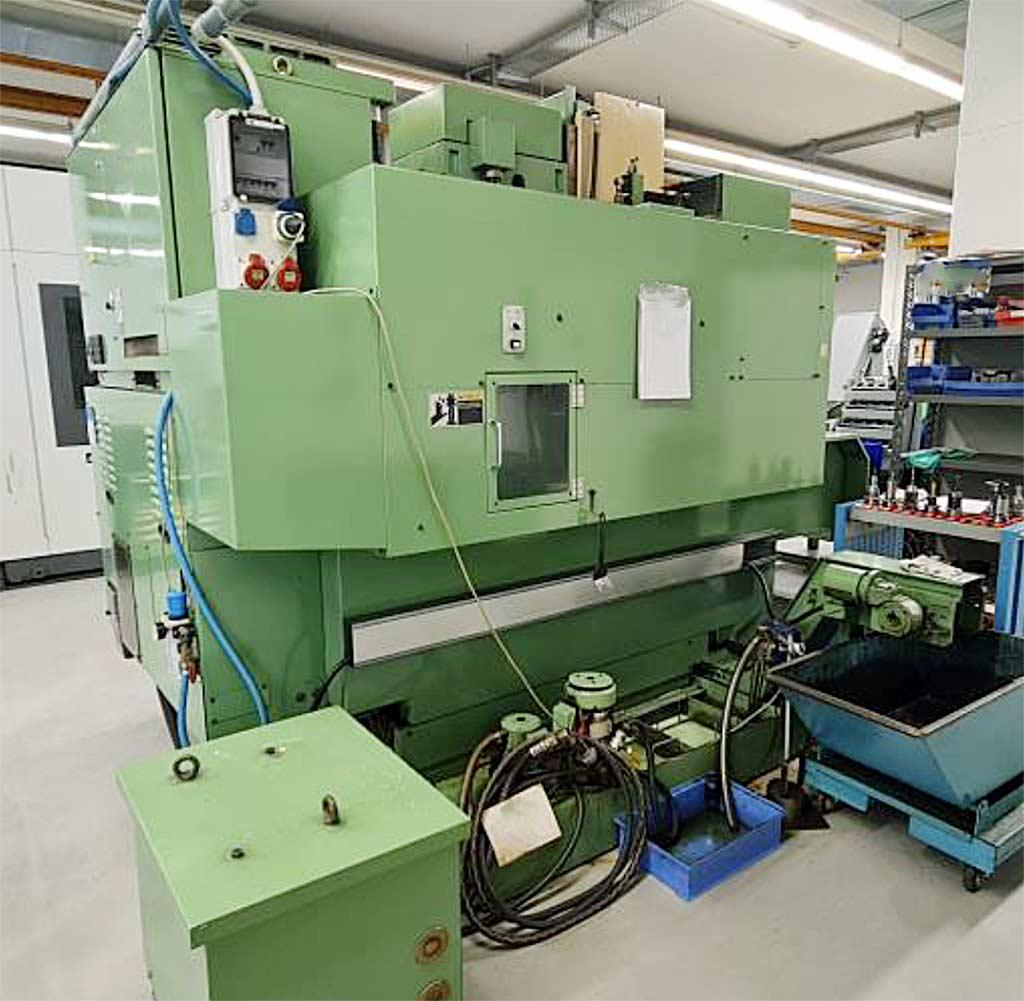

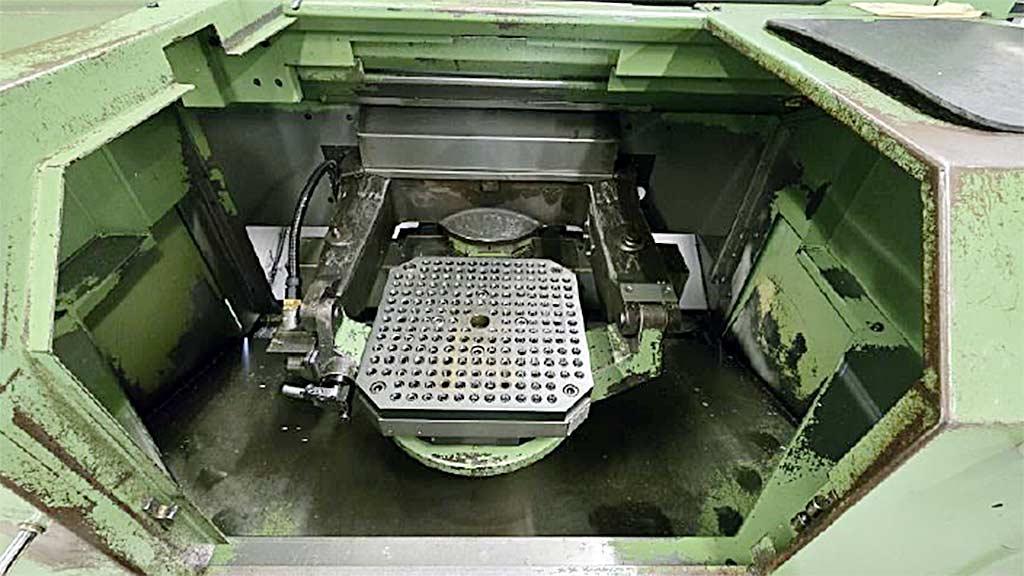

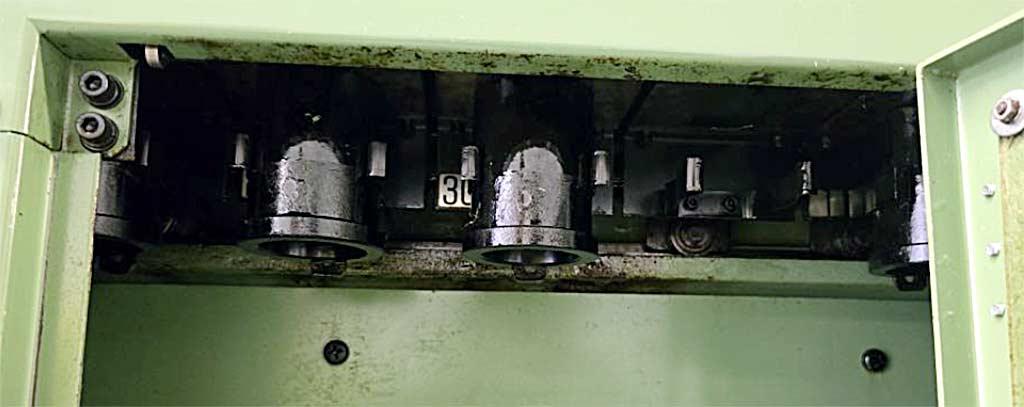

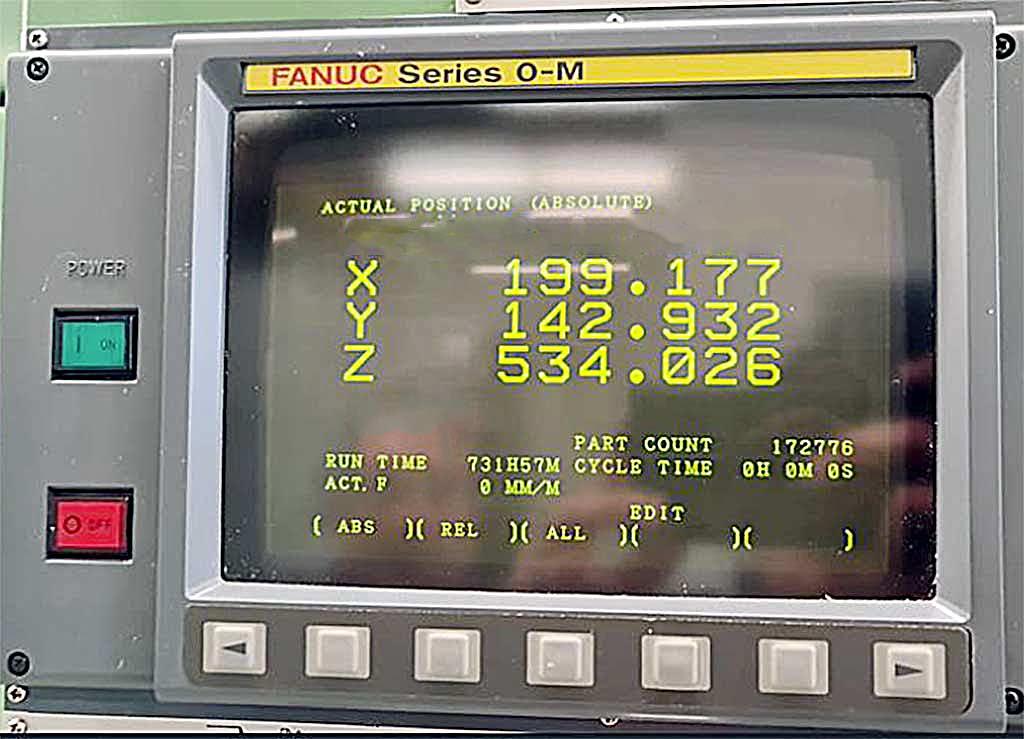

Travel X/Y/Z: 400mm/300mm/495mm, spindle center table distance: 25mm-325mm, spindle nose table distance: 125mm-620mm, rapid traverse: 24m/min, feed rate: 5m/min, spindle type: ball screw, spindle diameter: 36mm, speed: 6000rpm, spindle power: 5.5kW, spindle mount: BT40. Tool slots: 30, tool change time: 2.5s, clamping time: 7s, max. tool diameter/length: 110mm/250mm, max. tool weight: 8kg. Table dimensions X/Y: 315mm/315mm, table angle: 7.5°, table clamping force: 3400kg, max. workpiece weight: 150kg. Dimensions X/Y: approx. 1900mm/2300mm, weight: approx. 4500kg, control: Fanuc 0-M, operating hours: 732h, piece counter: 172776. Including cooling lubricant system and tool magazine with 30 places. Documentation available. On-site inspection is possible.
