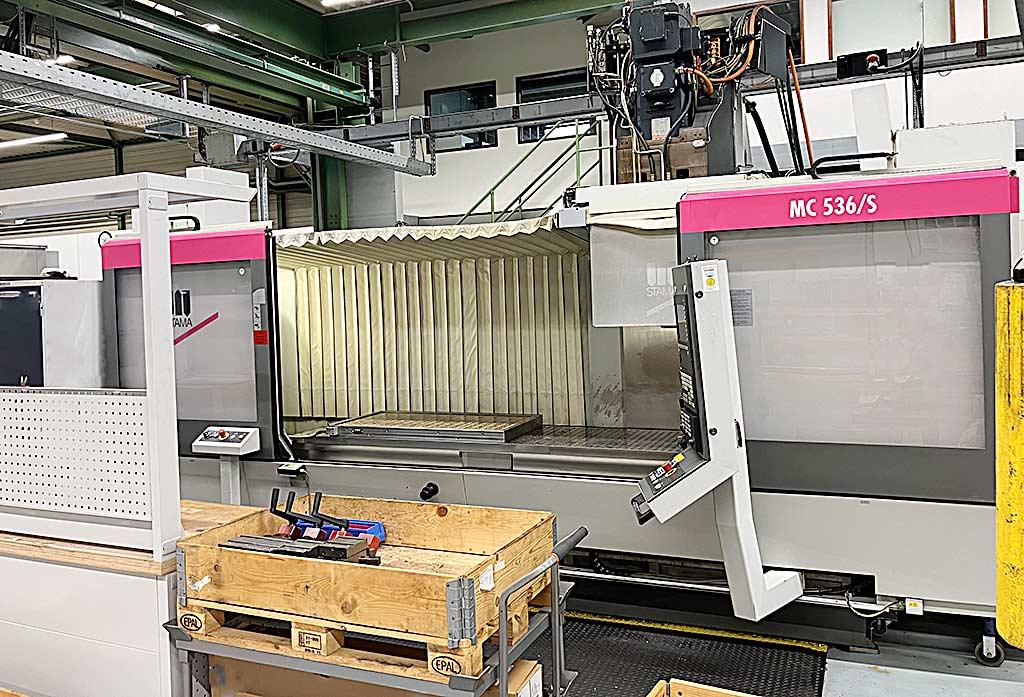

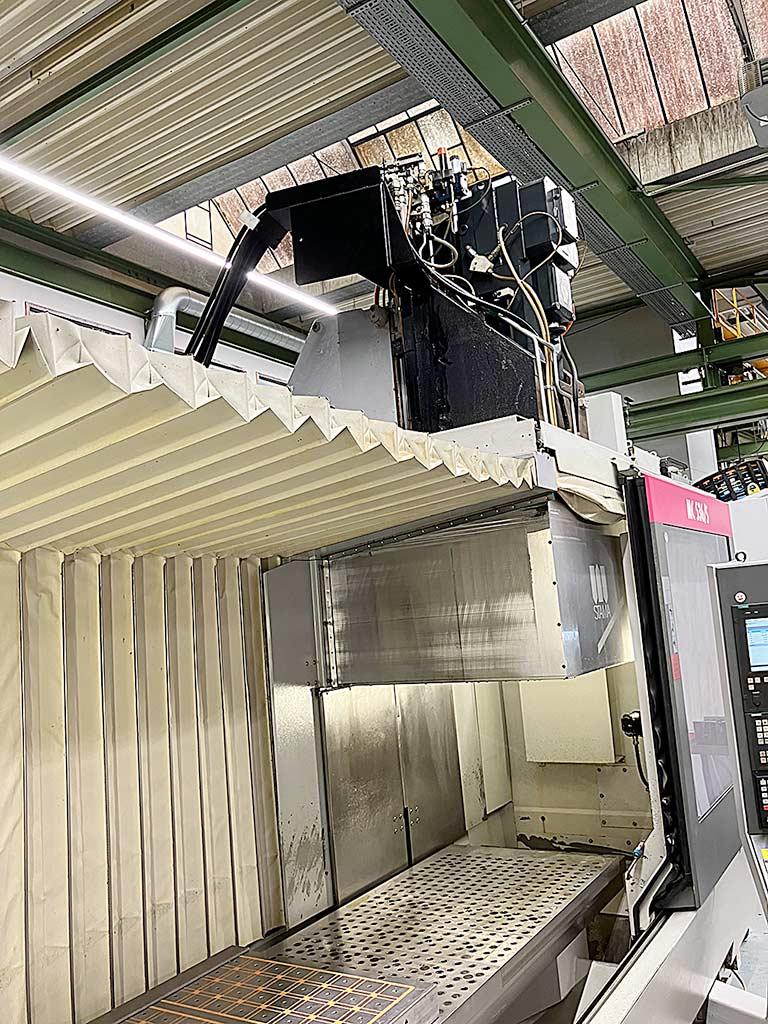

CNC Double Spindle Machining Center Stama MC 536

Germany

Description

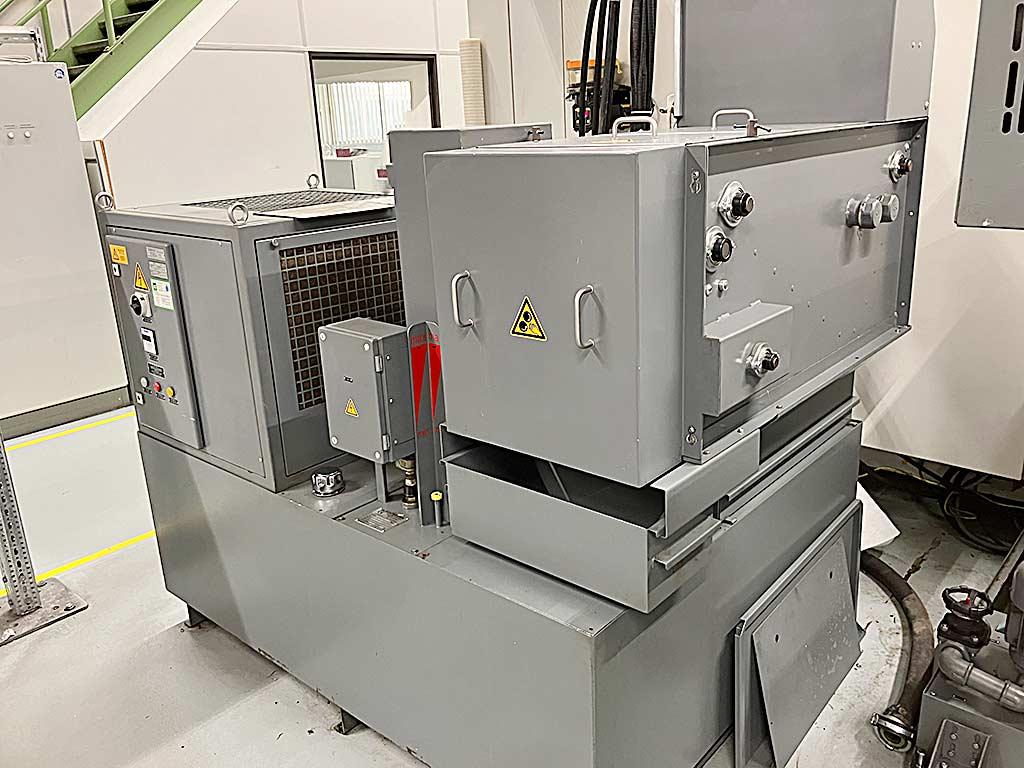

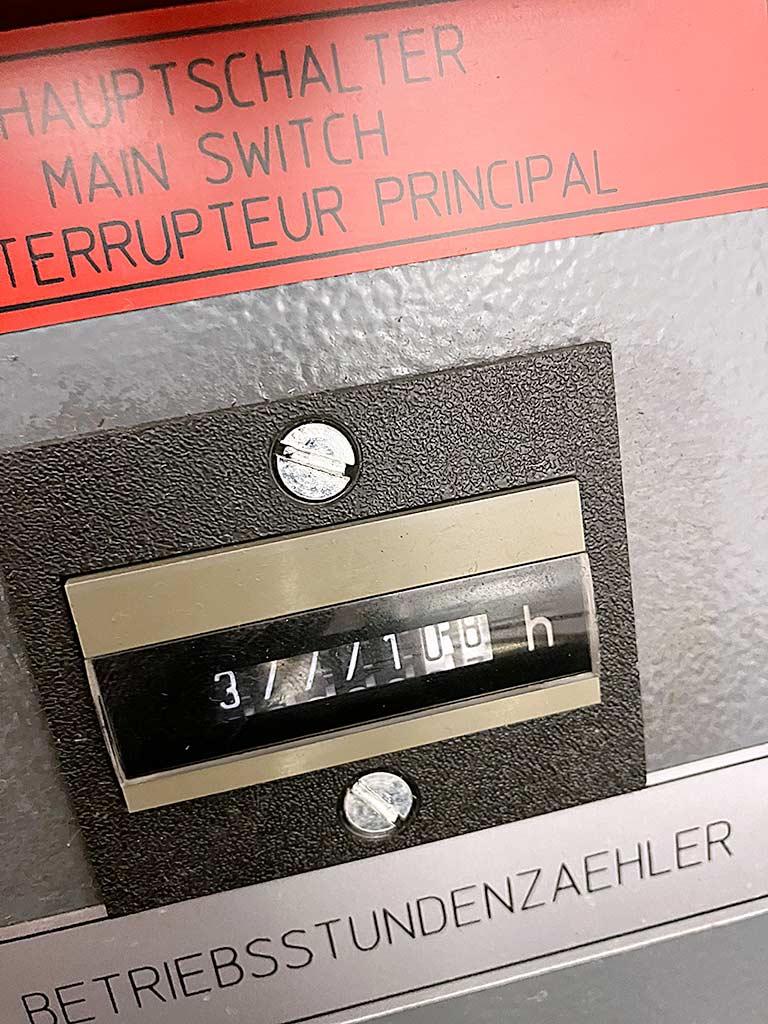

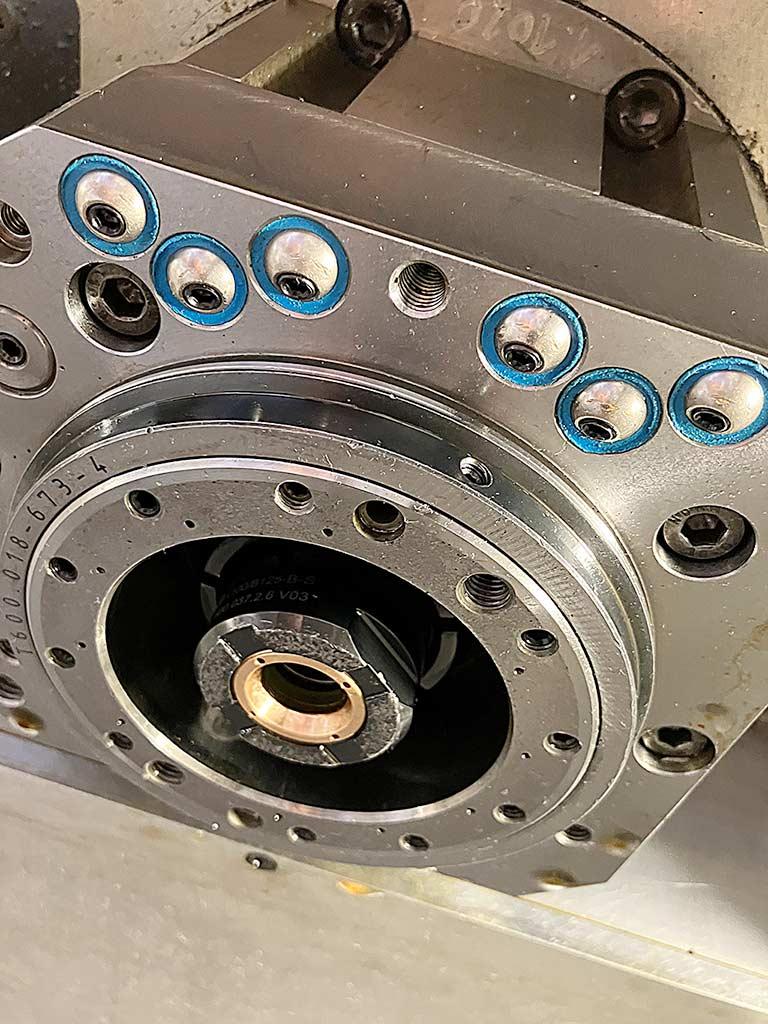

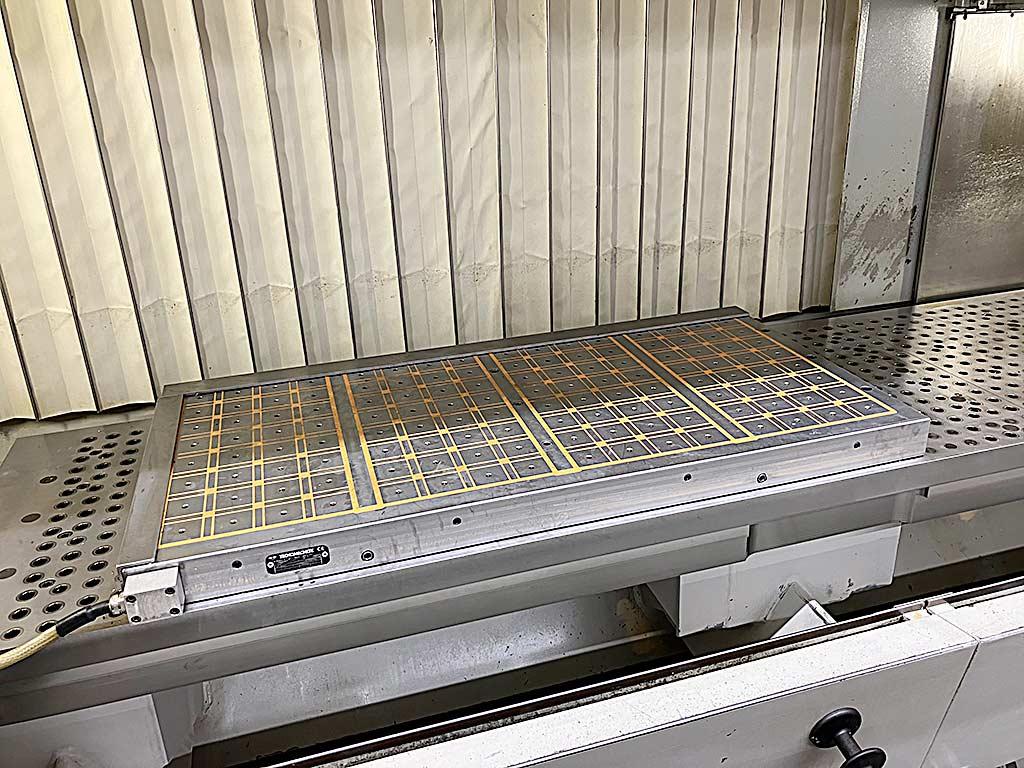

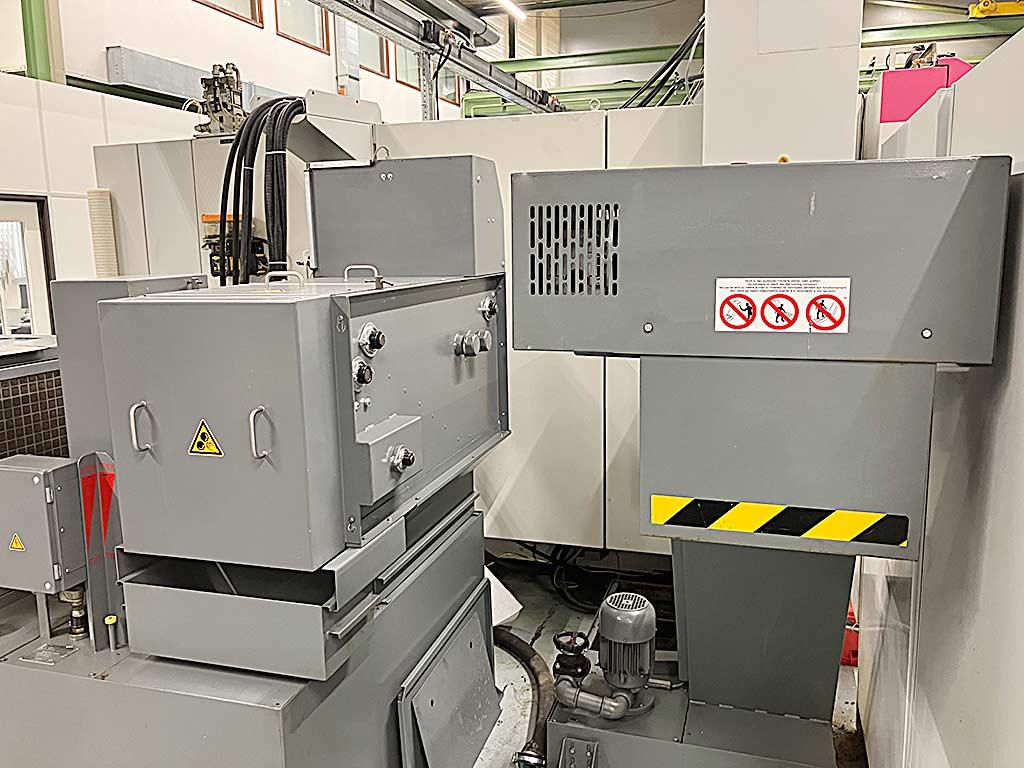

Travel X/Y/Z: 2200mm/520mm/510mm, rapid traverse X/Y/Z: 40m/min, number of spindles: 2, speed: 10000rpm, spindle power: 22kW, spindle bearing: 95mm, max. torque: 300Nm, tool holder: HSK A100, max. milling capacity: 500cm³, max. drilling diameter: 50mm, max. thread diameter: M36. Table dimensions X/Y: 2x 1250mm/250mm, spindle table distance min./max.: 250mm/760mm, max. workpiece weight: 2x 1500kg, max. tool length: 320mm, tool positions: 2x 21, tool clamping: 45000N. Dimensions X/Y/Z: approx. 4000mm/6500mm/3800mm, weight: approx. 11000kg, operating hours: 37771h. Including sheet metal technology SHA KMB 900, volume: 900l, and magnetic plate. Documentation available.
