Gravure Printing and Dip Roller System Chadwick (p+s Tapeten) Kombianlage

Germany

Description

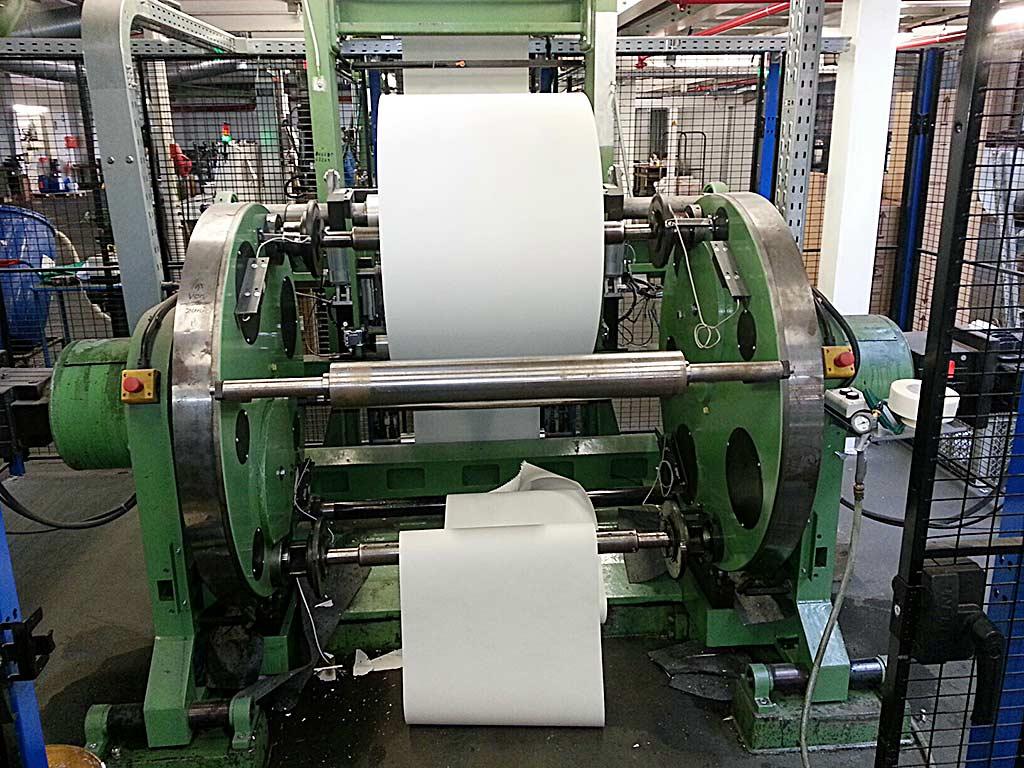

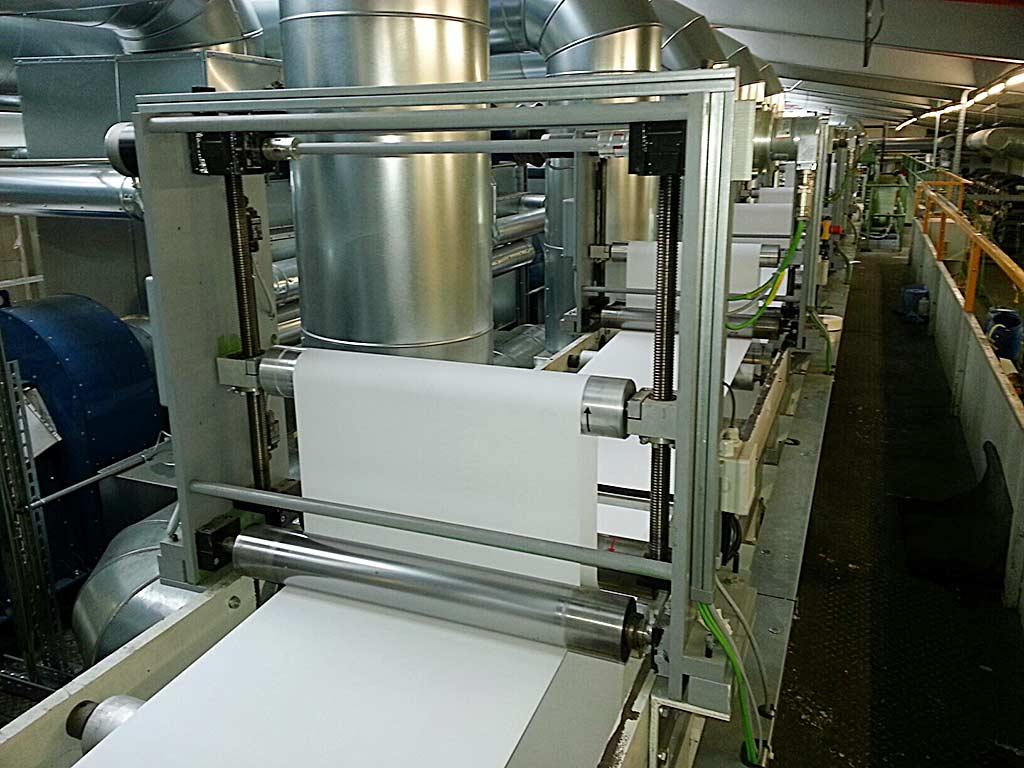

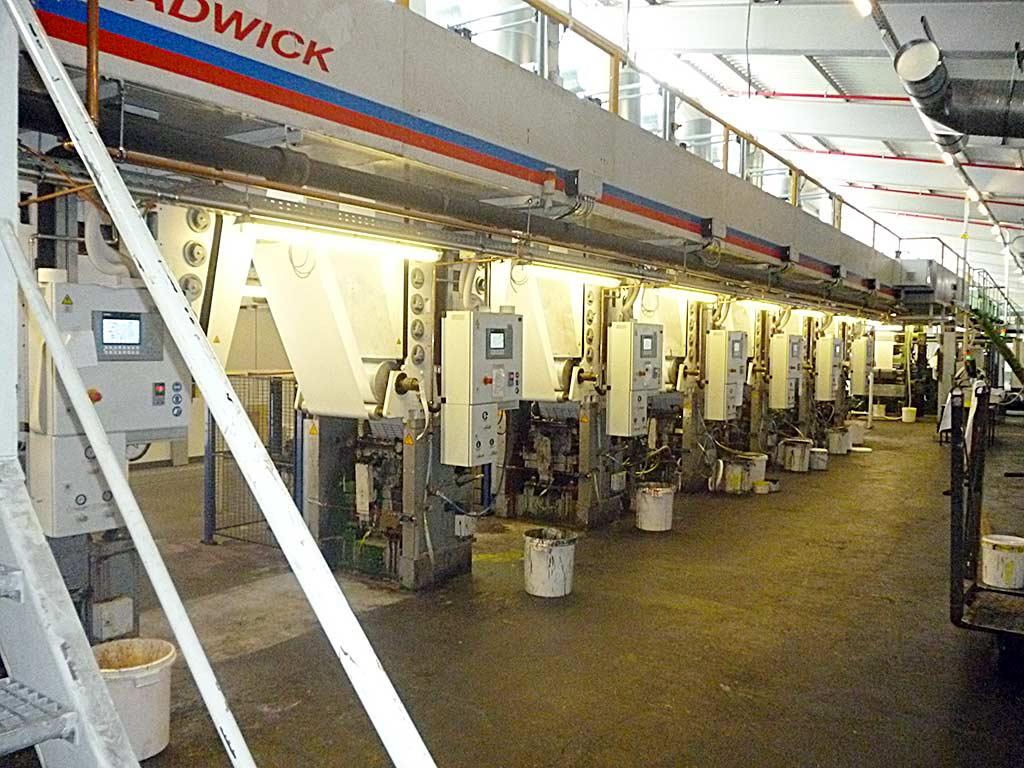

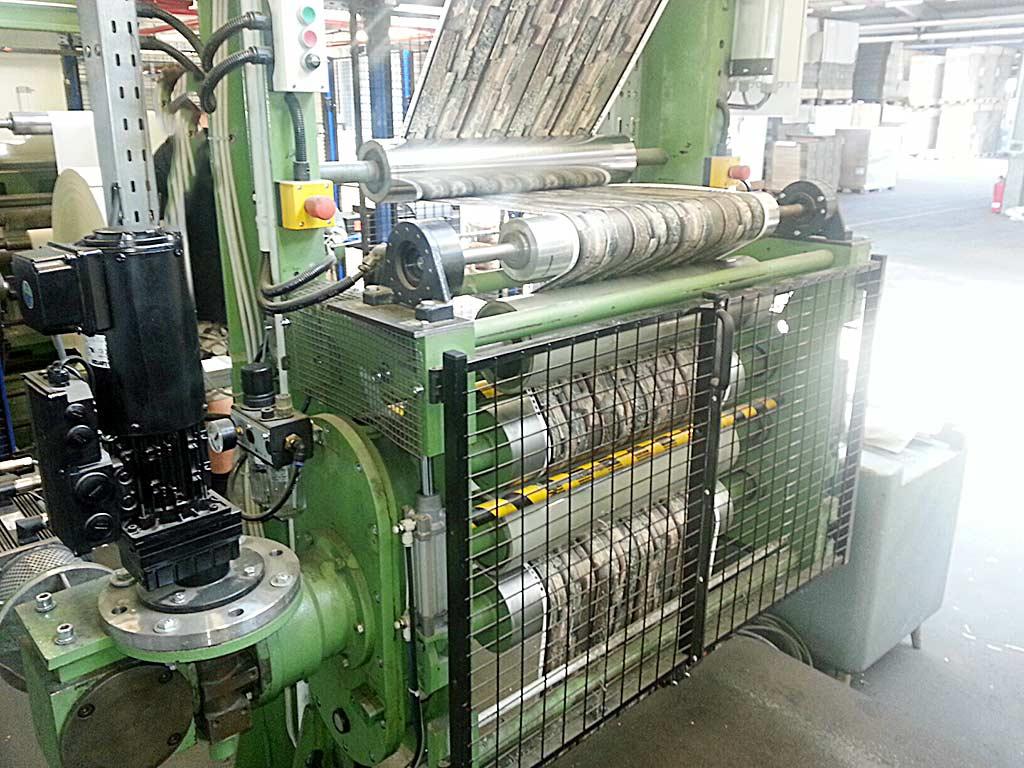

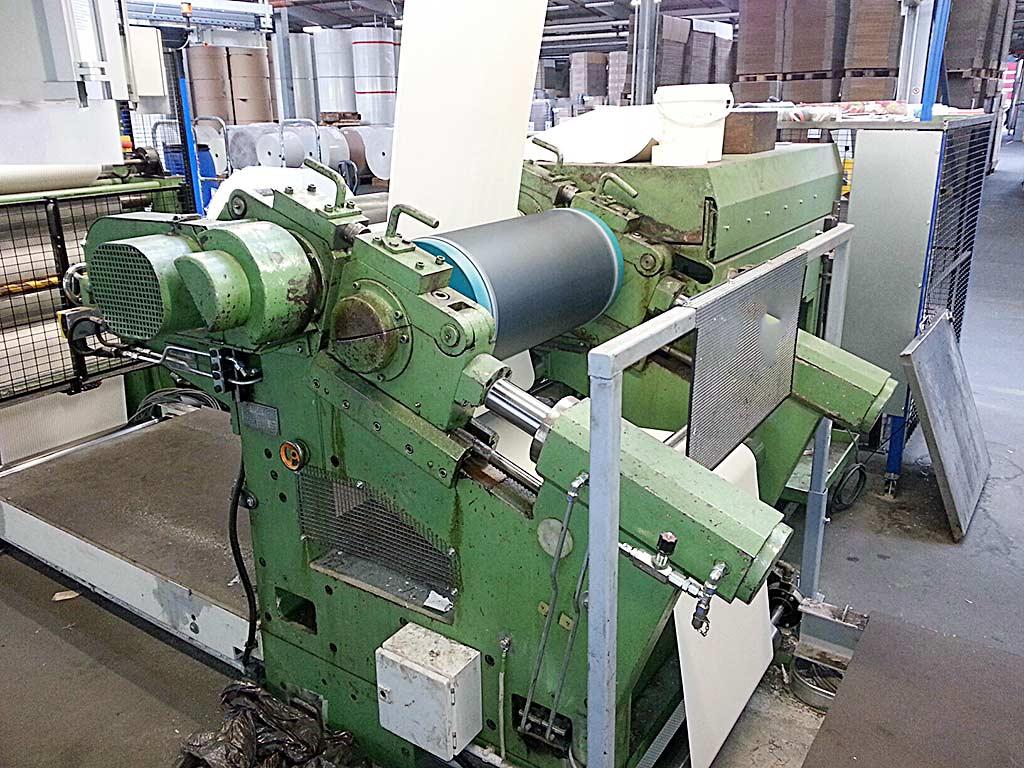

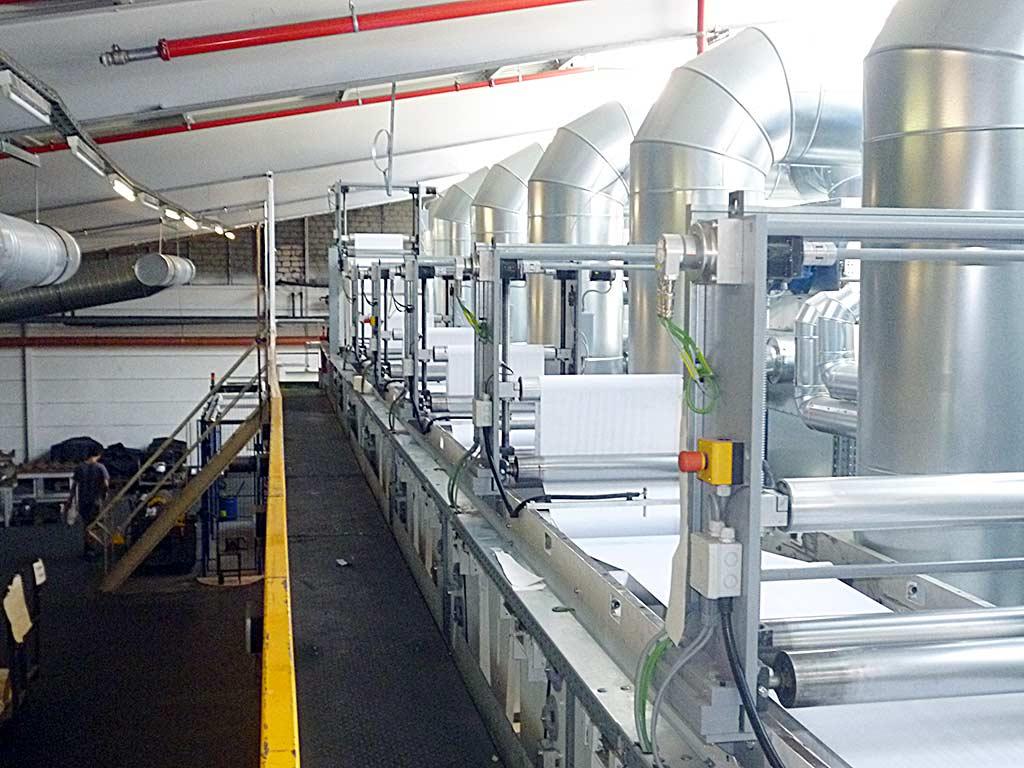

A complete combined gravure/immersion roller system for Chadwick wallpaper rolls is available. Working width: approx. 560mm, substrate: paper/fleece, gravure printing process: water-based, printing units: 7, technical output: 180m/min, realistic output: 140m/min, production output: approx. 13000-15000 rolls/24h. 1) Windmöller & Hölscher 892C unwinder, year of manufacture: approx. 1970s. 2) 7x Chadwick gravure printing units. 3) Under-paper unwinding and gluing station. 4) Lenze pulling station. 5) 2x Saueressig cold embossing stations, year of construction: 1986/1989. 6) 2-section continuous dryer, total length: approx. 8m. 7) Double roller cooling station. 8) Web monitoring system WV-Star 500, year of construction: 2016. 9) Aligning and cutting system Saueressig 200440Y, inscription: G9, year of construction: 1989. 10) Ritter automatic roller machine. 11) Turning station Saueressig 201482Y, year of construction: 1989. 12) Inclined conveyor belt, working width: approx. 1000mm, length: approx. 3000mm. 13) Centralized supply and exhaust air unit SitVerba, year of construction: 2016, supply air fans: 7, exhaust air fan: 1. The entire system was equipped with new direct drives, drive control, system control, control cabinets, piping construction, process air technology, etc. and completely overhauled in 2016. Documentation available. On-site inspection is possible.
