Fully Automatic X-Ray Inspection Anritsu XR75
Specifications
Germany
Description

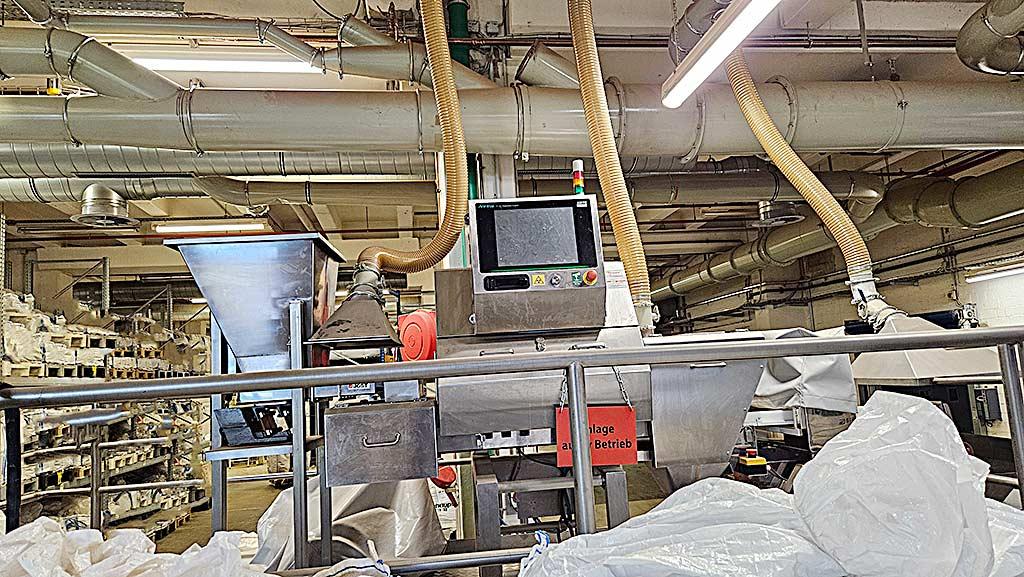

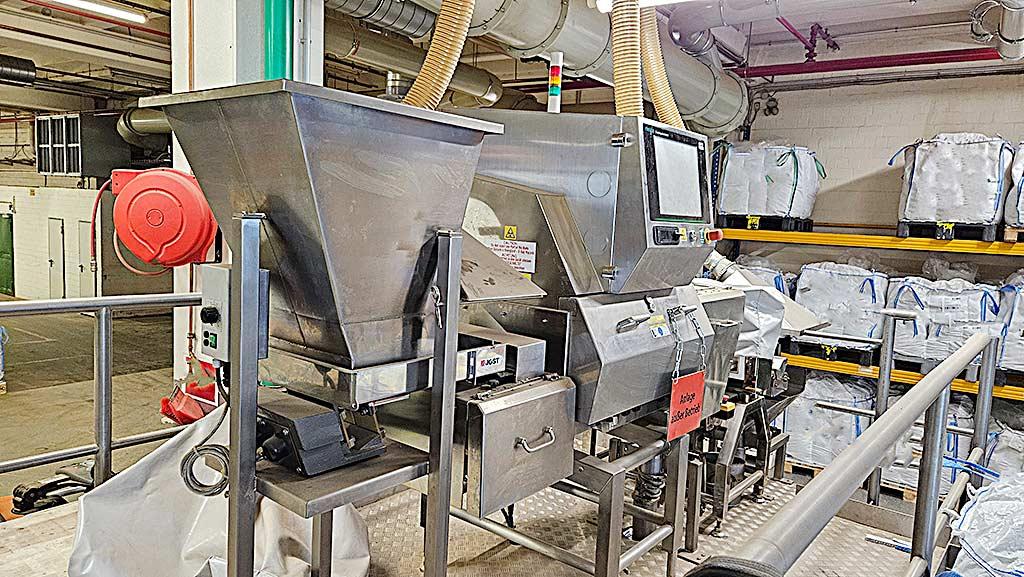

A complete Anritsu X-ray system for packaged products is available. 1) X-ray unit KXS7534AVCLE: Tube voltage: 30kV-80kV, tube current: 0.4mA-3.3mA, output power: 12W-100W, detection width/height: 390mm/220mm, belt width: 420mm, belt speed: 10m/60m/min, max. belt load: 5kg, ambient temperature: 0°C-35°C, relative humidity: 30%-85%, weight: approx. 300kg. 2) Metal separator KDS450ABW: working width: 450mm, working height: 95mm. 3) Metal separator KW466CW: max. product dimensions X/Y/Z: 350mm/200mm/30mm (100mm for regular interval), max. product weight: 500g, max. output: 80 products/min. 4) Material feed through Jöst FDL 350/60x500 vibratory feeder. Documentation available.
Additional Details
