Rolling Mill Bühler VRW 160/80x120

Germany

Description

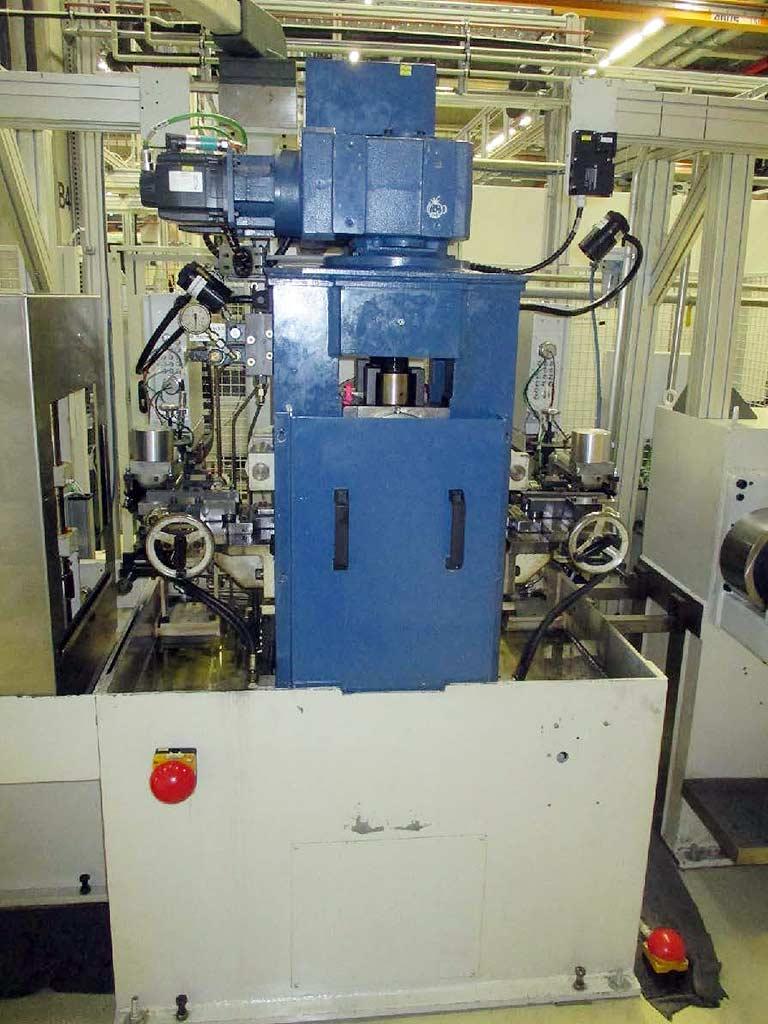

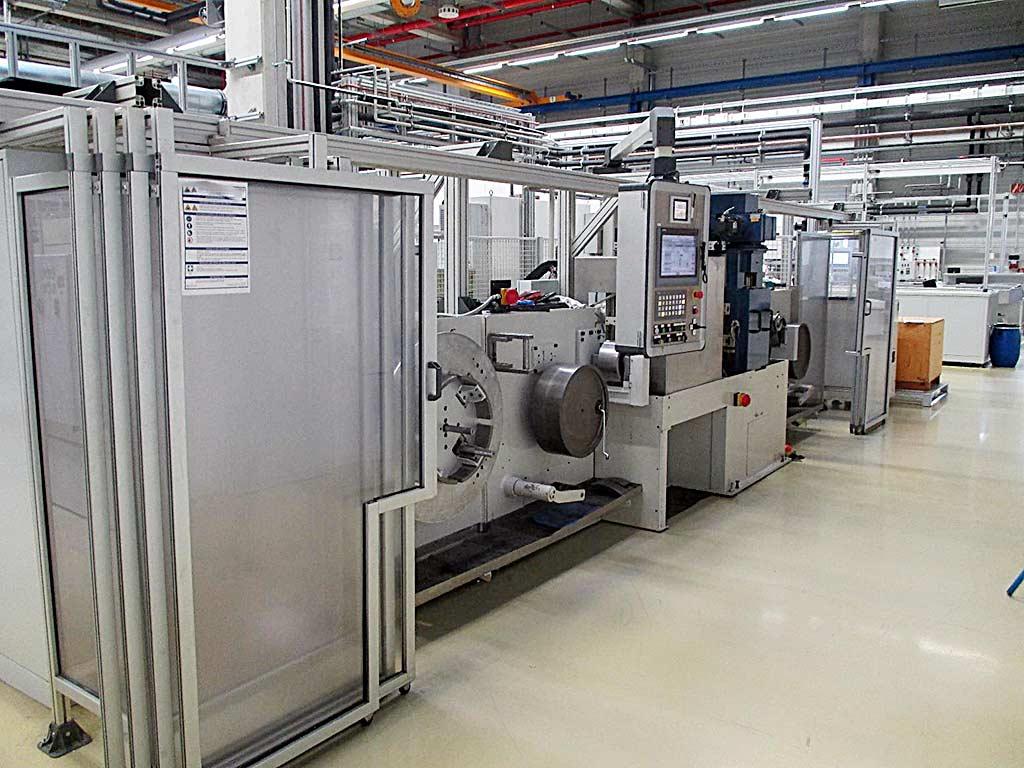

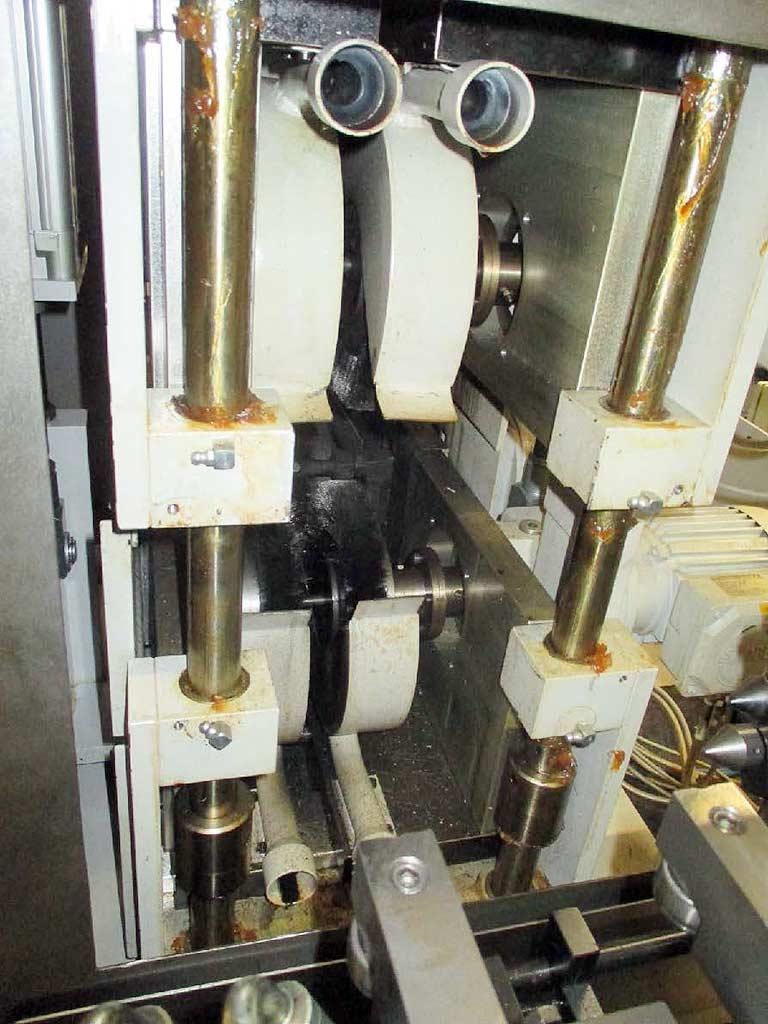

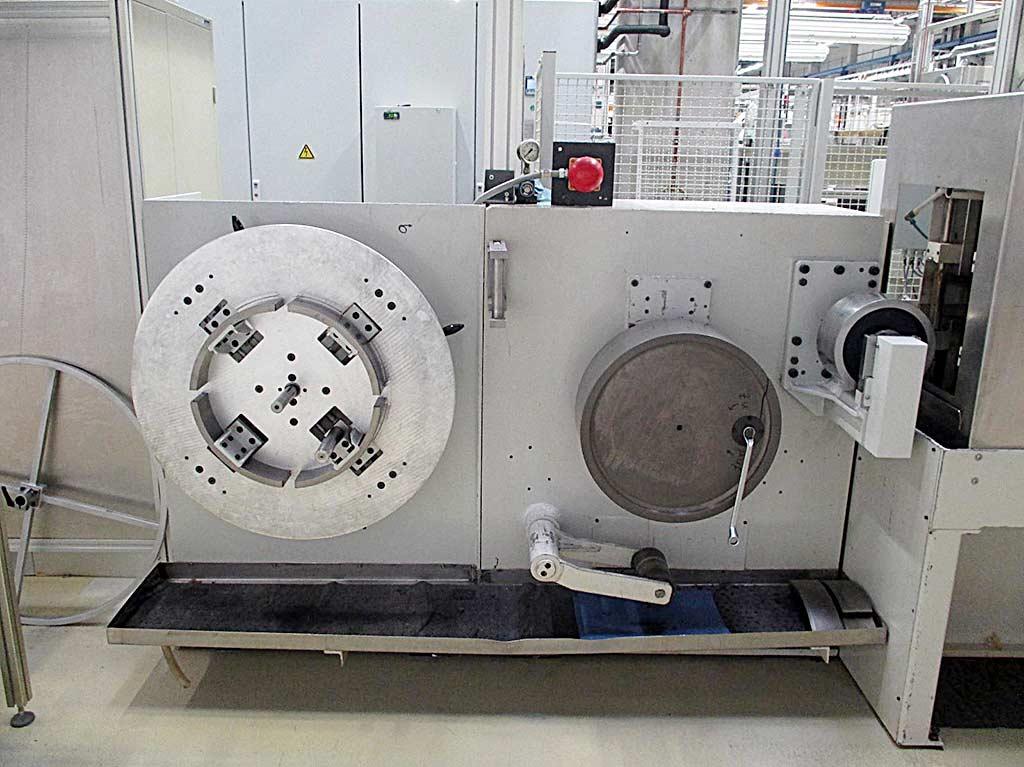

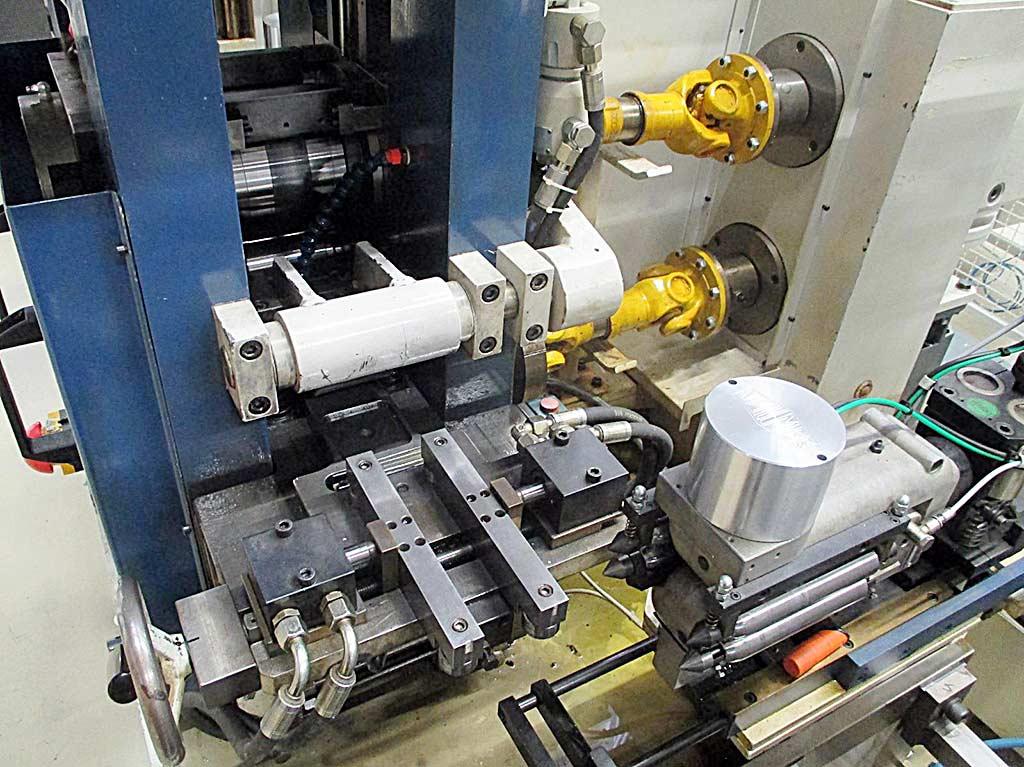

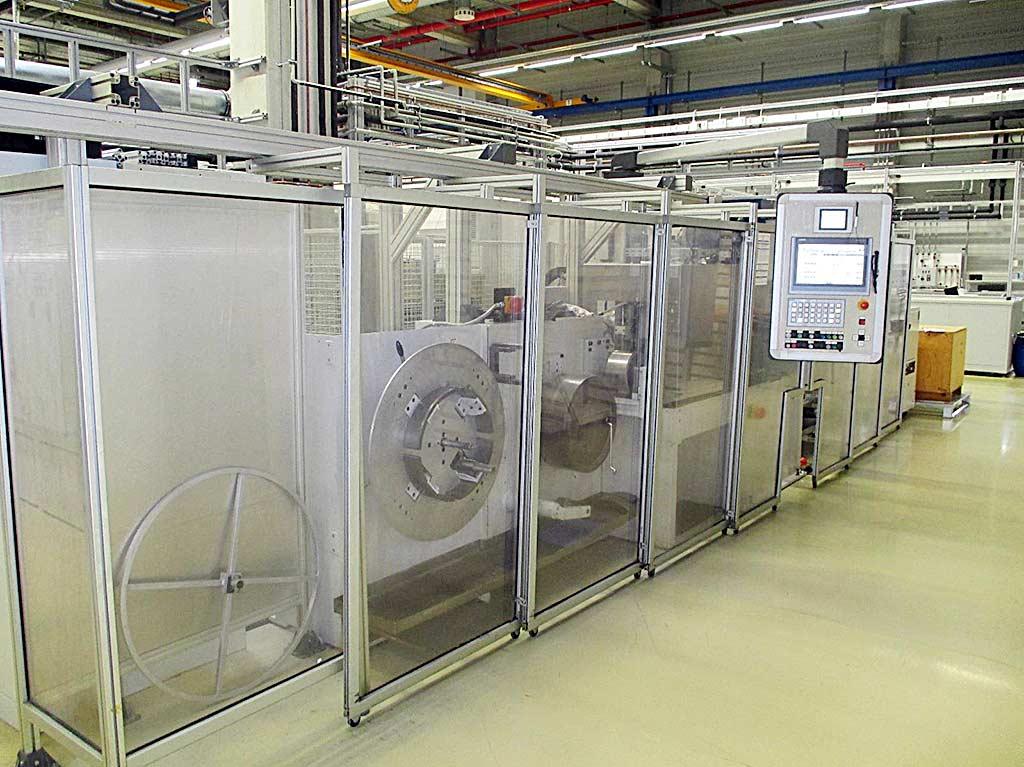

A Bühler reversing strip rolling mill retrofitted in 2020 is available. Working speed: 10m-50m/min, working direction: reversing. Quarto roll stand: backing roll diameter: 160mm, working roll diameter: 80mm, roll bale width: 80mm, drive power: 20kW, setting speed min./max.: 2mm/min/25mm/min, brush diameter: 125mm. Reversing coiler drum diameter: 500mm, reversing coiler belt tension: 1000N-8000N, reversing coiler power: 30kW, material rewinding spread range: 300mm-600mm, cooling lubricant system power: 35kW. Tolerance for measuring length 8mm/50mm: +/-0.5µm and +/-1.5µm, absolute thickness tolerance: +/-30µm. Material width min./max.: 20mm/60mm, max. material thickness: 2mm, coil inner diameter: 500mm, coil outer diameter: 750mm, max. coil weight at strip width 40mm: 75kg. Operating hours of the system since the retrofit (2020): 91h. Documentation available. On-site inspection is possible. Expected to be available from September 2025.
