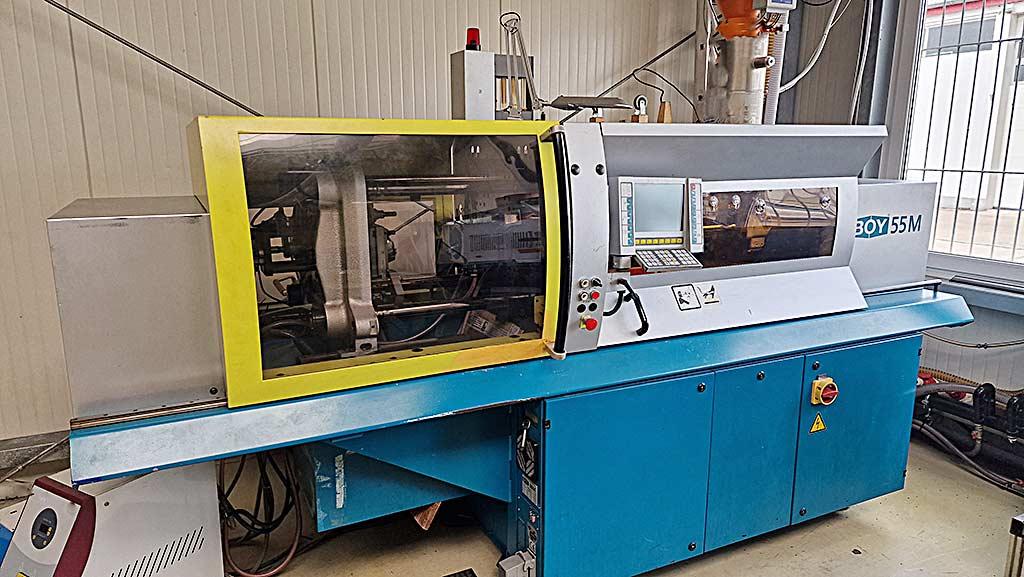

Injection Moulding Machine Boy 55M
Specifications
Germany
Description

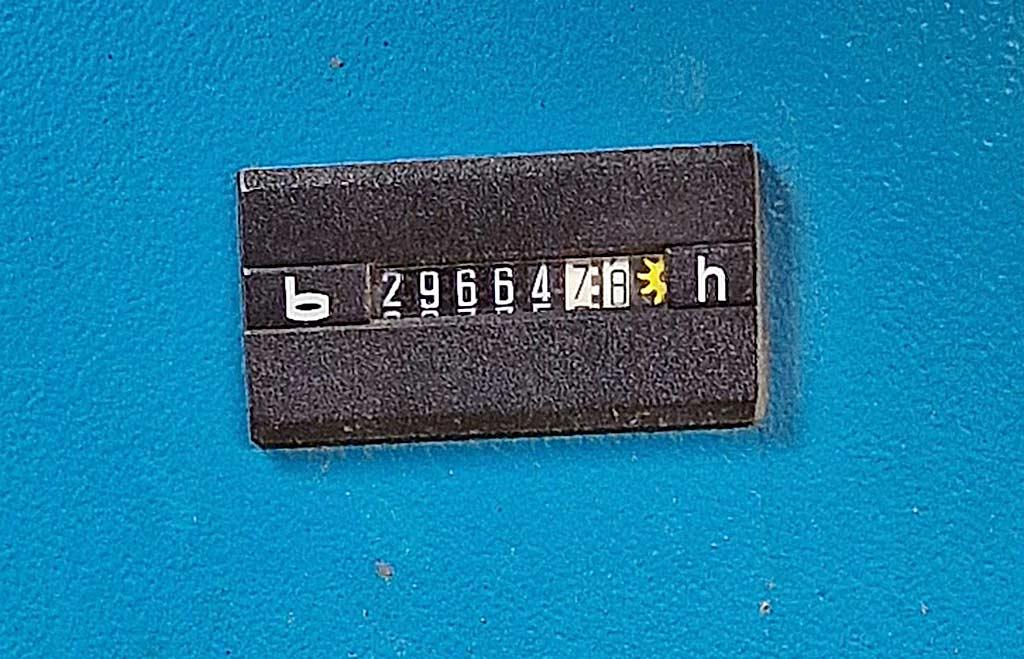

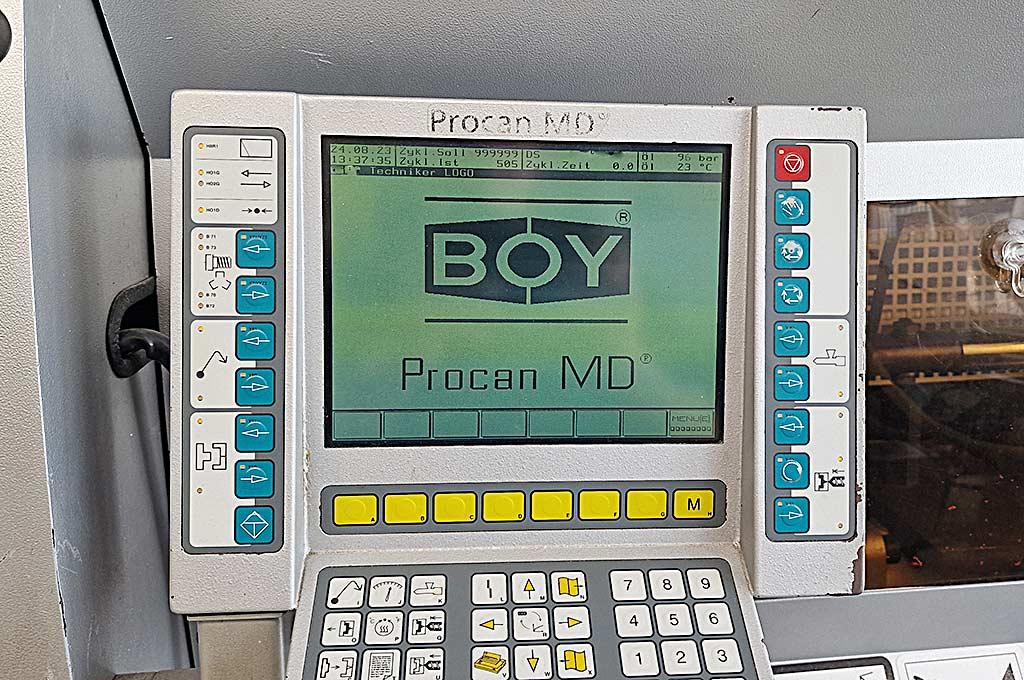

Clamping force: 550kN, screw diameter: 38mm, stroke volume: 196cm³, injection pressure: 2000bar, platen dimensions: 565mm/540mm, tie bar distance: 360mm/335mm. Workpiece height min./max.: 250mm/650mm, opening stroke: 400mm, max. platen distance: 1050mm, ejector stroke: 80mm, max. mold weight: 600kg. Dimensions X/Y/Z: approx. 3300mm/1200mm/2100mm, weight: approx. 2300kg, operating hours: 29664h, control: Procan MD. Robot interface Euromap 12 included.
Additional Details
